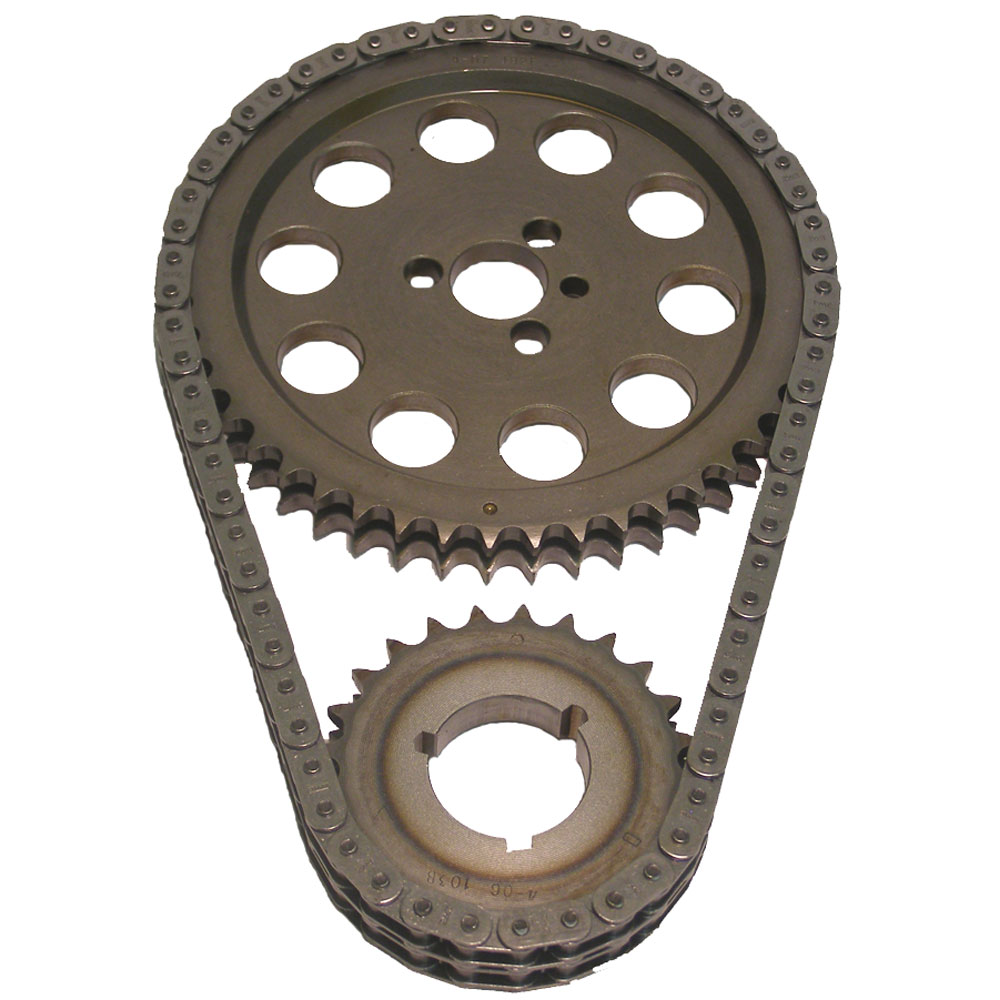

Cloyes Timing Set 9-3601X3; True Roller Double Roller for Chevy 348 to 409 W
$212.65
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Induction Heat-Treated, Billet Steel Sprockets
- 9 Keyway Crank Sprocket allows +/- 8 degrees
- Adjustability in 2 crank degree increments
- Premium True® Roller Chain with .250 Diameter Rollers
- Hand Matched to qualify both center distance and run-out
- Available in .005” and .010” undersize
- Hand Matched to qualify both center distance and run-out
- Available in .005” and .010” undersize
Product Description
Cloyes Race Billet True Roller Speed Sets are race ready. Sprockets are machined from premium billet steel on our state-of-the-art CNC equipment ensuring the highest quality product and eliminating inconsistencies found in other aftermarket sets. Both sprockets are induction hardened and oil-quenched using our in-house multi-stage heat treat process. Our Premium True Roller chain features superior strength with full roller action. Side plates are cut and shaved from high strength steel and heat-treated for maximum fatigue resistance.The .250 inch rollers are cold rolled and hardened to exacting standards increasing load and RPM capabilities. Race Billet sets are available with 3 or 9 keyway crank sprockets offering multiple valve timing settings. All of our Race Billet sets are hand-matched at our manufacturing facility to qualify center distance and run-out. This Cloyes exclusive ensures that you get the very best with every set.
Specifications
- Timing Set Series:
- True Roller
- Make:
- Chevy
- Engine:
- 348 to 409 W
- Chain Style:
- Double Roller
- Cam Gear Material:
- Cast Iron
- Adjustable Cam Gear:
- No
- Crank Gear Material:
- Billet Steel
- Adjustable Crank Gear:
- Yes
- Includes Torrington Bearing or Thrust Washer:
- No
- Includes Offset Bushings:
- No
- Includes Gaskets:
- No
- Includes Bolts/Studs:
- No
- Number Of Keyways:
- 3 Keyway
- Includes Chain Tensioner(s):
- No
- Includes Chain Guide(s):
- No
- Cam Gear Attachment:
- Bolt On
- Maximum Advance:
- 4 deg.
- Maximum Retard:
- 4 deg.
- Quantity:
- Sold As Kit
