Photo for Cloyes Timing Set 9-3600TX9; Premium Billet True Roller Double Roller for 1955 to 1996 Chevy 262 to 400

Cloyes Timing Set 9-3600TX9; Premium Billet True Roller Double Roller for 1955 to 1996 Chevy 262 to 400

$139.96

Part #: 9-3600TX9

Brand: Cloyes

UPC: 750385703347

Estimated Ship Date: Today

Specifications Alternative Parts

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Induction Heat-Treated, Billet Steel Sprockets
  • 9 Keyway Crank Sprocket allows +/- 8 degrees
  • Adjustability in 2 crank degree increments
  • Premium True Roller Chain with .250 Diameter Rollers
  • Hand Matched to qualify both center distance and run-out
  • Available in .005” and .010” undersize

Product Description

Cloyes Race Billet True Roller Speed Sets are race ready. Sprockets are machined from premium billet steel on our state-of-the-art CNC equipment ensuring the highest quality product and eliminating inconsistencies found in other aftermarket sets. Both sprockets are induction hardened and oil-quenched using our in-house multi-stage heat treat process. Our Premium True Roller chain features superior strength with full roller action. Side plates are cut and shaved from high strength steel and heat-treated for maximum fatigue resistance.The .250 inch rollers are cold rolled and hardened to exacting standards increasing load and RPM capabilities. Race Billet sets are available with 3 or 9 keyway crank sprockets offering multiple valve timing settings. All of our Race Billet sets are hand-matched at our manufacturing facility to qualify center distance and run-out. This Cloyes exclusive ensures that you get the very best with every set.

Specifications

Timing Set Series:
Premium Billet True Roller
Year:
1955 to 1996
Make:
Chevy
Engine:
262 to 400
Chain Style:
Double Roller
Cam Gear Material:
Billet Steel
Adjustable Cam Gear:
No
Crank Gear Material:
Billet Steel
Adjustable Crank Gear:
Yes
Includes Torrington Bearing or Thrust Washer:
Yes
Includes Offset Bushings:
No
Includes Gaskets:
No
Includes Bolts/Studs:
No
Number Of Keyways:
9 Keyway
Includes Chain Tensioner(s):
No
Includes Chain Guide(s):
No
Cam Gear Attachment:
Bolt On
Maximum Advance:
8 deg.
Maximum Retard:
8 deg.
Quantity:
Sold As Kit

Alternative Parts

Renegade Racing Components Timing Set 9-3600T9; Pro Series Double Roller 0.250 in. for Chevy 262 to 400

Renegade Racing Components Timing Set 9-3600T9; Pro Series Double Roller 0.250 in. for Chevy 262 to 400

REN9-3600T9

$98.48

Estimated Ship Date: Today

JP Performance Timing Set JP5981; Double Roller for Chevy 262 to 400
JP Performance Timing Set JP5981; Double Roller for Chevy 262 to 400

JP Performance Timing Set JP5981; Double Roller for Chevy 262 to 400

JPPJP5981

$99.57

Estimated Ship Date: Today

SA Gear Timing Set 78100-9R; Rolling Timing Set Rolon 0.250 in. for Chevy 262 to 400
SA Gear Timing Set 78100-9R; Rolling Timing Set Rolon 0.250 in. for Chevy 262 to 400

SA Gear Timing Set 78100-9R; Rolling Timing Set Rolon 0.250 in. for Chevy 262 to 400

SAG78100-9R

$57.85

Estimated Ship Date: This part is unavailable with no ETA

Renegade Racing Components Timing Set 9-3100T9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400
Renegade Racing Components Timing Set 9-3100T9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400

Renegade Racing Components Timing Set 9-3100T9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400

REN9-3100T9

$74.20

Estimated Ship Date: Today

Renegade Racing Components Timing Set 9-3100-9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400
Renegade Racing Components Timing Set 9-3100-9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400

Renegade Racing Components Timing Set 9-3100-9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400

REN9-3100-9

$56.90

Estimated Ship Date: Today

Renegade Racing Components Timing Set 9-3600W9; Pro Series Double Roller 0.250 in. for Chevy 262 to 400
Renegade Racing Components Timing Set 9-3600W9; Pro Series Double Roller 0.250 in. for Chevy 262 to 400

Renegade Racing Components Timing Set 9-3600W9; Pro Series Double Roller 0.250 in. for Chevy 262 to 400

REN9-3600W9

$105.88

Estimated Ship Date: Today

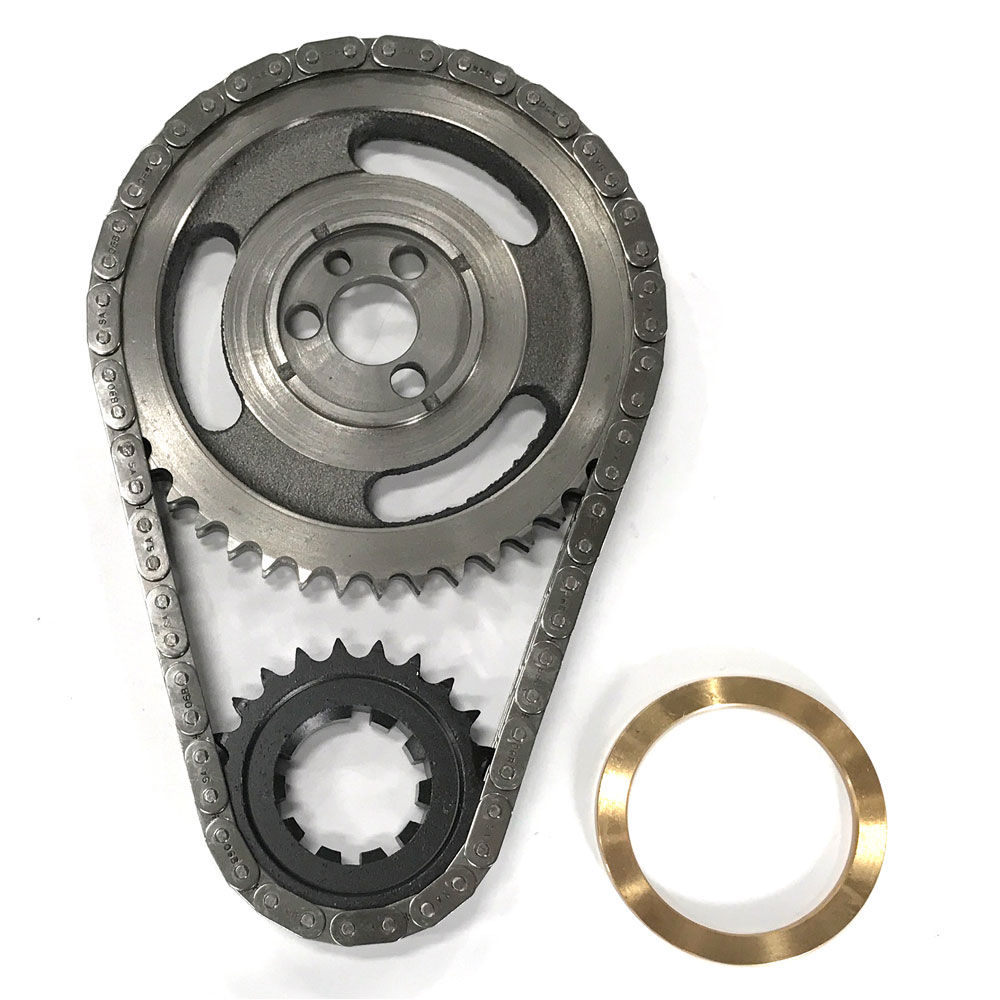

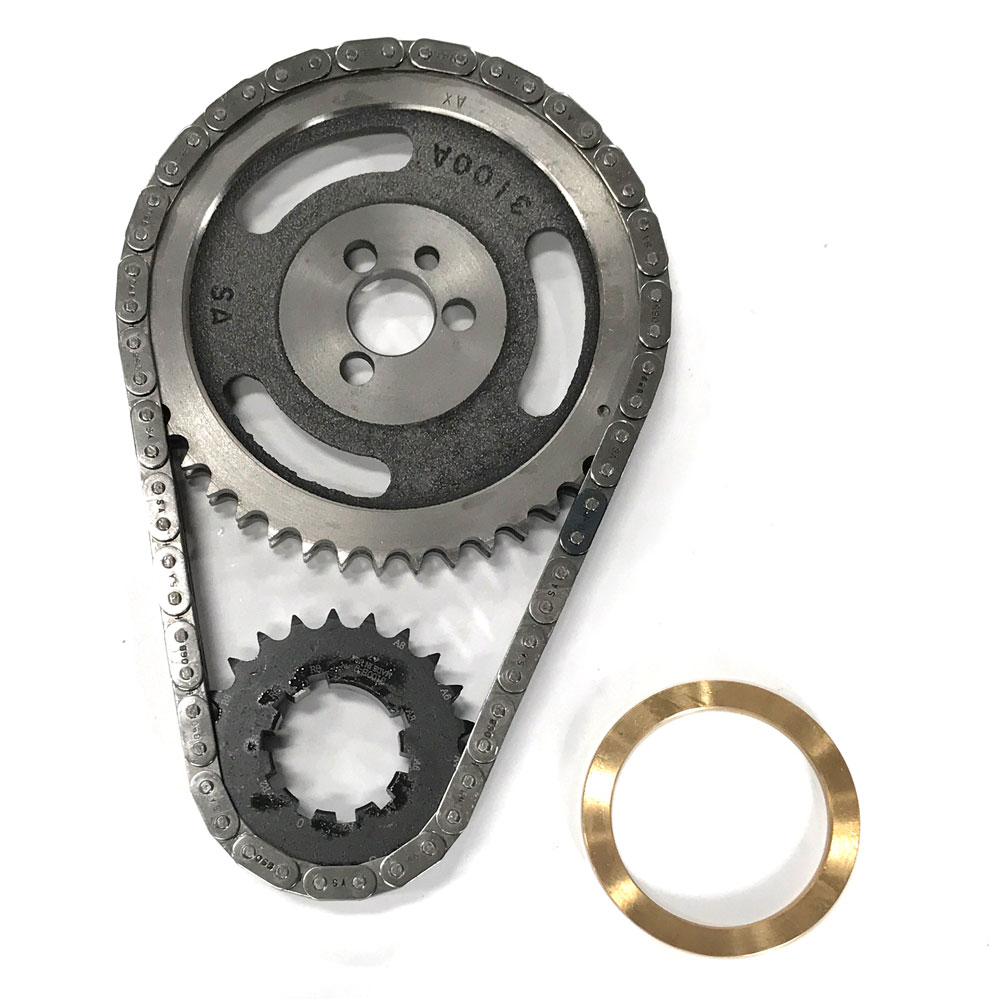

Renegade Racing Components Timing Set 9-3100W9; Sportsman Double Roller 0.250 in. for Chevy 262 to 400
