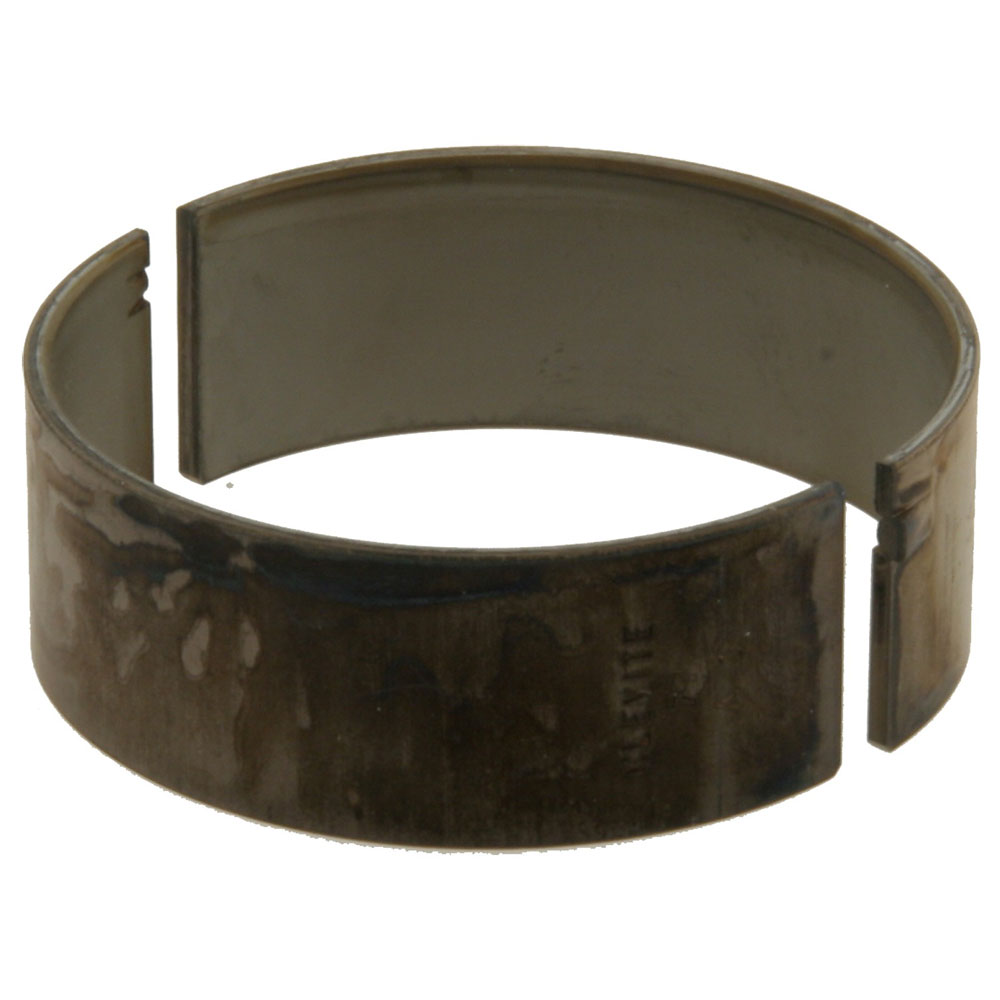

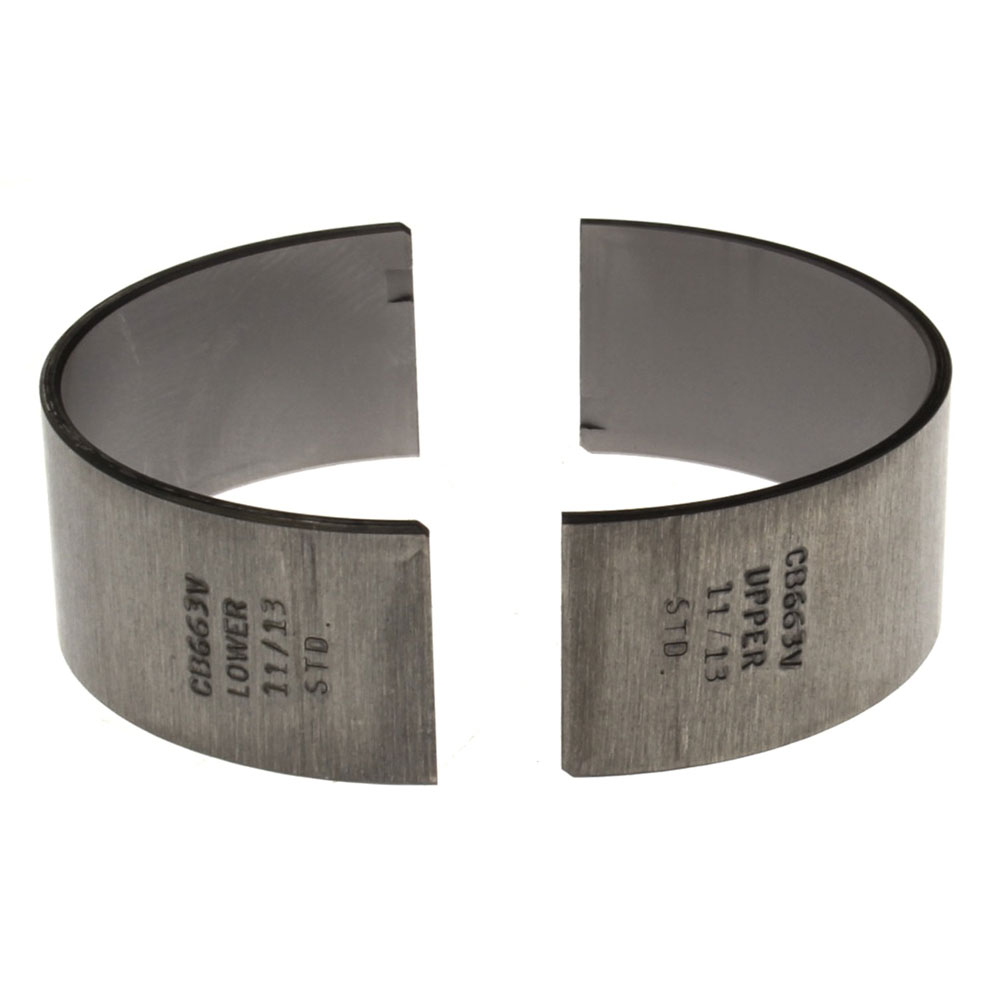

Clevite Connecting Rod Bearing Pair CB-663HN-10; H Series Performance 0.010 in. 2.100 in. for Chevy 262 to 400
$15.83
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Seizure Resistance - Clevite TriMetal™ bearings have as much as 40% better seizure resistance than competitors' engine bearings.
- Load Capacity - Clevite TriMetal™ bearings can withstand over 60% higher loads for extended periods compared to competitor bearings.
- Embedability & Conformability - The overlay on a TriMetal™ bearing offers a superior surface for forgiveness, offering additional protection that can be extremely beneficial in an engine that is poorly maintained.
- Durability - Clevite TriMetal™ bearings not only exceed light vehicle OE durability requirements of 150,000 miles, they also exceed heavy vehicle OE durability requirements of 300,000 miles.
Product Description
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Specifications
- Connecting Rod Bearing Pair Series:
- H Series
- Make:
- Chevy
- Engine:
- 262 to 400
- Bearing Undersize:
- 0.010 in.
- Usage:
- Performance
- Construction:
- Tri Metal
- Backing Layer Material:
- Steel
- Bearing Lining or Intermediate Material:
- Copper Lead
- Coated:
- No
- Chamfered:
- No
- Narrowed:
- Yes
- Grooved:
- No
- Bearing Width:
- 0.842 in.
- Standard Bearing Thickness (Without O/S):
- 0.062 in.
- Standard Crank Pin Diameter (Without O/S):
- 2.100 in.
- Standard Housing Diameter (Without O/S):
- 2.225 in.
- Includes Dowel Pin Hole:
- No
- Notes:
- Large Journal
- Quantity:
- Sold As Each
