Centerforce Clutch Pressure Plate and Disc Set DF023500; Dual Friction Diaphragm Nodular Iron for 2011 to 2017 Ford Mustang 5.0L
$629.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 11" Diameter
Product Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Specifications
- Clutch Pressure Plate and Disc Set Series:
- Dual Friction
- Year:
- 2011 to 2017
- Make:
- Ford
- Model:
- Mustang
- Engine:
- 5.0L
- Pressure Plate Style:
- Diaphragm
- Pressure Plate Material:
- Nodular Iron
- With Centrifugal Weights:
- Yes
- Disc Style:
- Full Faced and Segmented; Sprung Hub
- Disc Diameter:
- 11.000 in.
- Disc Material:
- Organic, Carbon Composite
- Input Splines:
- 23 Spline
- Input Shaft Diameter:
- 1.000 in.
- Clutch Bolt Pattern:
- Ford 11 in. Mustang 4.6L MOD ; Type 2 Bolt Pattern, Center-to-Center: 12-43/64 in., 10mm-1.5 Bolts; With Dowels
- Includes Flywheel:
- No
- Includes Throwout Bearing:
- No
- SFI Approved:
- No
- Torque Capacity:
- 687 lbs/ft.
- Notes:

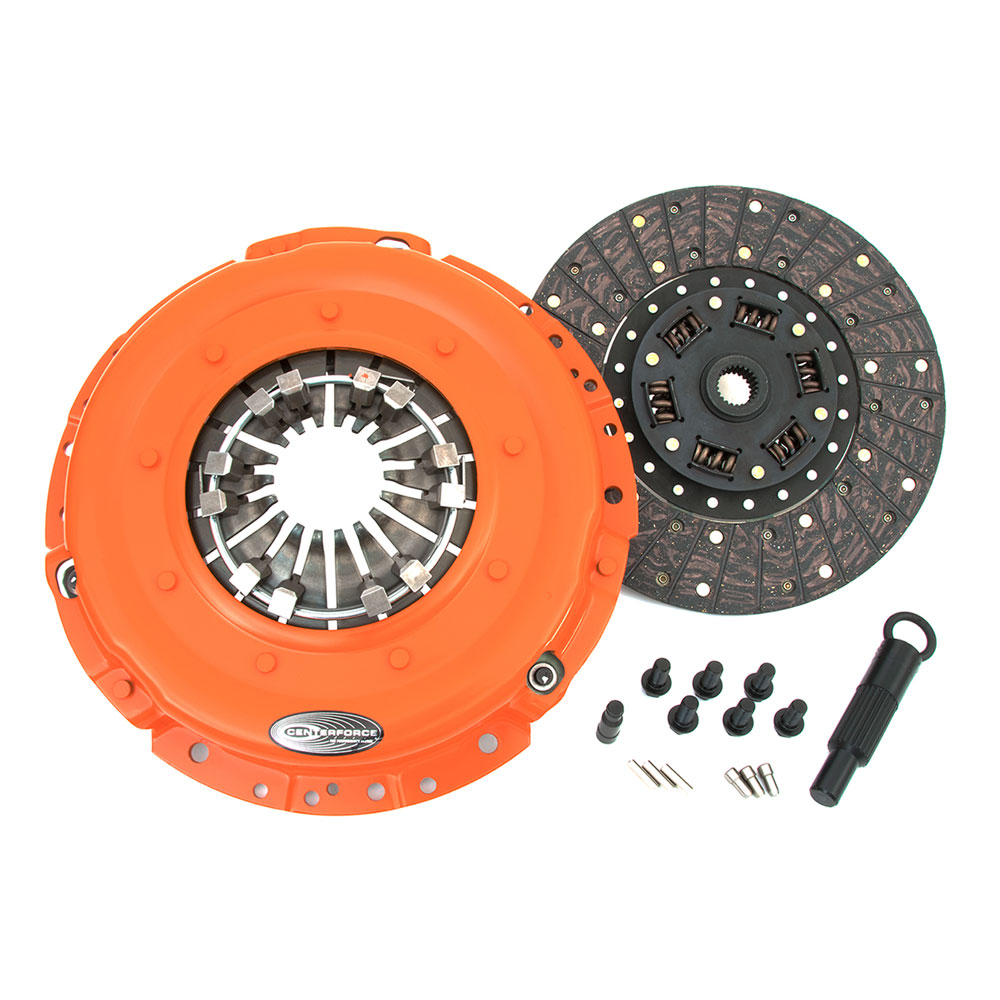

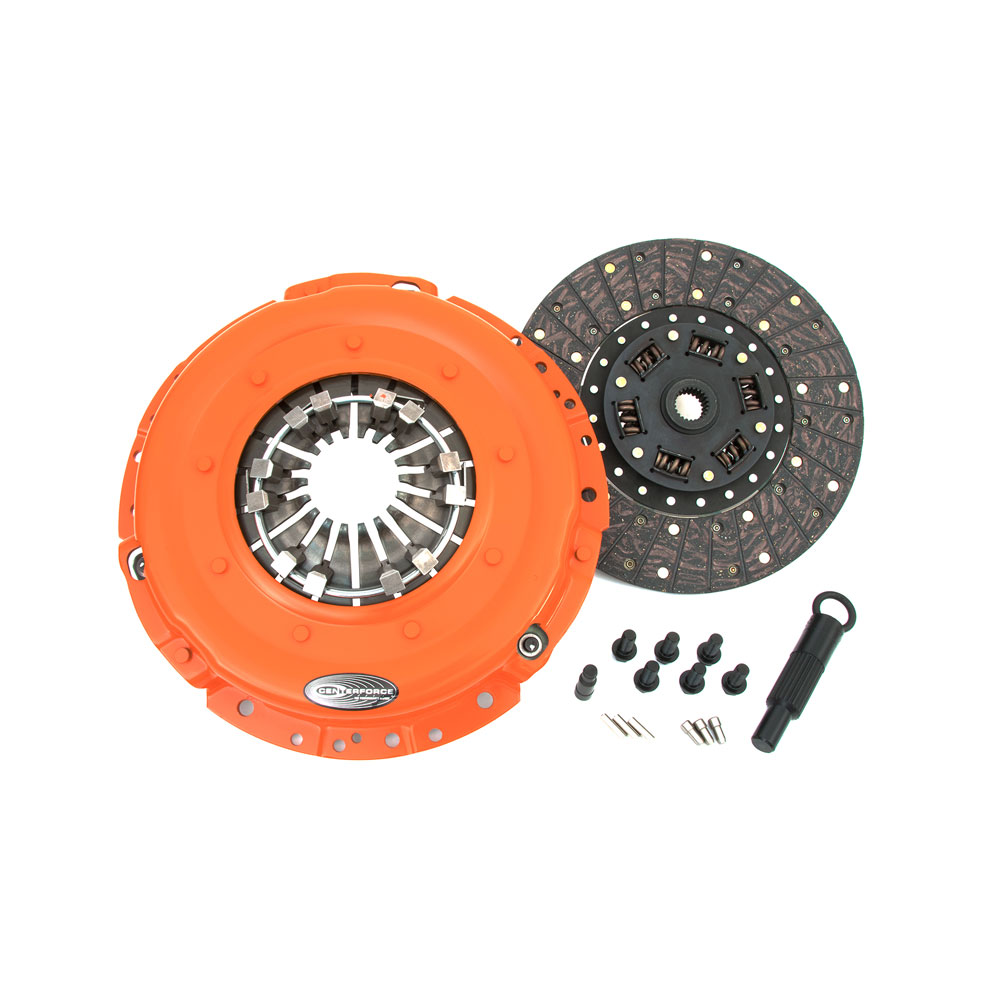

- Kit Contains: Pressure Plate, Disc, Bolts, Dowel Pins, Bleedkit, Alignment Tool.
- Quantity:
- Sold As Kit
