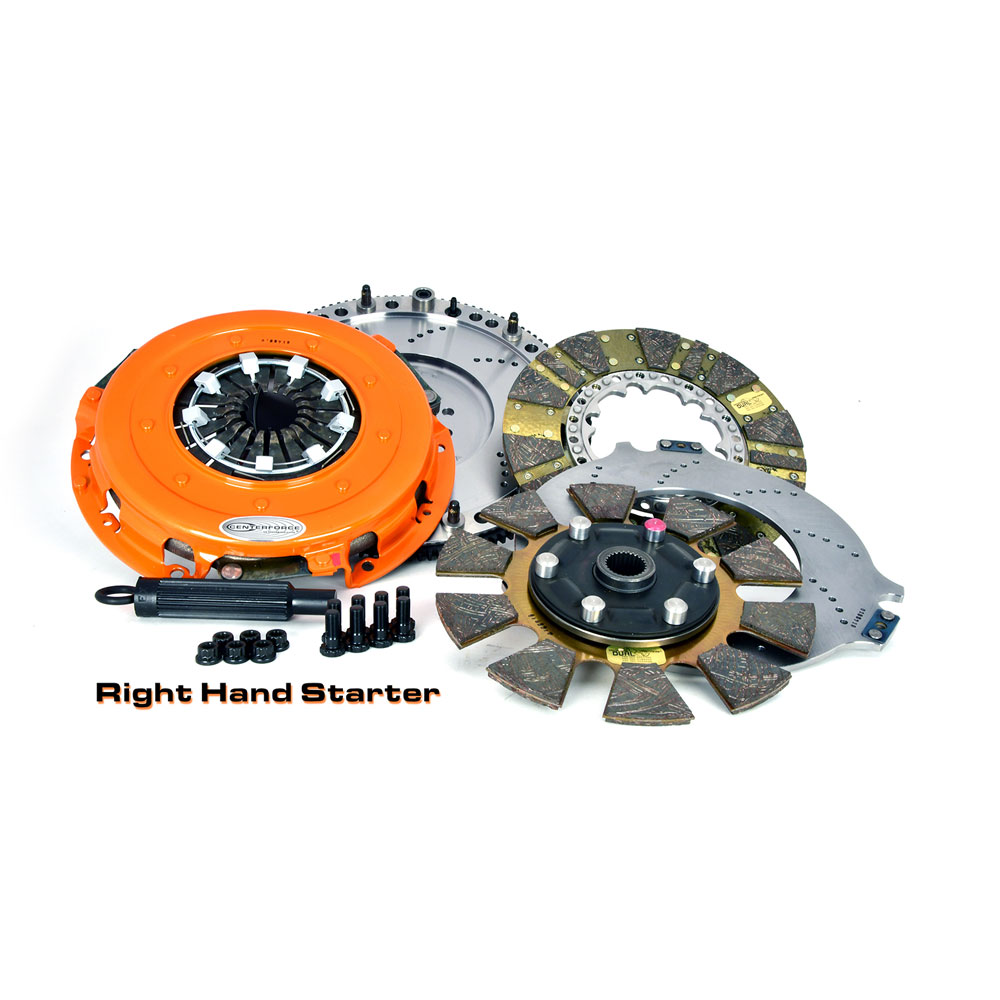

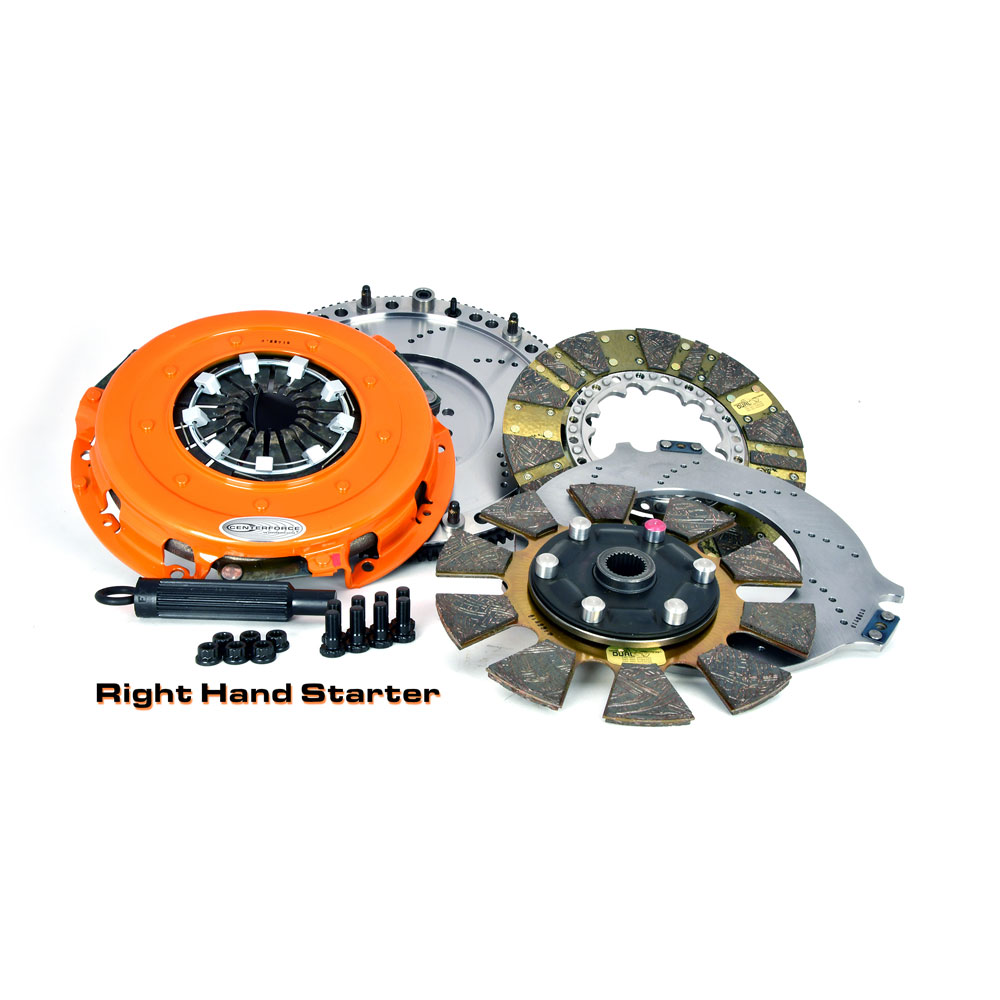

Centerforce Clutch and Flywheel Kit 413613099; Nodular Iron

$1,739.95

Part #: 413613099

Brand: Centerforce

UPC: 788442035643

Estimated Ship Date: This part is temporarily unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Drivers Side Aftermarket Starter

Product Description

IMPORTANT NOTE! This DYAD DS Assembly is a Low Profile Assembly for use with a Gen III Hemi engines using an aftermarket Bellhousing/transission with a Left Drivers Side Aftermarket Starter. The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications

Pressure Plate Material:
Nodular Iron
With Centrifugal Weights:
Yes
Disc Style:
Dual Disc, Sprung Hub
Disc Diameter:
10.400 in.
Disc Material:
Organic
Input Splines:
26 Spline
Input Shaft Diameter:
1.125 in.
Flywheel Material:
Billet Steel
Flywheel Tooth Count:
130 Tooth

Videos

Tech Resources

  • 413613099.PDF
