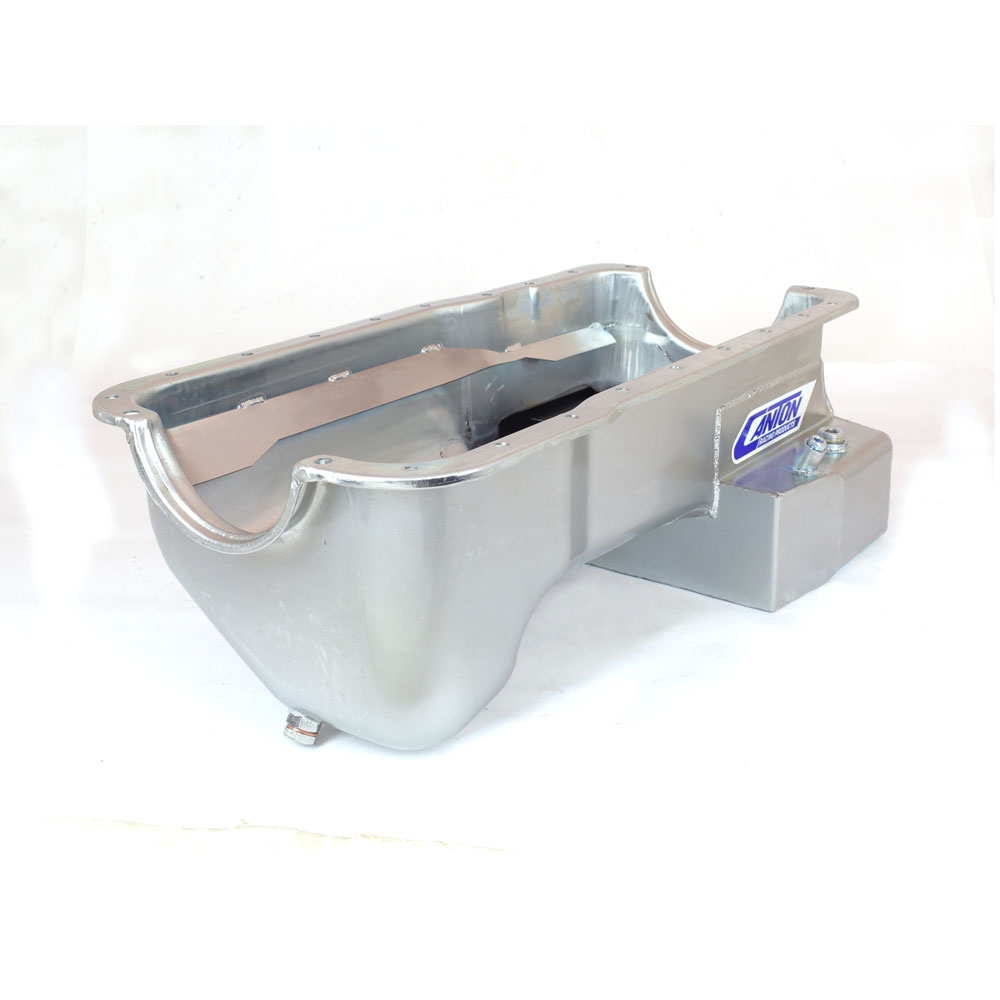

Canton Oil Pan 15-694; Street, Strip Wet Sump 7 Quart Silver Plating for Ford 351W
$555.00
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 7 qt System Capacity
- Retains Stock Depth

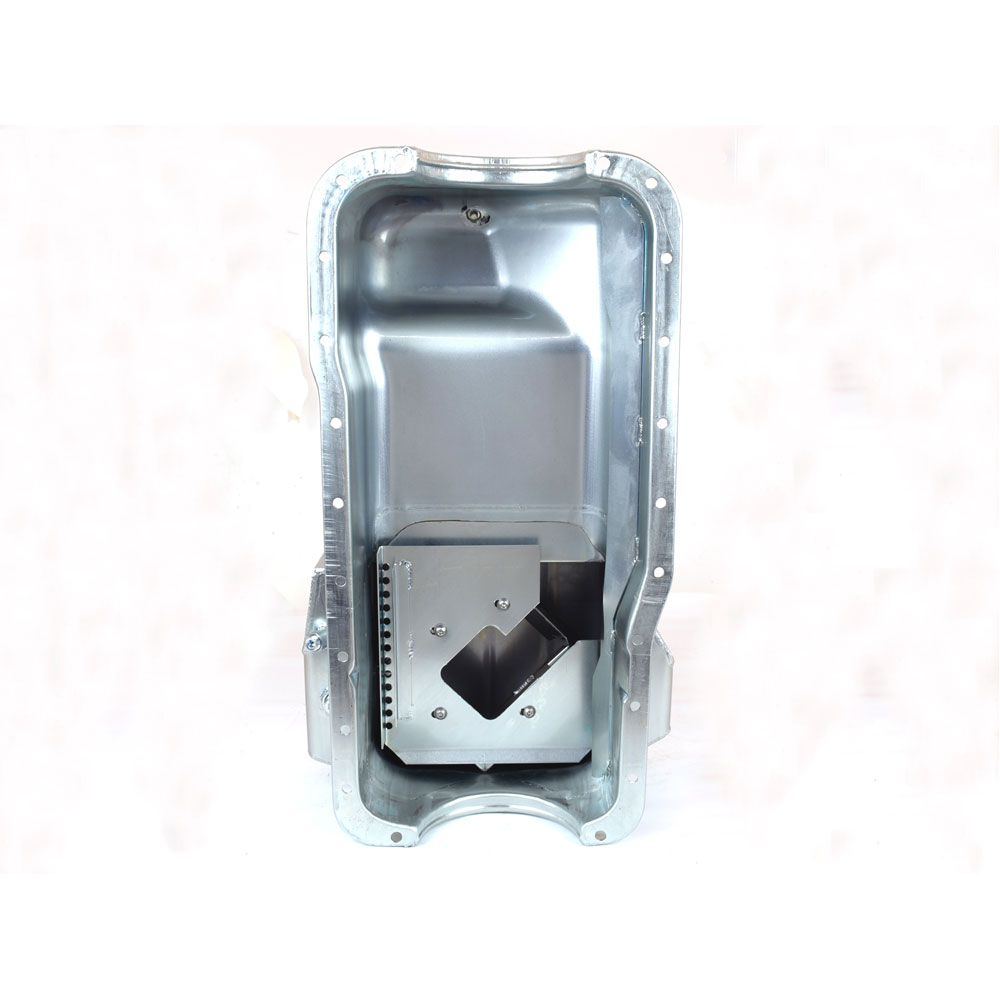

- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Product Description

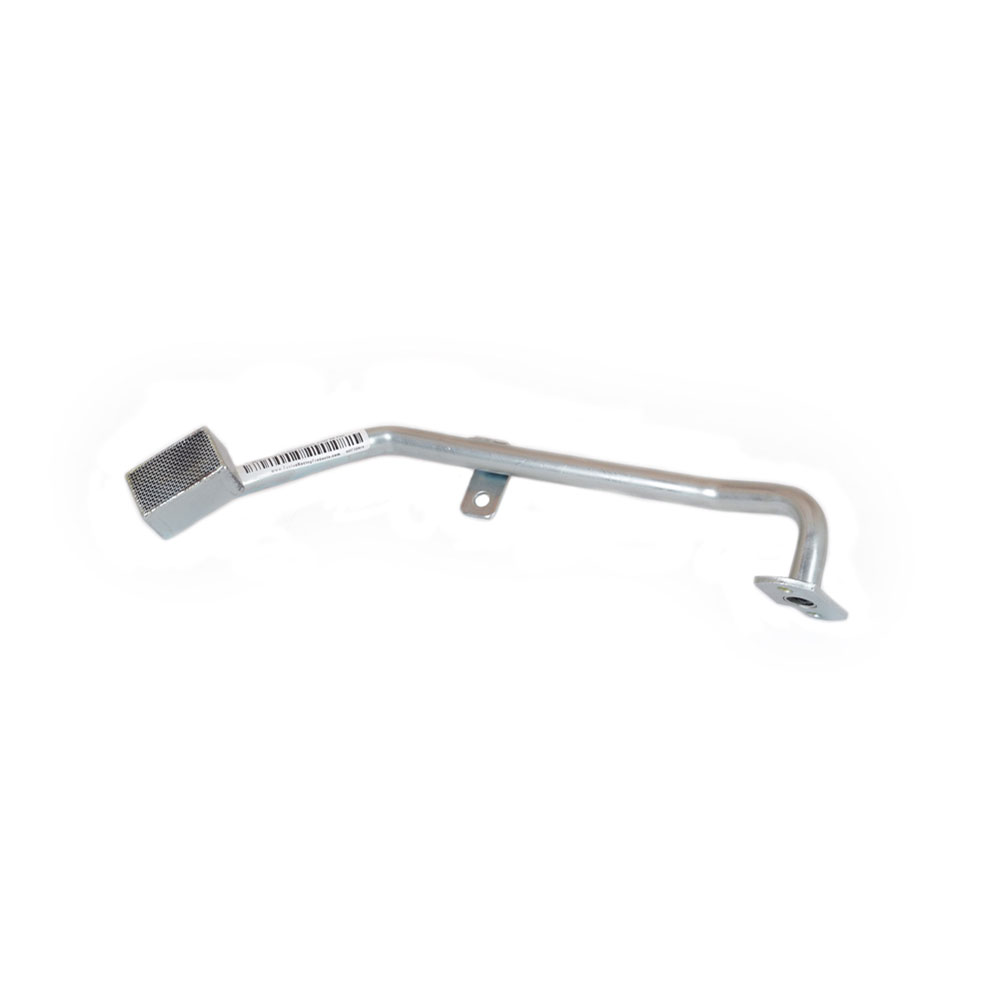

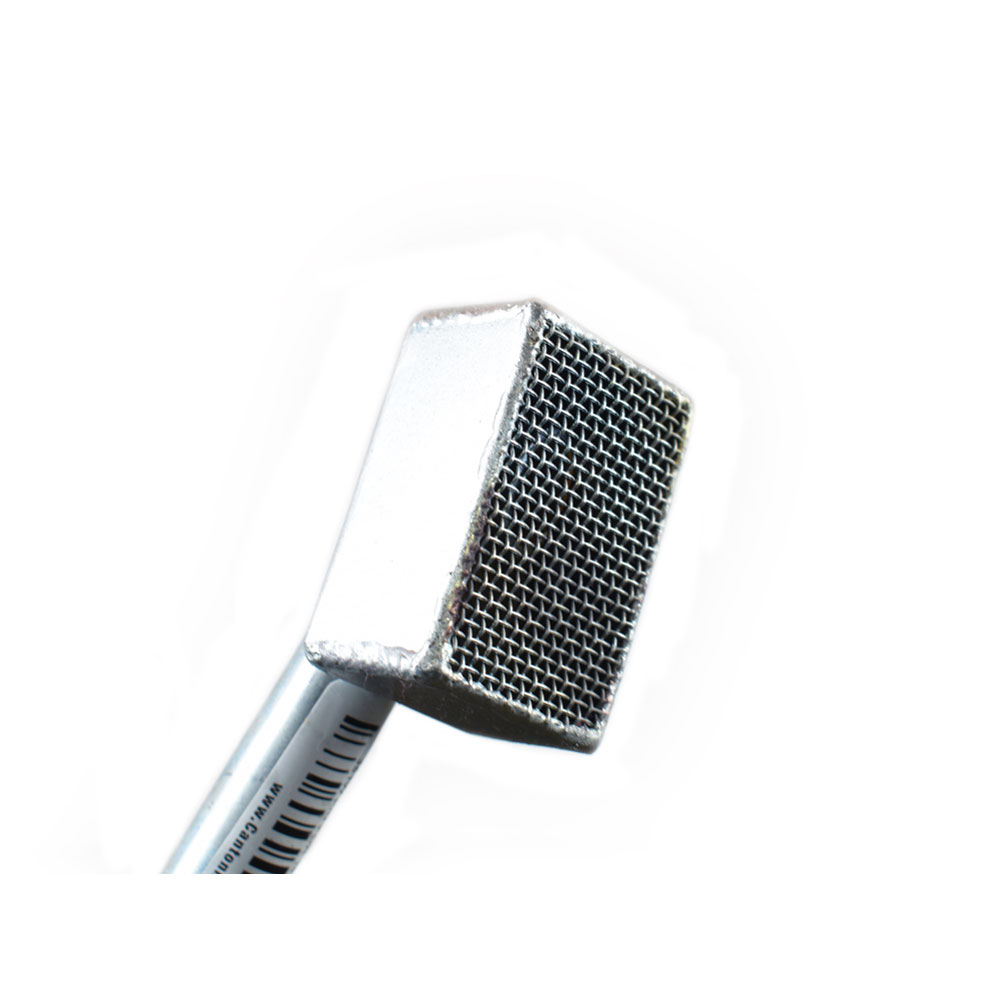

This "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-695 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Specifications
- Oil Pan Series:
- Street, Strip
- Make:
- Ford
- Engine:
- 351W
- Pan Style:
- Wet Sump
- Dip Stick Location:
- Driver Side
- Capacity:
- 7 Quart
- Depth:
- 7.500 in.
- Material:
- Steel
- Finish:
- Silver Plating
- Kick Out:
- Yes
- Baffled:
- Yes
- Includes Pickup:
- No
- Includes Windage Tray:
- No
- Includes Crank Scraper:
- Yes
- Includes Hardware:
- No
- Quantity:
- Sold As Each
