Canton Oil Pan 15-690; Street, Strip Wet Sump 6 Quart Silver Plating for 1978 to 1993 Ford Mustang 351W
$479.00
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 9 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Product Description

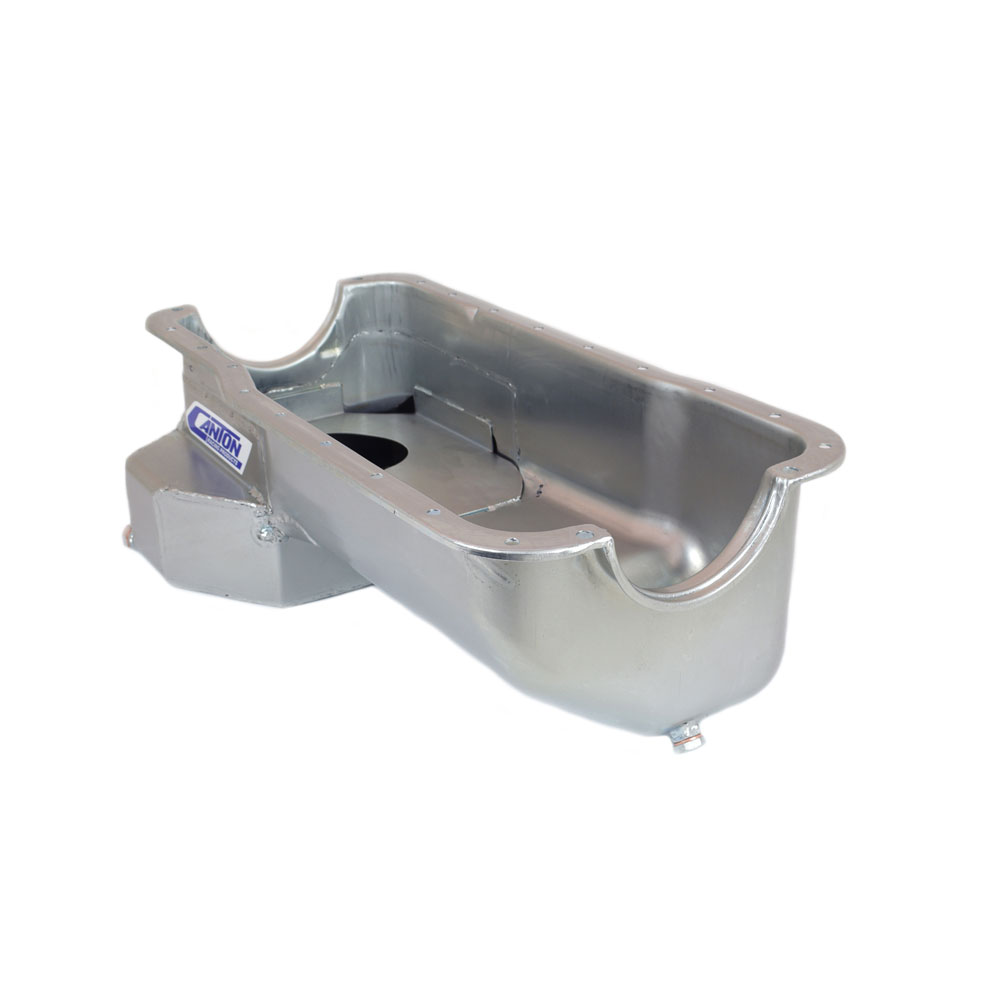

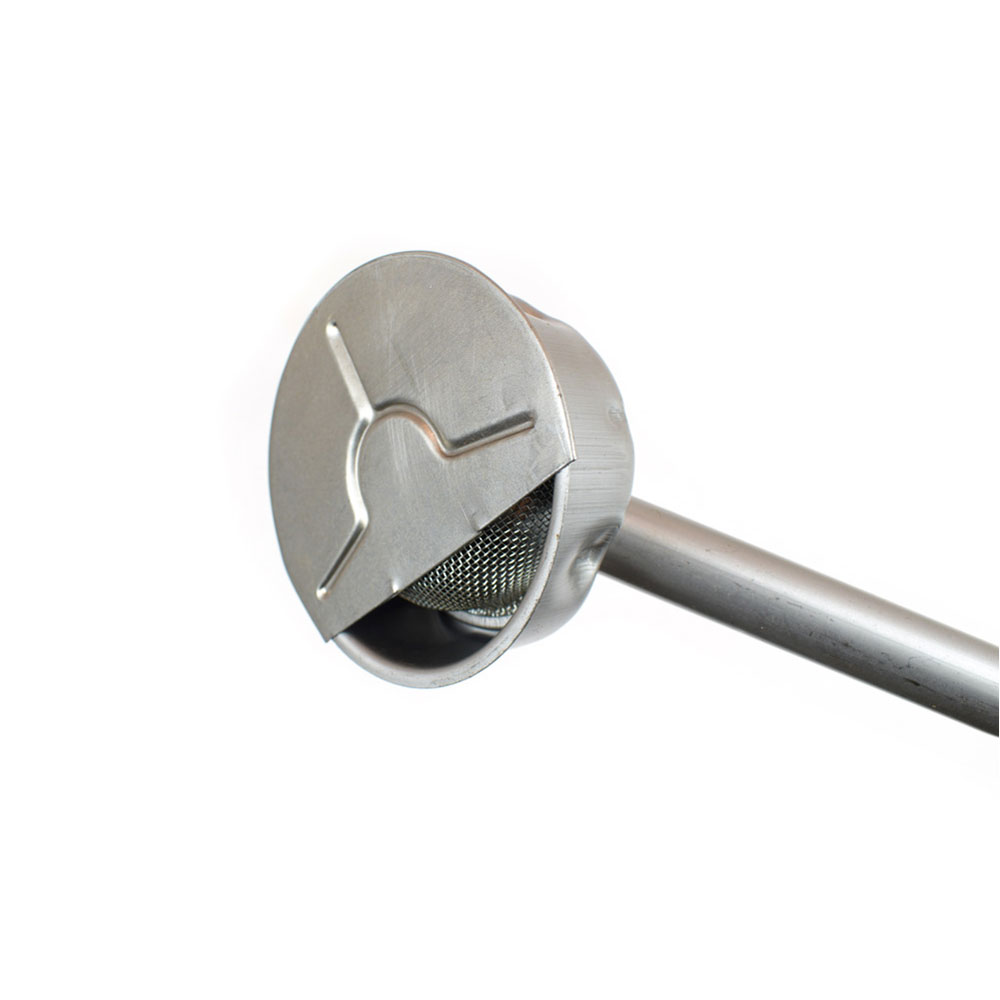

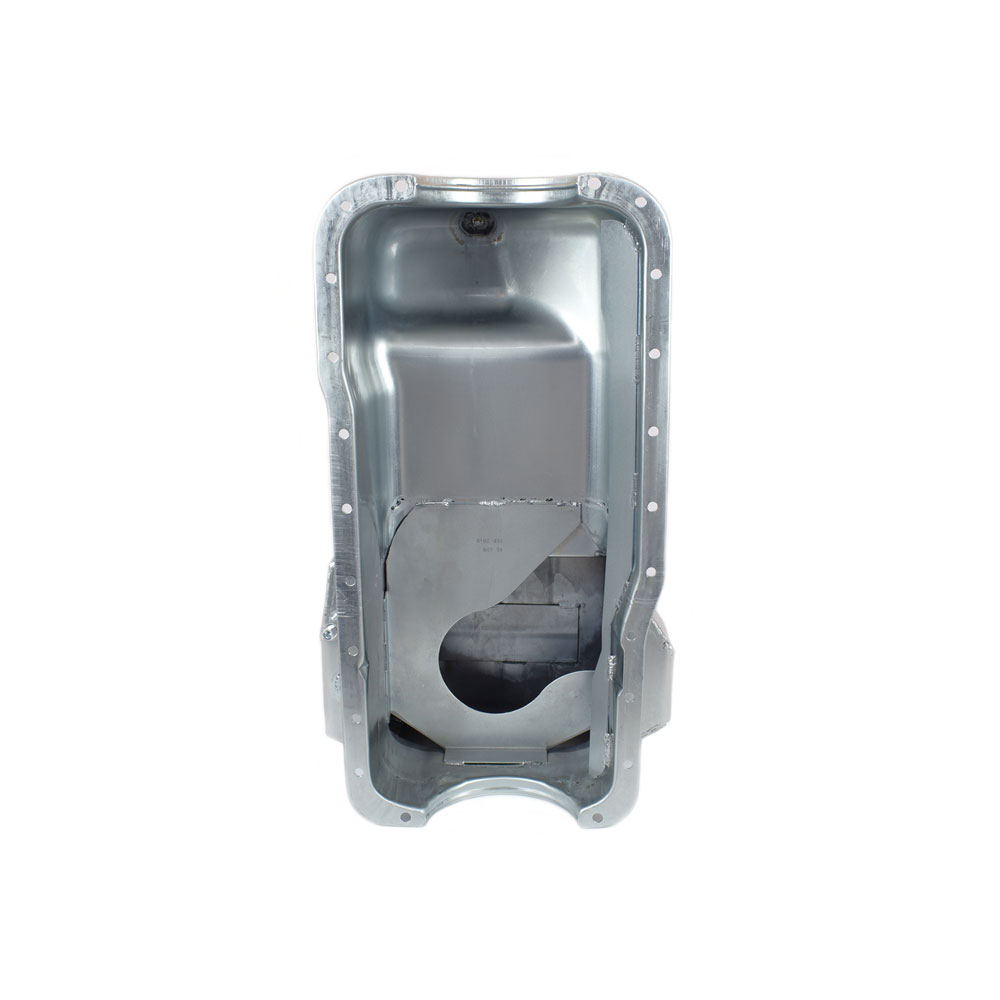

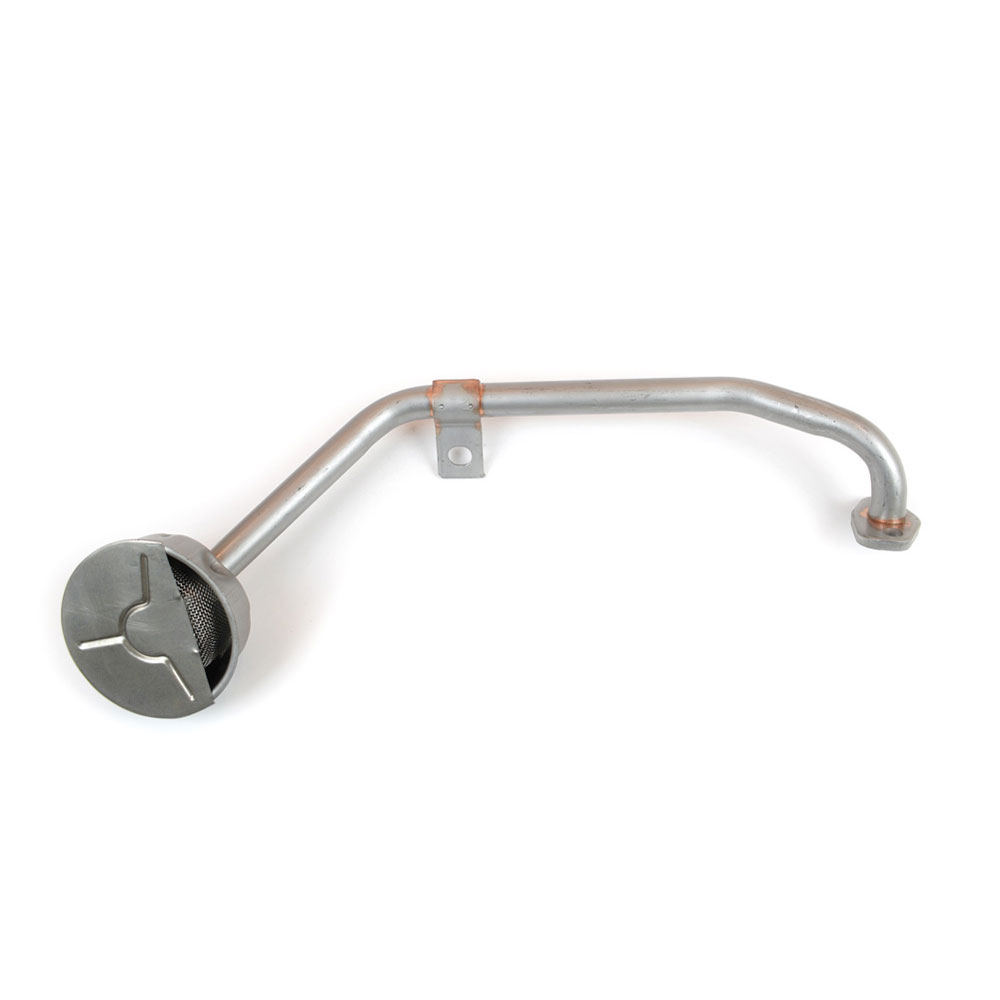

This "T" style rear sump oil pan is for Ford 351 Windsor blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-691 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Specifications
- Oil Pan Series:
- Street, Strip
- Year:
- 1978 to 1993
- Make:
- Ford
- Model:
- Mustang
- Engine:
- 351W
- Pan Style:
- Wet Sump
- Dip Stick Location:
- Driver Side
- Capacity:
- 6 Quart
- Depth:
- 7.500 in.
- Material:
- Steel
- Finish:
- Silver Plating
- Kick Out:
- Yes
- Sump Location:
- Rear
- Baffled:
- Yes
- Includes Pickup:
- No
- Standard Pickup Part Number:
- CAN15-695
- Includes Windage Tray:
- No
- Includes Crank Scraper:
- Yes
- Includes Gasket:
- No
- Includes Hardware:
- No
- Compatible Rear Main Seal Style(s):
- OEM
- Quantity:
- Sold As Each
