Canton Engine Coolant Reservoir 80-201; Recovery Tank 2 Quarts Natural Aluminum 9.750 in.

$175.00

Part #: 80-201

Brand: Canton

UPC: 887753718358

Estimated Ship Date: Today

Specifications Tech Resources Recommended

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

.100 Aluminum Fabrication
TIG Welded
Sight Gauge
Mounting Bracket
Includes Fittings to be Plumbed as Catch Tank or Recovery Tank

Product Description

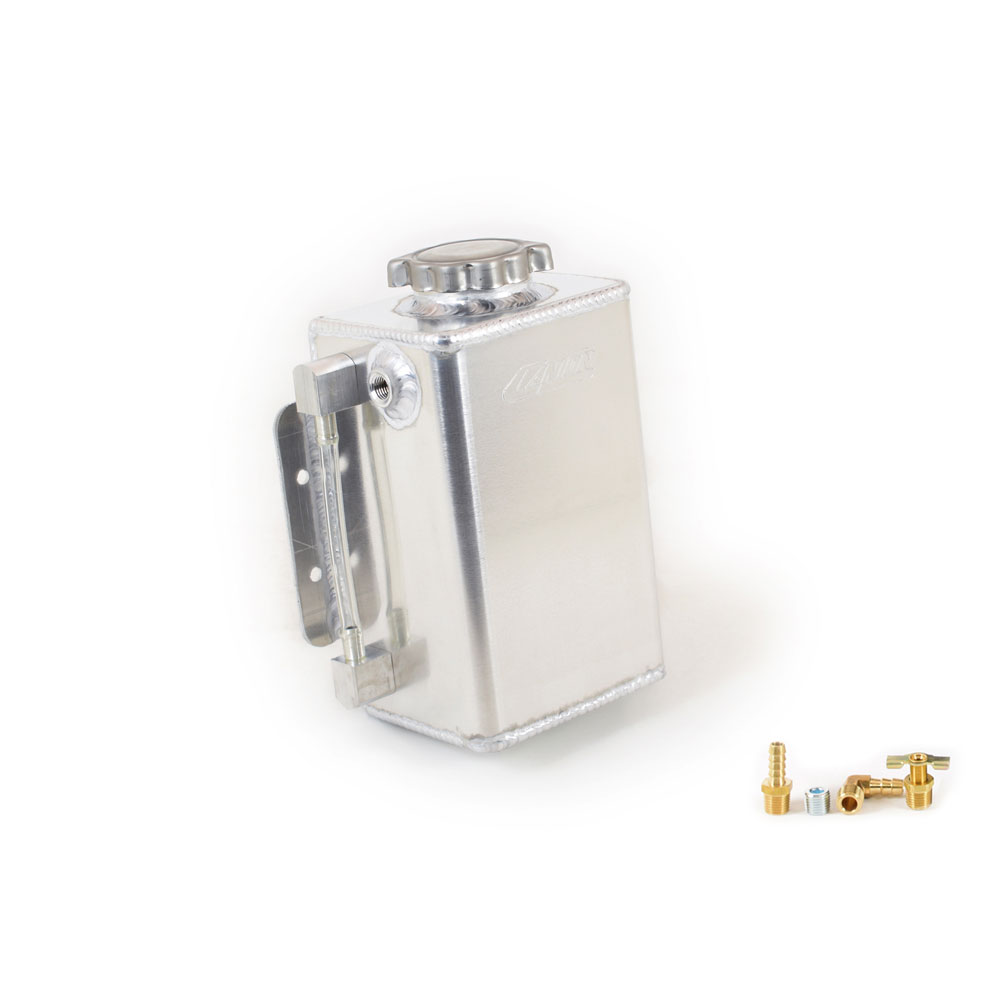

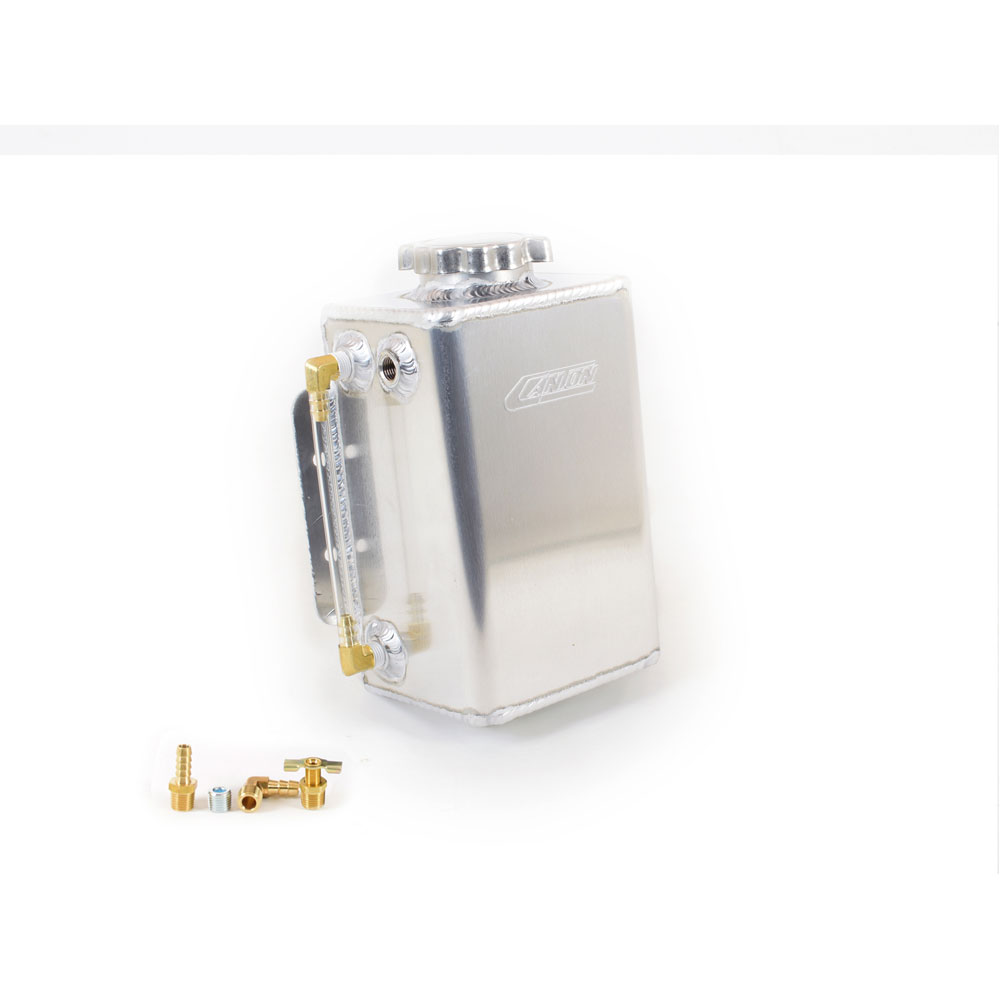

Size: 8" Tall, 5" Wide, 4" Deep. Tank: 2 qt. tank. Side Port: 1/4" N.P.T. Bottom Port: 1/4" N.P.T. Comes with clear tube sight gauge, integrated mounting flanges, and in addition to the petcock & vented cap, two 5/16" barbed fittings 1X 90 deg. & 1X straight.

Specifications

Engine Coolant Reservoir Series:
Recovery Tank: Material:
Aluminum: Finish:
Natural: Capacity:
2 Quarts: Height:
9.750 in.: Includes Mounting Hardware:
No: Length:
4.000 in.: Width:
5.000 in.: Port Size:
1/4 in. NPT: Vented:
Yes: Recirculating:
Yes: Notes:
Comes with cap and fittings.: Quantity:
Sold As Each

Tech Resources

Recovery & Catch Tank Plumbing.pdf
