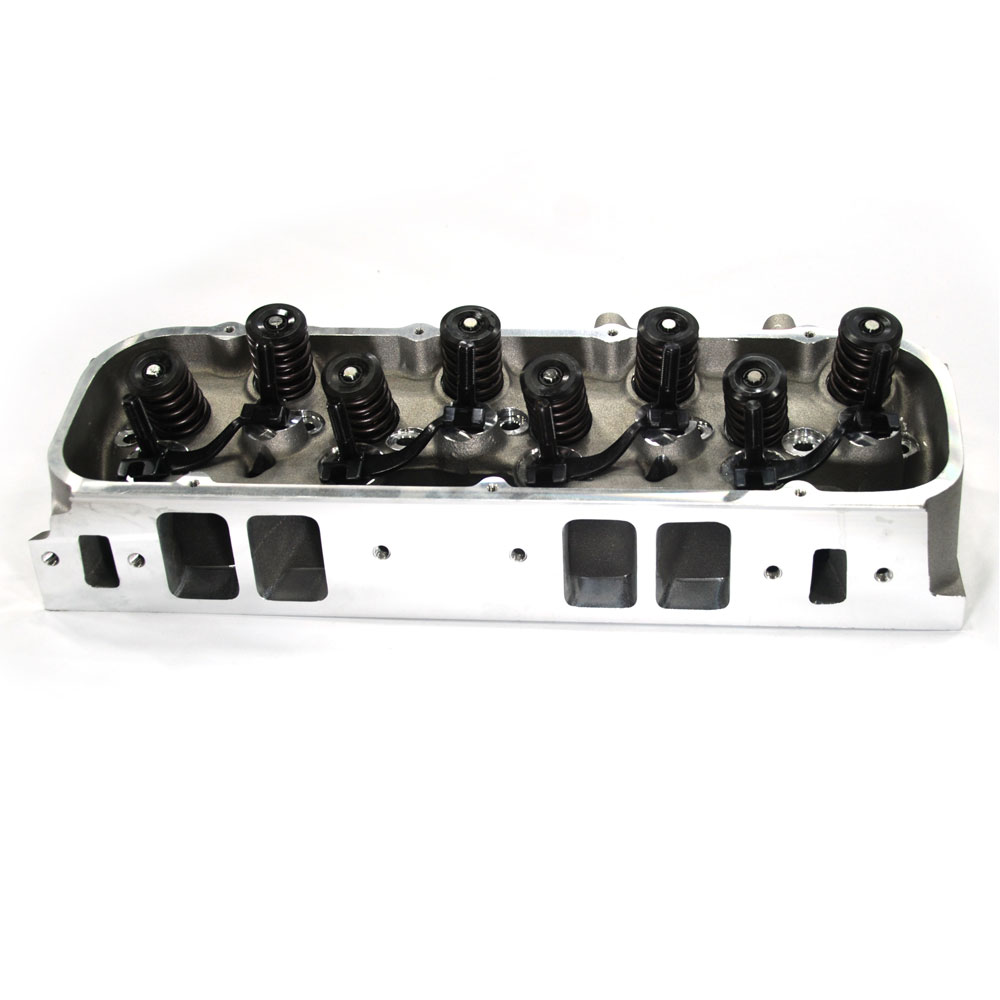

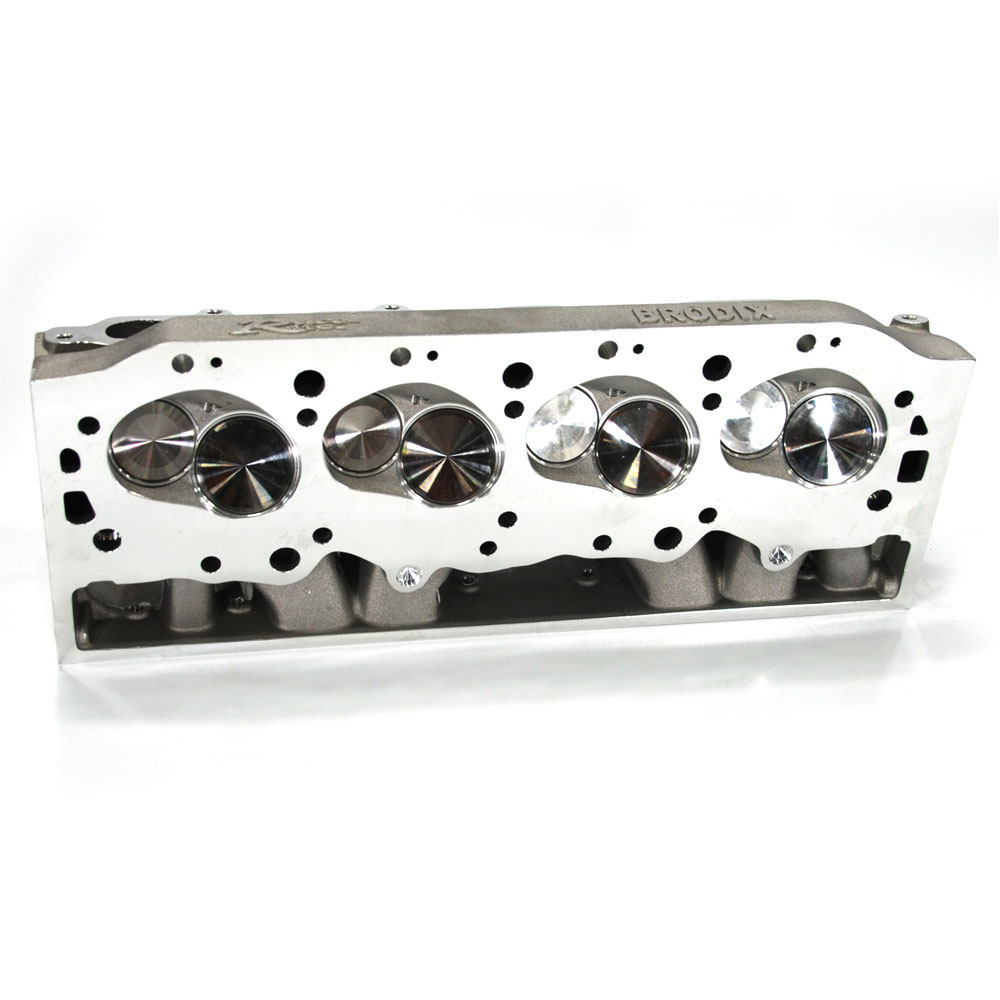

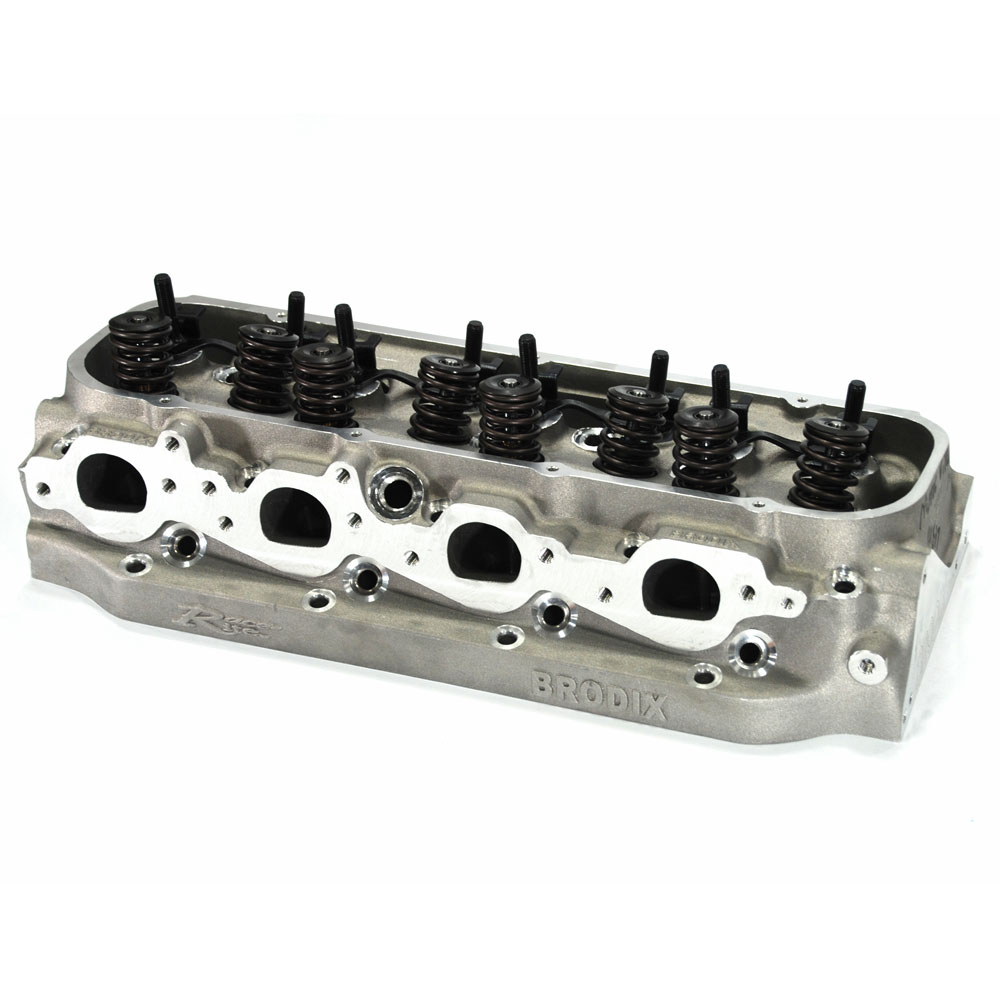

Brodix Cylinder Head Assembly 2061018; Race Rite BB 2 Plus 312.00 cc Aluminum 119 cc for Chevy 396 to 454
$1,226.58
This item has a $87.50 oversized shipping charge.
See our shipping policy for more details.
Specifications
- Cylinder Head Assembly Series:
- Race Rite BB 2 Plus
- Make:
- Chevy
- Engine:
- 396 to 454
- Material:
- Aluminum
- Combustion Chambers:
- 119 cc
- Intake Valve Diameter:
- 2.250 in.
- Exhaust Valve Diameter:
- 1.880 in.
- Spark Plug Angle:
- Angled
- Intake Runners:
- 312.00 cc

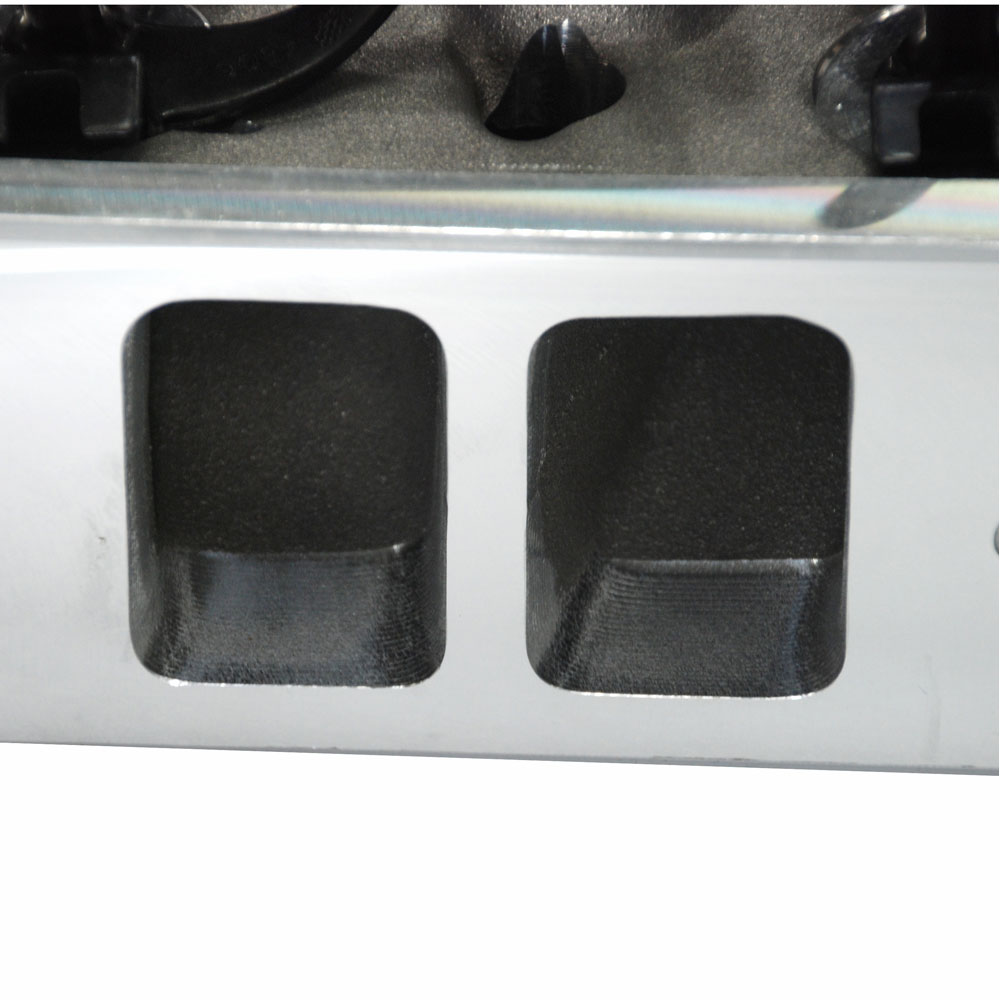

- Port Style:
- Rectangular
- Cam Type Recommended:
- Hydraulic Flat Tappet
- Max Valve Lift:
- 0.625 in.
- Valve Spring OD:
- 1.550 in.
- Closed Spring Pressure:
- 140 lbs. @ 1.950 in.
- Open Spring Pressure:
- 360 lbs.
- Valve Spring Retainer Material:
- Steel
- Quantity:
- Sold As Each
