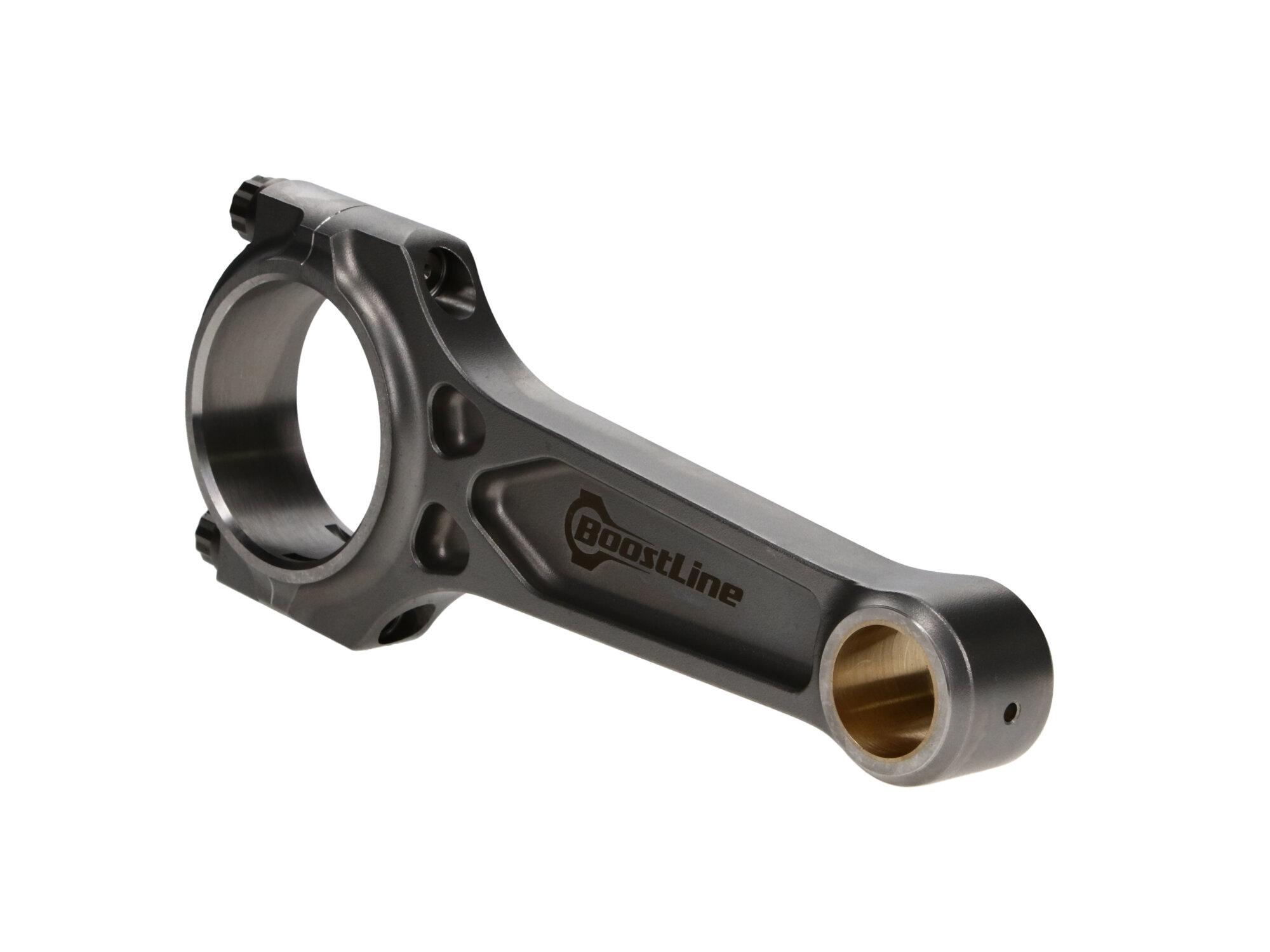

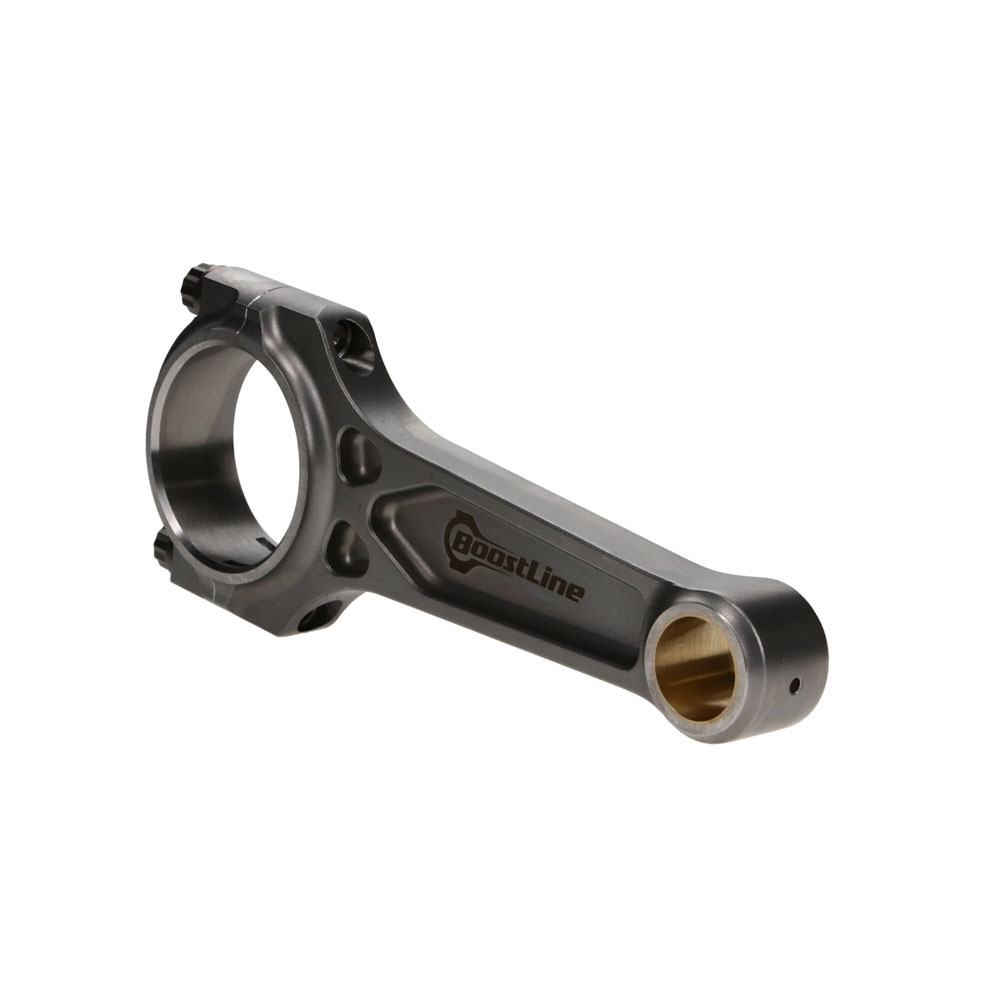

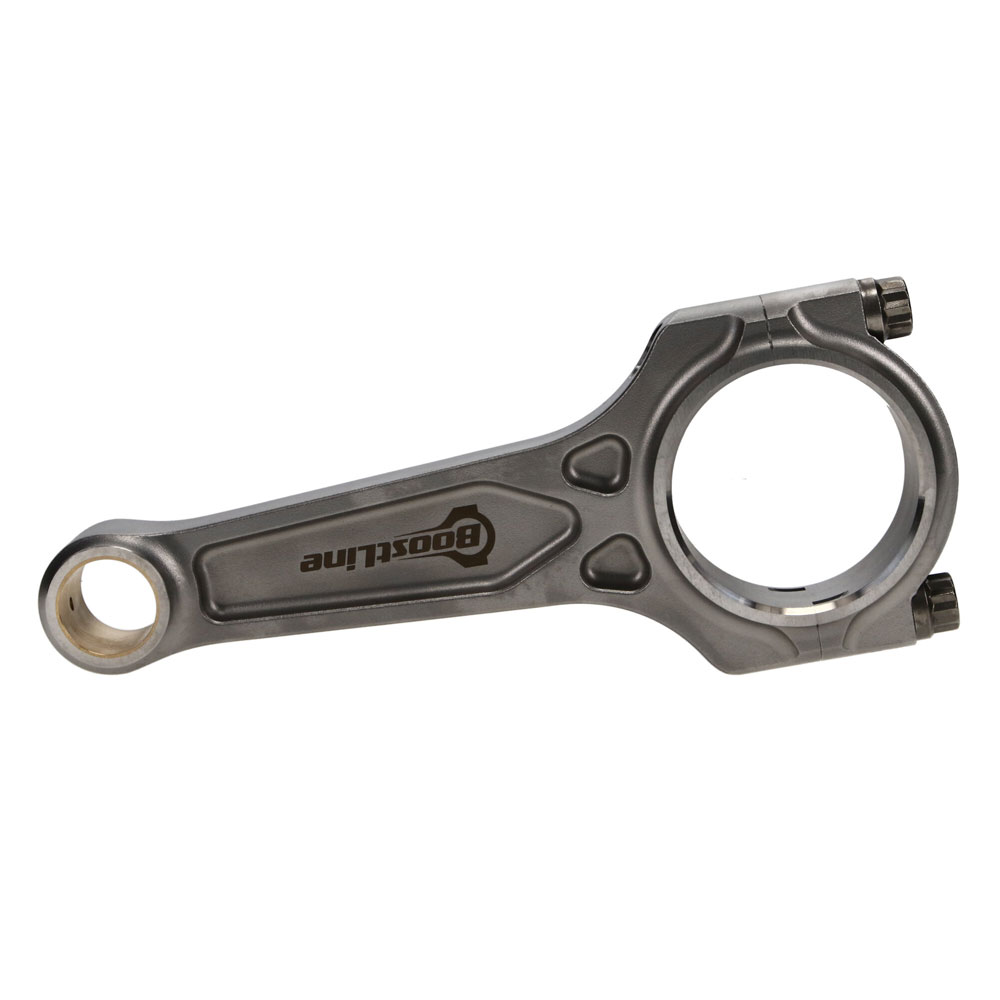

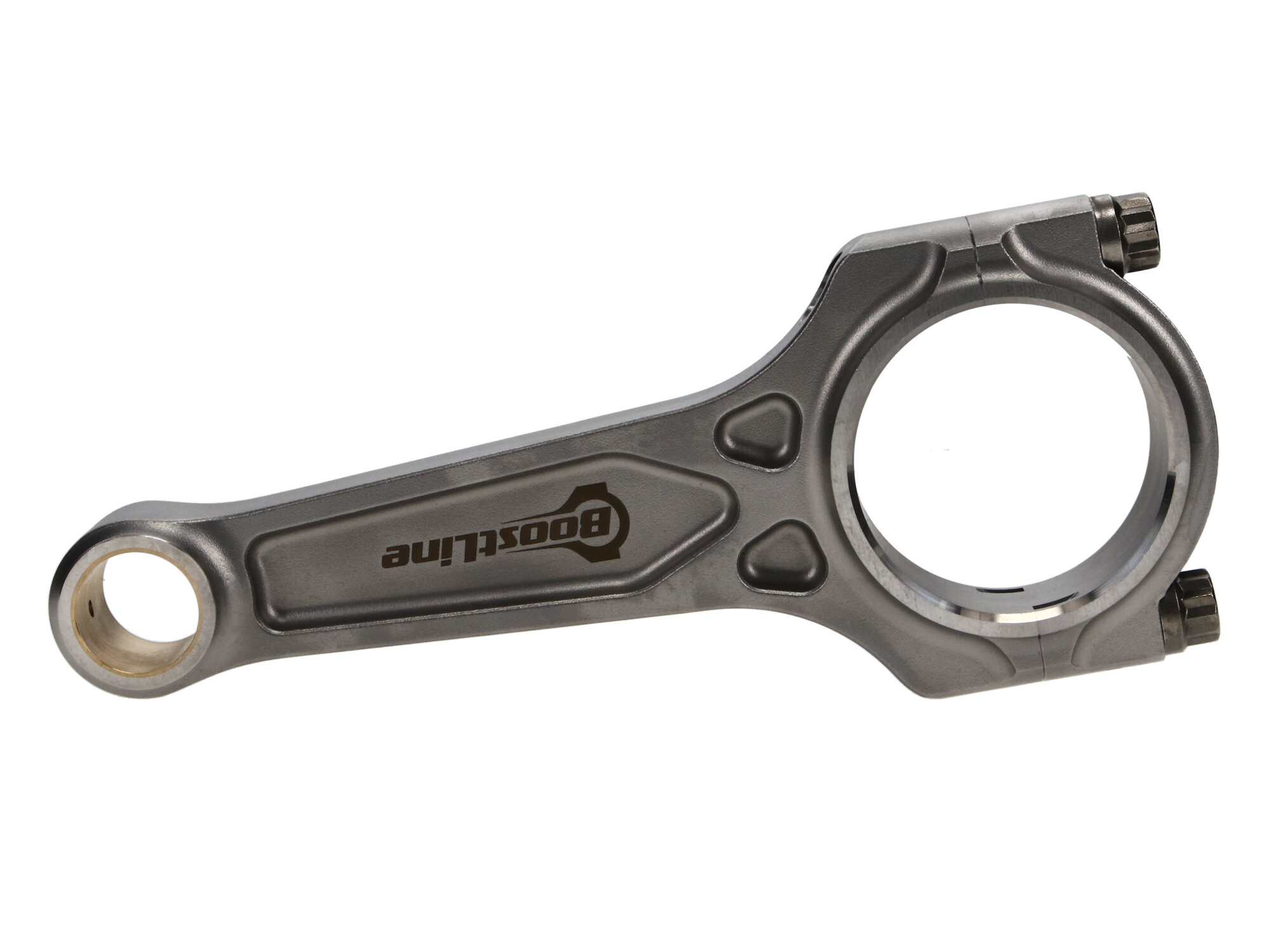

Boostline Connecting Rod Set TY5433-866; I-Beam 5.433 in. Bushed for Toyota 3SGTE 2.0L 16V

$982.95

Part #: TY5433-866

Brand: Boostline

UPC: 193564461131

Estimated Ship Date: 6/14/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Purpose-Built For Boost High Boost Toyota 3S-GTE Applications
  • Forged From Ultra-Strong 4340 Steel
  • Patented Three-Pocket Design
  • Capable of 2000 HP
  • 3/8 x 1.600 in. ARP 2000 Fasteners

Product Description

BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous engines. Whether you?re building a boosted K-series, a track-ready Volkswagen, or a sneaky SRT4, BoostLine connecting rods have been proven in import and domestic four-cylinder engines confidently pushing 1,000HP+. BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods? big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card included with every set of rods. BoostLine connecting rods are the complete package for every performance build, from powerful projects to all-out race cars.

Specifications

Make:
Toyota
Engine:
3SGTE 2.0L 16V
Beam Style:
I-Beam
Rod Length:
5.433 in.
Material:
Forged 4340 Steel
Rod Journal Diameter:
1.889 in.
Wrist Pin Diameter:
0.866 in.
Wrist Pin Style:
Bushed
Rod Bolt Style:
Cap Screw
Rod Bolt Diameter:
3/8 in.
Rod Bolt Material:
ARP 2000
Big End Width:
1.053 in.
Rated Horsepower:
1,000 Plus HP
Big End Bore:
2.008 in.
Quantity:
Sold As Set (4/pkg)
