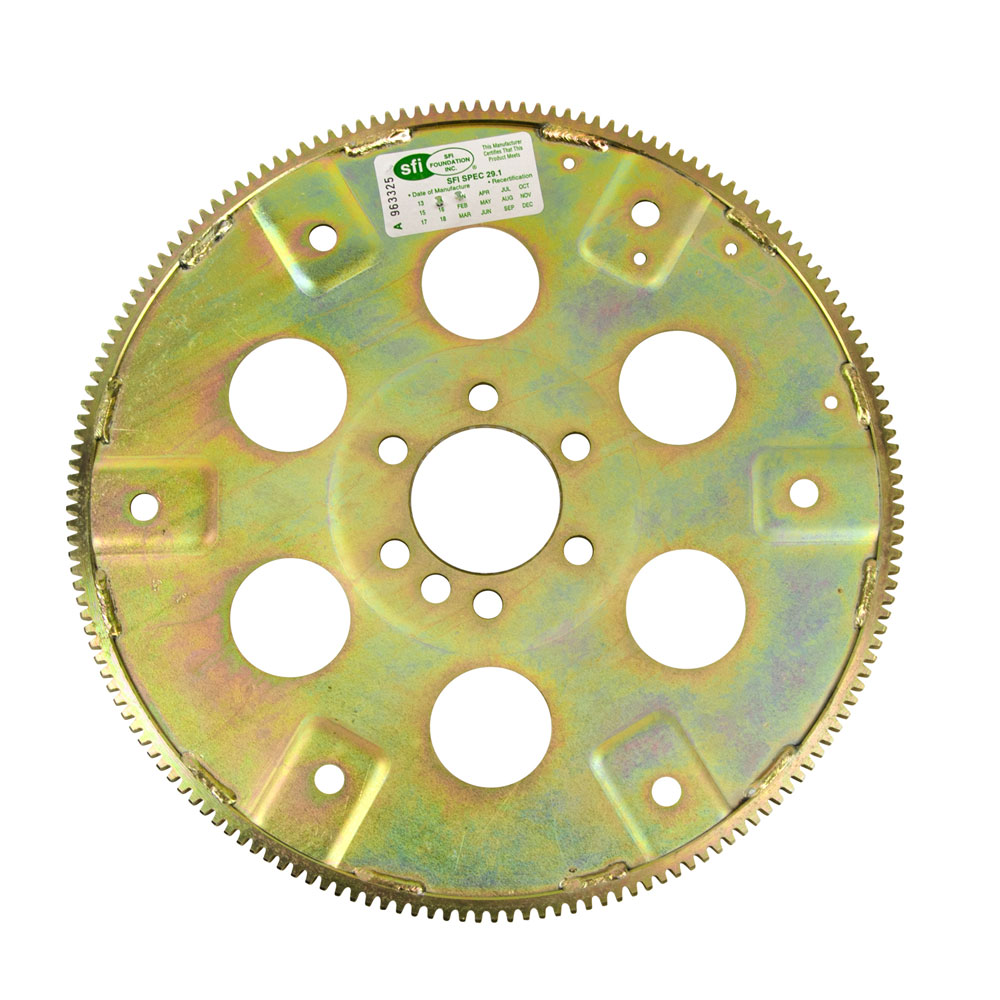

B & M Flexplate 20230; 168t Internal SFI 29.1 Steel for 1955 to 1985 Chevy 262 to 350, 396 to 427 TH350, TH400

$139.45

Part #: 20230

Brand: B & M

UPC: 019695202309

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • NHRA/IHRA Legal For All Classes
  • Includes SFI Certification Sticker
  • Ideal For Street Applications
  • To Extreme Duty Racing
  • To High RPM Use

Product Description

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1955-85 GM small block (internally balanced) V8 engines along with 4.3L V6 engines. Also fits 1990 and earlier GM big block (internally balanced) V8 engines with two piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, dual bolt pattern 10.75 or 11.5 inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.

Specifications

Year:
1955 to 1985
Make:
Chevy
Engine:
262 to 350, 396 to 427
Transmission:
TH350, TH400
Teeth:
168t
Balance:
Internal
Bolt Circle:
10.750, 11.500 in.
Compatible Rear Main Seal Style(s):
2 Piece
Material:
Steel
SFI Rated:
SFI 29.1
Quantity:
Sold As Each

Alternative Parts

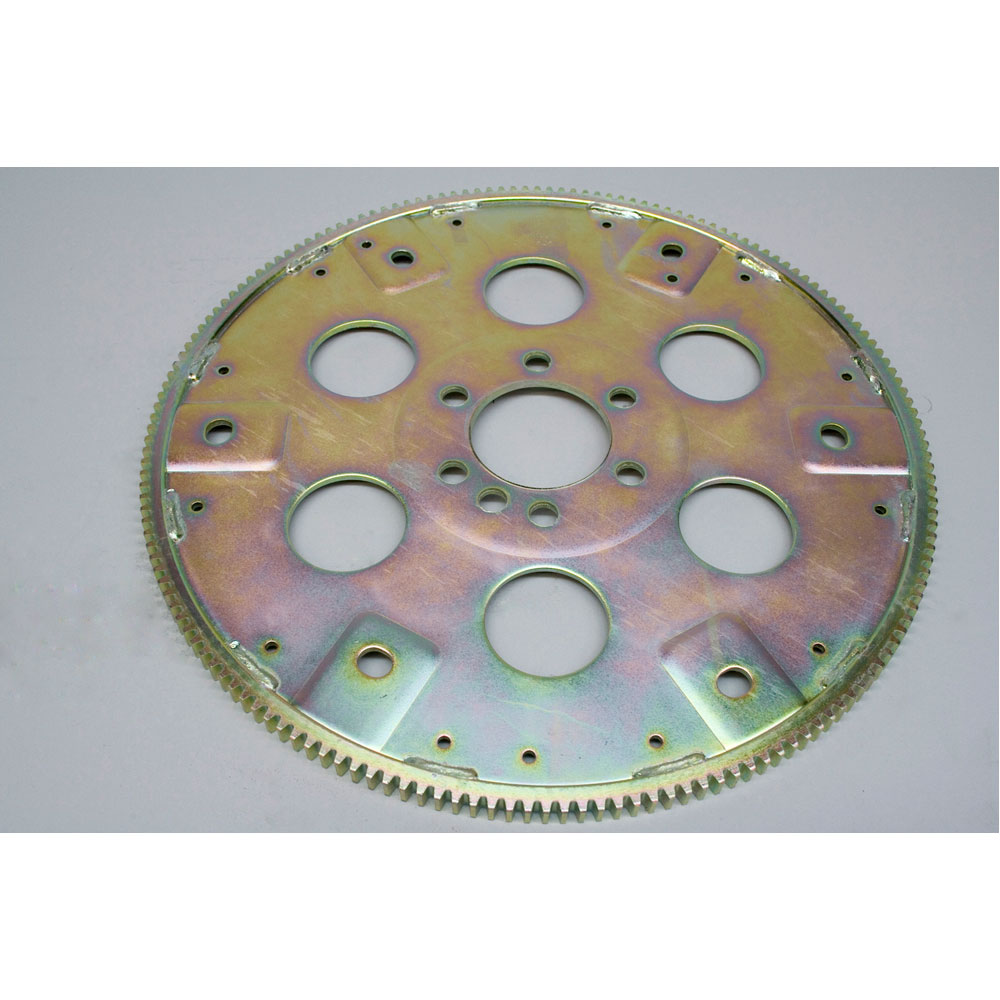

PRW Flexplate 1835001; Gold Series 168t Internal SFI 29.1 Chromoly Steel for 1957 to 1985 Chevy 262 to 350, 396 to 427 TH350, TH400
