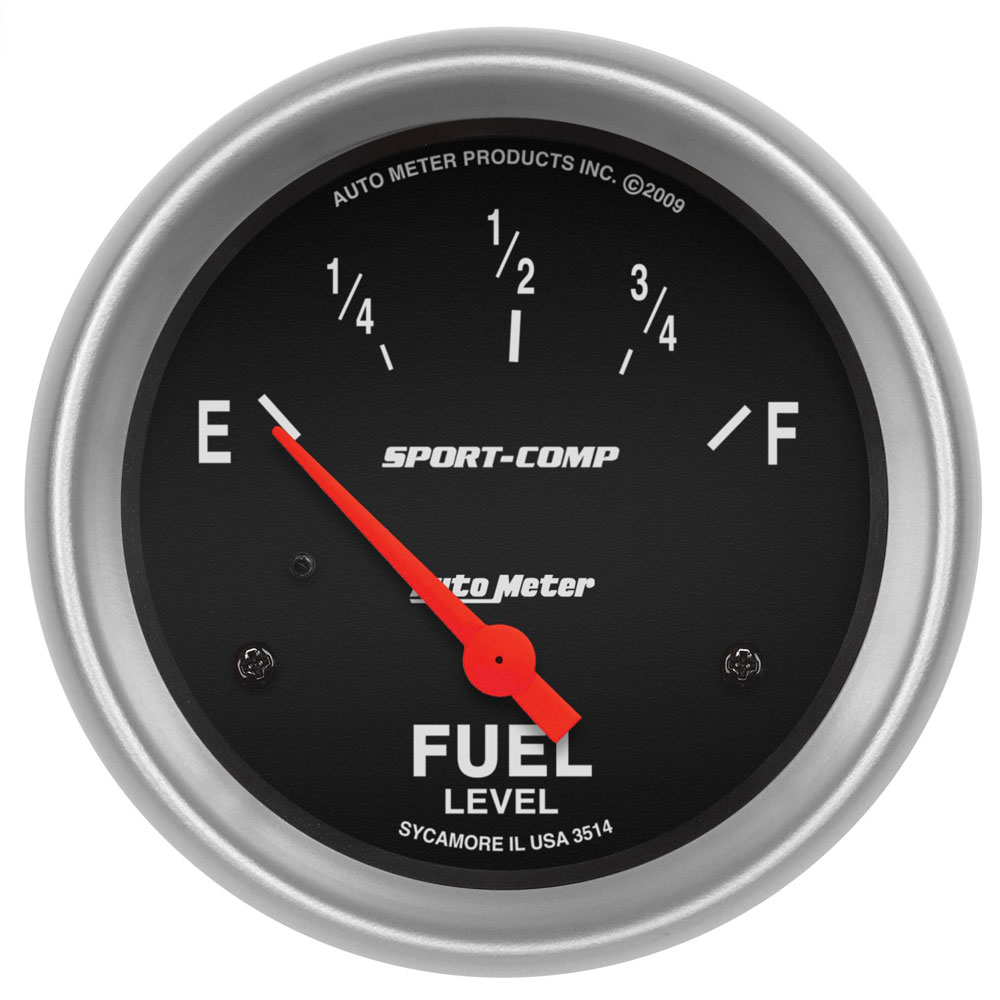

Auto Meter Fuel Level Gauge 3514; Sport Comp Fuel Level 0 (E) to 90 Ohms (F) 2-5/8 in. Short Electric
$89.94 Rebate
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings
Product Description
One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-030 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-033 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Specifications
- Fuel Level Gauge Series:
- Sport Comp
- Gauge Type:
- Fuel Level
- Gauge Range:
- 0 (E) to 90 Ohms (F)
- Gauge Size:
- 2-5/8 in.
- Sweep:
- Short
- Gauge Face Color:
- Black
- Gauge Number Color:
- White
- Pointer Color:
- Fluorescent Red
- Bezel Color:
- Brushed Aluminum
- Liquid Filled:
- No
- Sending Unit Type:
- Electric
- Meter Movement Mechanism:
- Air Core
- Programmable:
- No
- With "Peak" Feature:
- No
- With "Warning" Feature:
- No
- With "Recall" Feature:
- No
- With Indicator Light:
- No
- Backlit:
- Yes
- Quantity:
- Sold As Each
