Air Flow Research Cylinder Head Assembly 1036; Eliminator Street 195cc Aluminum 75cc for Chevy 262 to 400
$1,999.77
$2,126.00 On Sale
Save 6%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Product Description
AFR`s 195cc "Street" heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for displacements up to 400 cubic inches, operating up to 6500 RPM. Legal for 1994 and older emissions controlled vehicles under CARB EO #D-250- 2.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Cylinder Head Assembly Series:
- Eliminator Street
- Make:
- Chevy
- Engine:
- 262 to 400
- Material:
- Aluminum

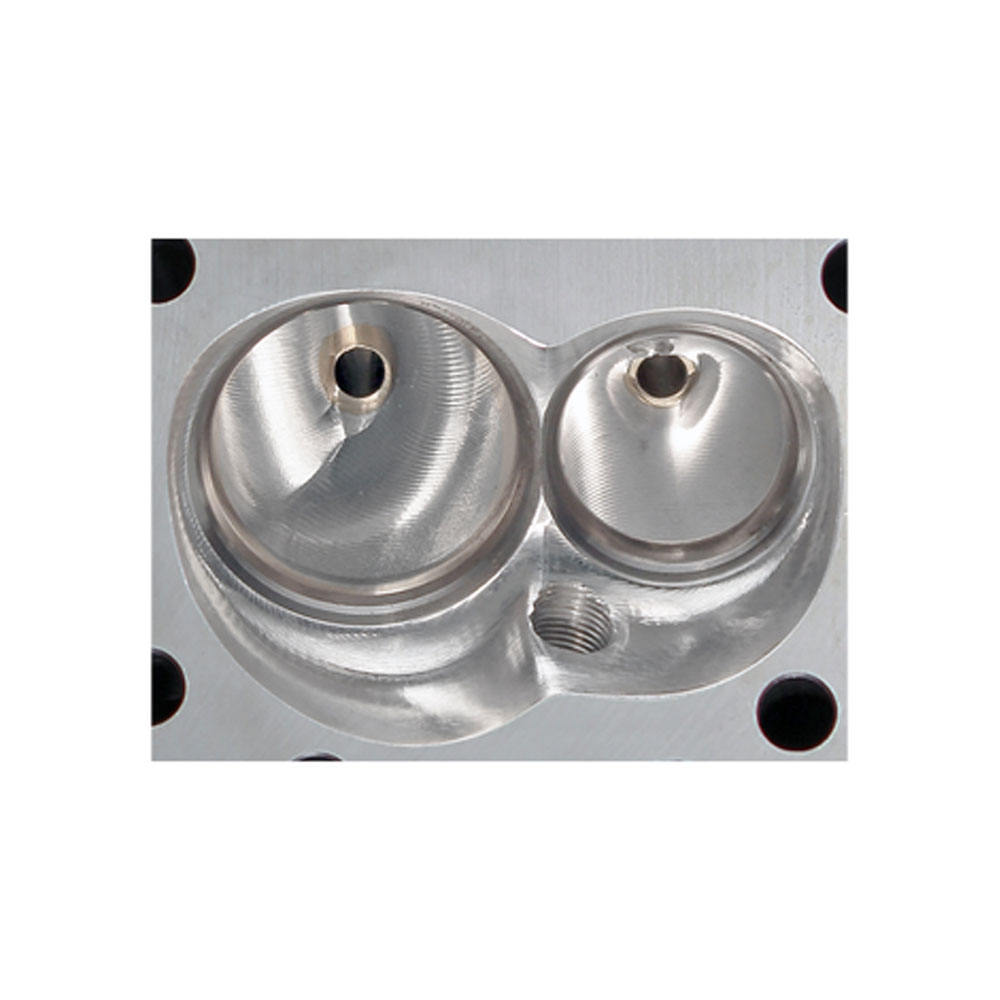

- Combustion Chambers:
- 75cc
- Intake Valve Diameter:
- 2.050 in.
- Exhaust Valve Diameter:
- 1.600 in.
- Spark Plug Angle:
- Straight
- Intake Runners:
- 195cc

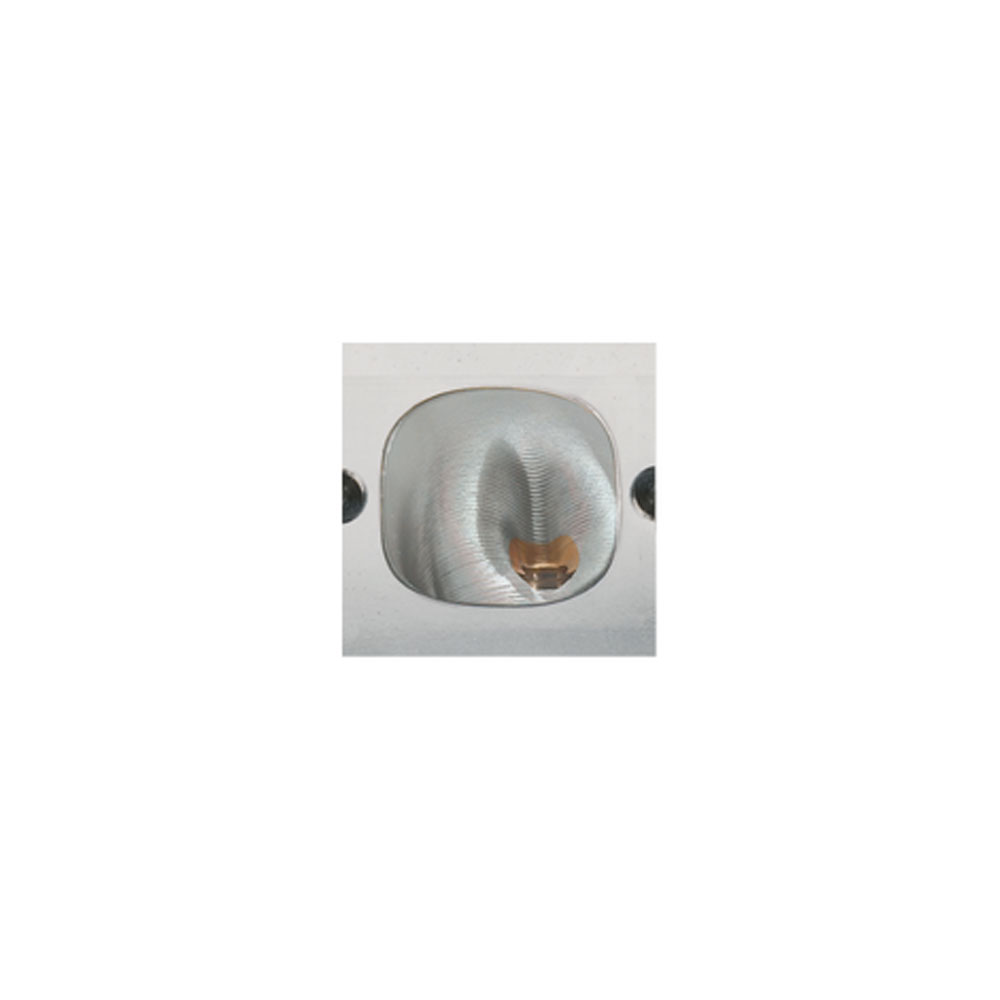

- Exhaust Runners:
- 64cc
- Port Style:
- Rectangular
- Cam Type Recommended:
- Hydraulic Roller
- Max Valve Lift:
- 0.600 in.
- Valve Spring OD:
- 1.290 in.
- Closed Spring Pressure:
- 140 lbs. Seat
- Valve Spring Retainer Material:
- Chromoly
- Valve Material:
- Stainless Steel
- Notes:
- Exhaust port is raised 0.100 in.
- Quantity:
- Sold As Pair
