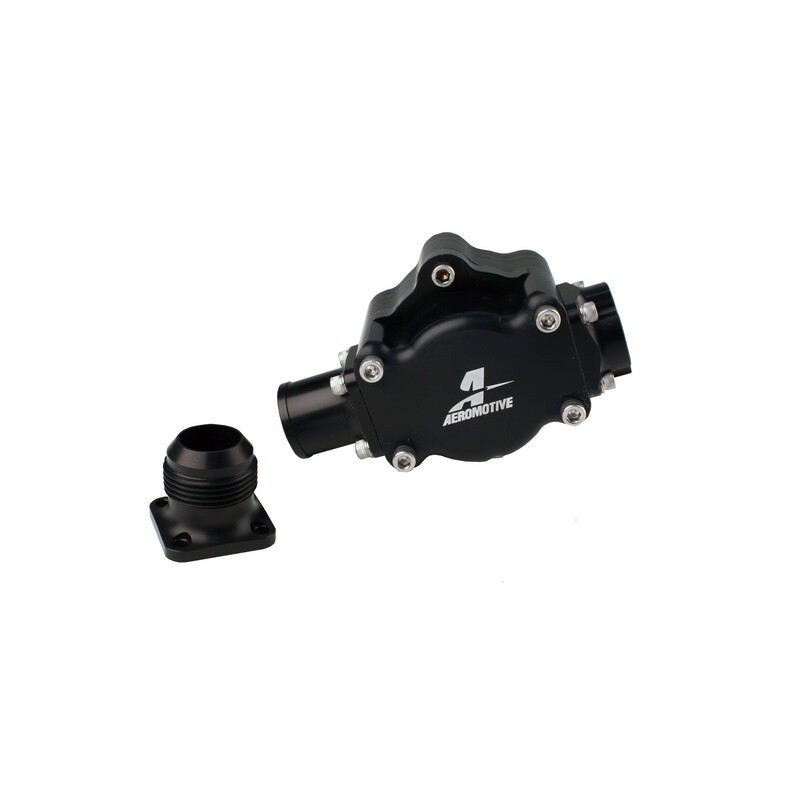

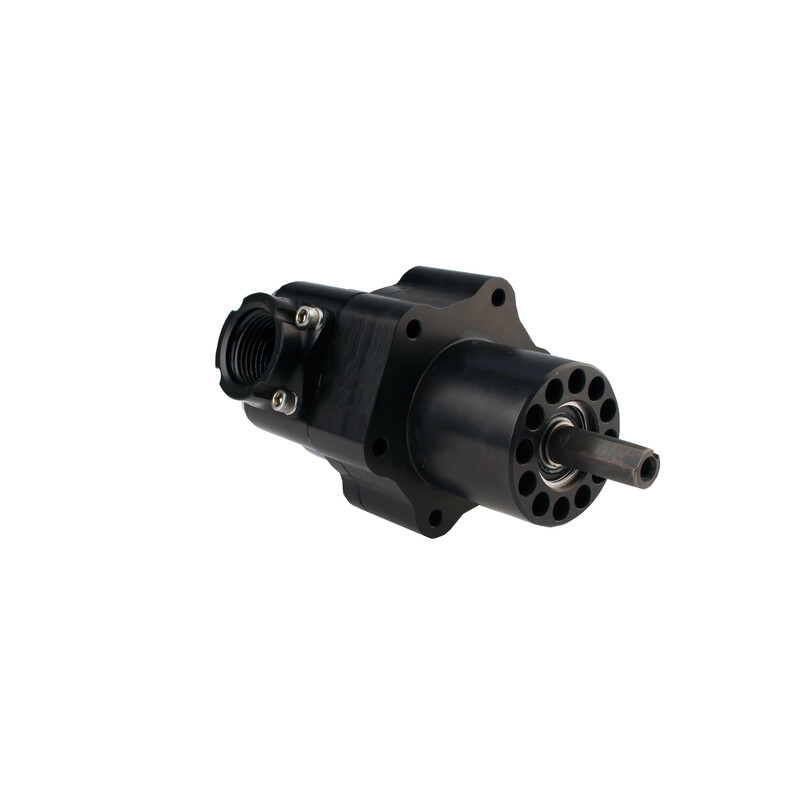

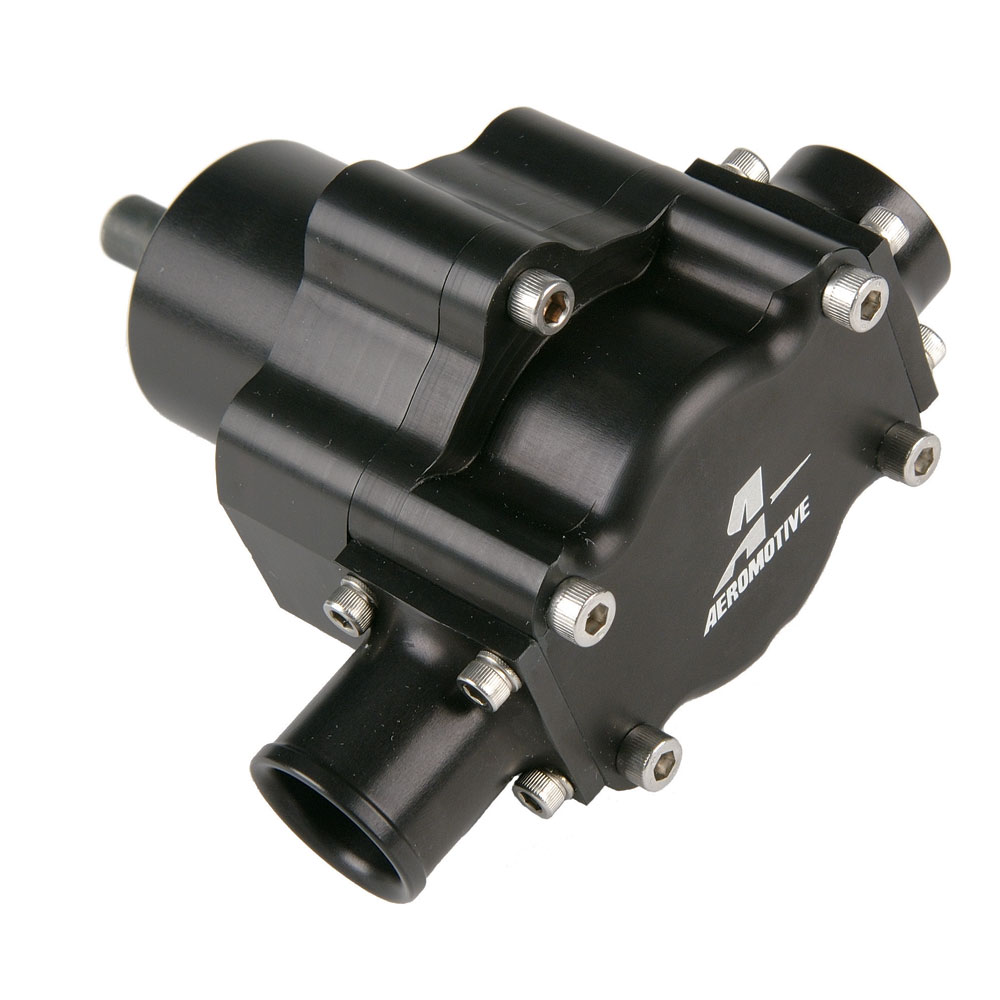

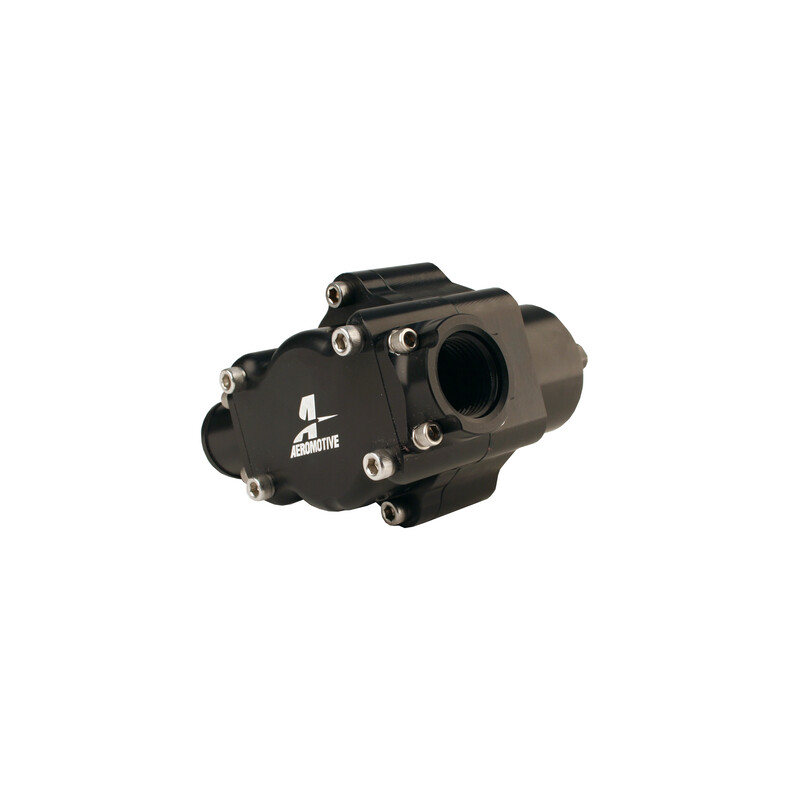

Aeromotive Fuel System Mechanical Fuel Pump 11115; Atomic Belt Drive
$1,121.35
Part #: 11115
Brand: Aeromotive Fuel System
UPC: 684980002355
Estimated Ship Date: 6/5/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Flows in excess of 4500 lbs/hr (over 12 GPM at 100 PSI).
- Supports over 5000 HP gas, 2500 HP methanol.
- Type III hard coat anodize protects the 6061 T6 aircraft aluminum alloy housing.
- Features removable ports with a 1.25" inlet and ORB-12 outlet port.
- EFI applications require regulator P/N 13113.
- Bracket (P/N 11705) and Cog Pulley (P/N 21109) sold separately.(see Accessories)
- EFI applications require regulator P/N 13113.
- Bracket (P/N 11705) and Cog Pulley (P/N 21109) sold separately.(see Accessories)
Product Description
12 GPM Belt Drive Mechanical Fuel Pump. Designed to feed serious EFI and Carbureted engines, gasoline, ethanol, or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low-pressure applications. Flows up to 12 GPM. 5,000 HP on gas, up to 2500 HP methanol. High efficiency, Gerotor pumping mechanism. Tough, Type III hard coat anodized body. CNC Machined from 6061 T6 aircraft aluminum. Includes both 1.25' barb and AN-16 Male inlet. ORB-12 female outlet port. EFI applications require high-flow bypass regulators. Sold Separately: Mounting Bracket (P/N 11706).WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Mechanical Fuel Pump Series:
- Atomic Belt Drive
- Compatible Fuels:
- Gasoline, Alcohol
- Fuel Pump Material:
- Billet Aluminum
- Inlet Port:
- 1.250 Hose Barb
- Outlet Port:
- -12AN ORB Female
- Horsepower Rating:
- 5000 HP (EFI)
- Drive Type:
- Belt Drive
- Quantity:
- Sold As Each
