Aeromotive Fuel System Fuel Tank and Pump Assembly Combination 18497; Gen II Stealth 340 16 Gallons Steel for 1964 to 1968 Ford Mustang
$798.91
Part #: 18497
Brand: Aeromotive Fuel System
UPC: 684980009859
Estimated Ship Date: 6/5/2025 (From manufacturer)
This item has a $41.07 oversized shipping charge.
See our shipping policy for more details.
Product Description

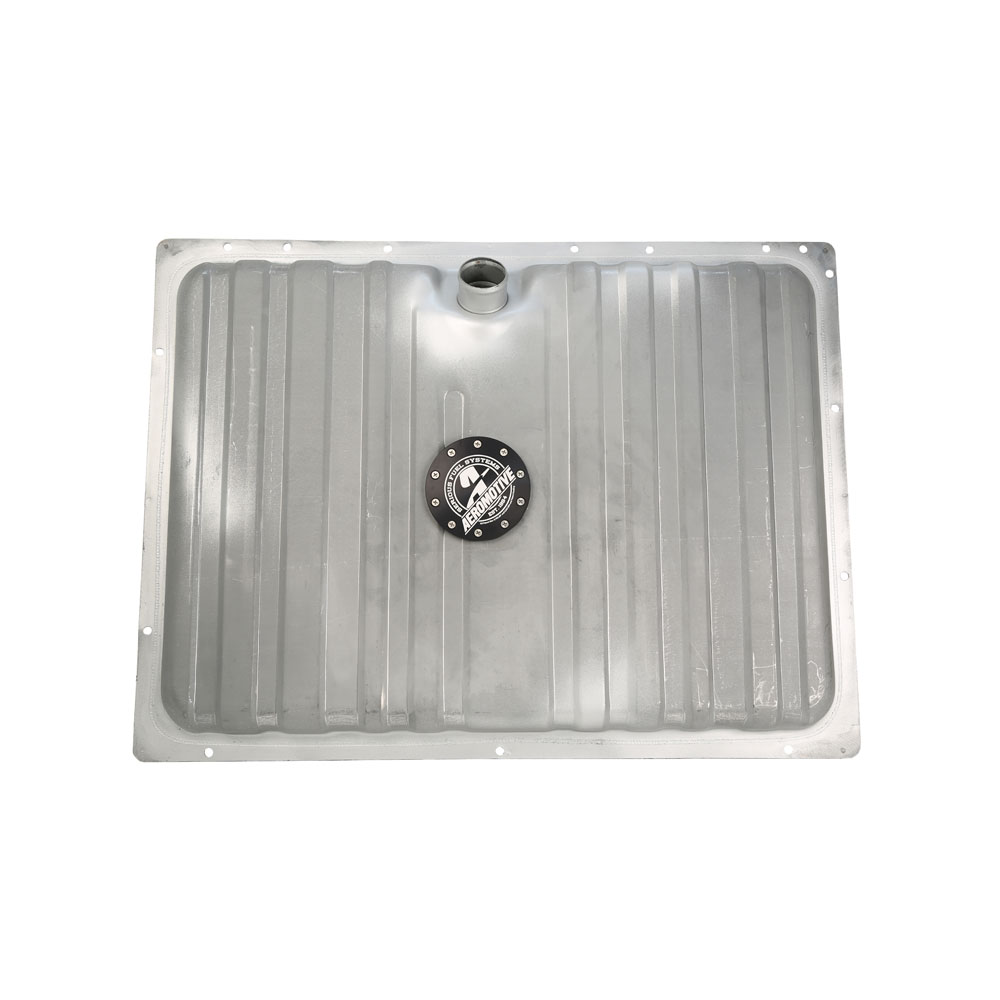

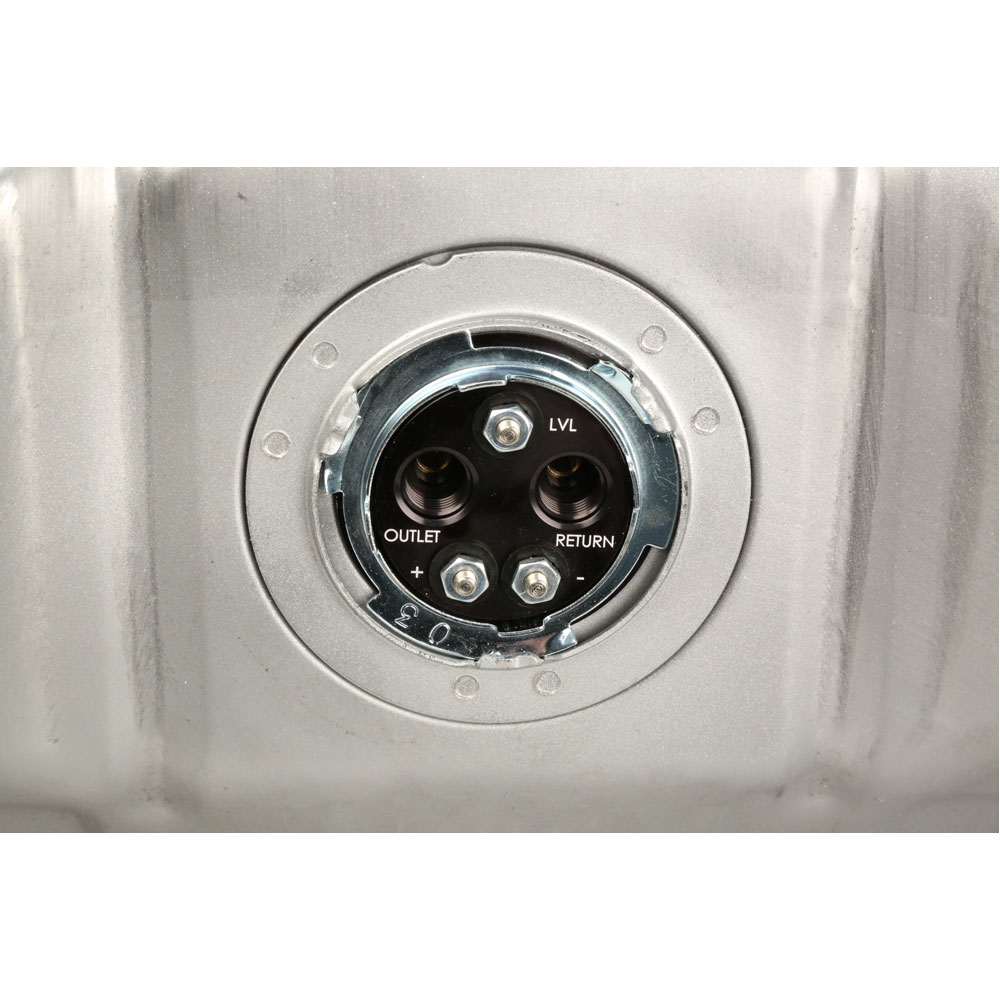

64-68 Mustang Gen II 200 Stealth Tank With Stealth 340 pump and 73-10 ohm sending unit. Perfect for EFI and carbureted engines. OEM appearance and 16-gallon capacity. High flow, quiet 340 Stealth fuel pump. 73-10 Ohm fuel level sending unit included. Billet hat with ORB-06 outlet and return ports. Utilizes OEM fuel outlet location and seal. Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control. Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install. Utilizes stock mounting straps, filler cap and vent.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Tank and Pump Assembly Combination Series:
- Gen II Stealth 340
- Year:
- 1964 to 1968
- Make:
- Ford
- Model:
- Mustang
- Capacity:
- 16 Gallons
- Material:
- Steel
- Number Of Outlets:
- 1 Outlet
- Outlet Size:
- -06AN ORB
- Baffled:
- Yes
- Filling Style:
- Factory
- Includes Foam:
- No
- Includes Fuel Level Sending Unit:
- Yes
- Includes Mounting Hardware:
- No
- Tank Finish:
- Silver Powdercoat
- Compatible Fuels:
- Gasoline
- Fuel Pump Material:
- Aluminum
- Fuel Pump Finish:
- Black Anodized
- Horsepower Rating:
- 1000 HP (Carb), 850 HP (EFI)
- Volume (Standard Pressure):
- 340 LPH @ 43 PSI
- Notes:
- Has 1 -06 ORB port for return line
- Quantity:
- Sold As Each
