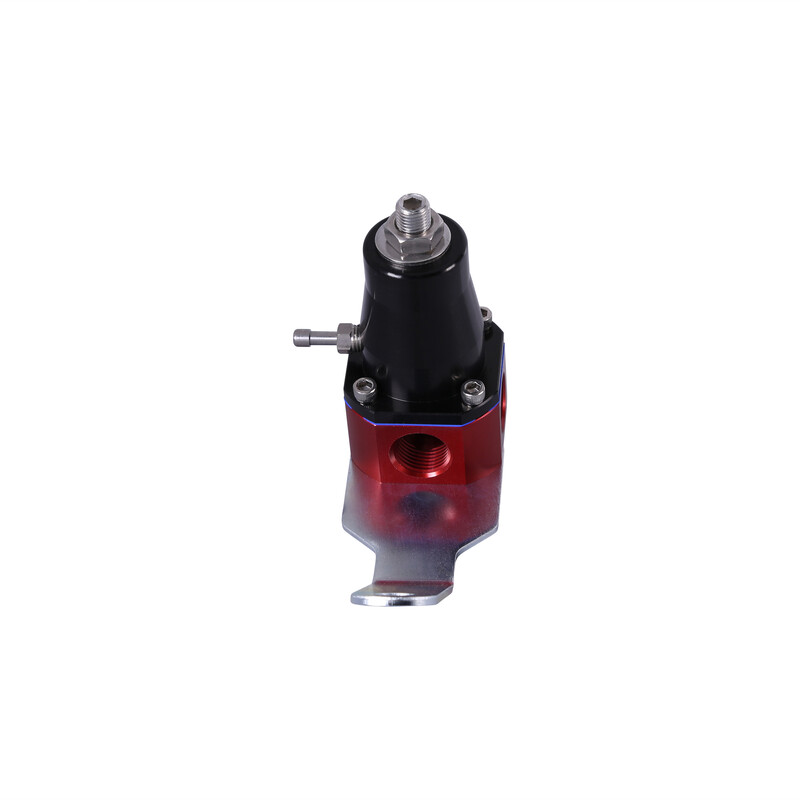

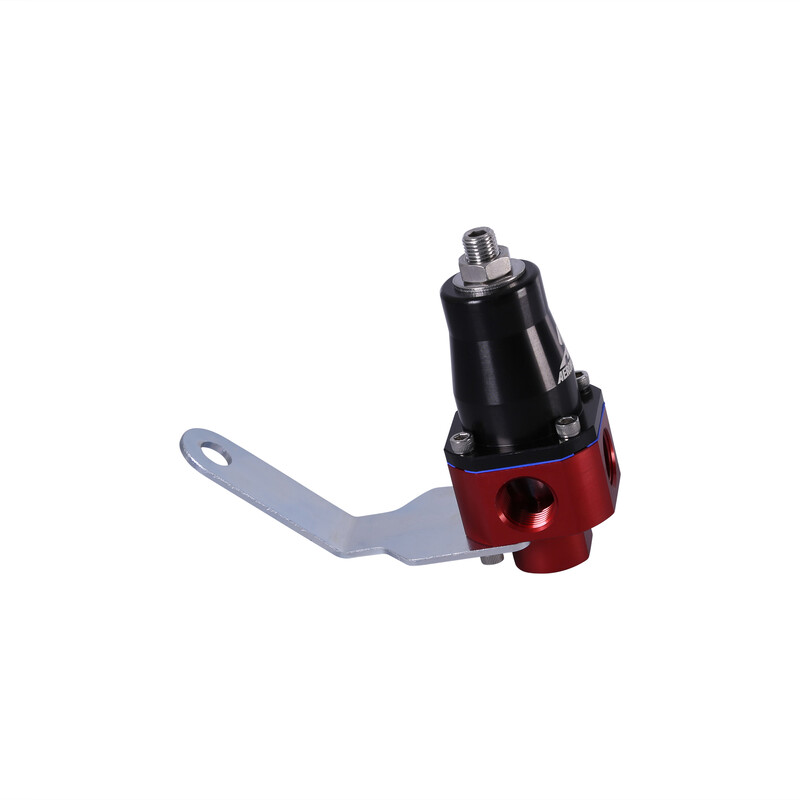

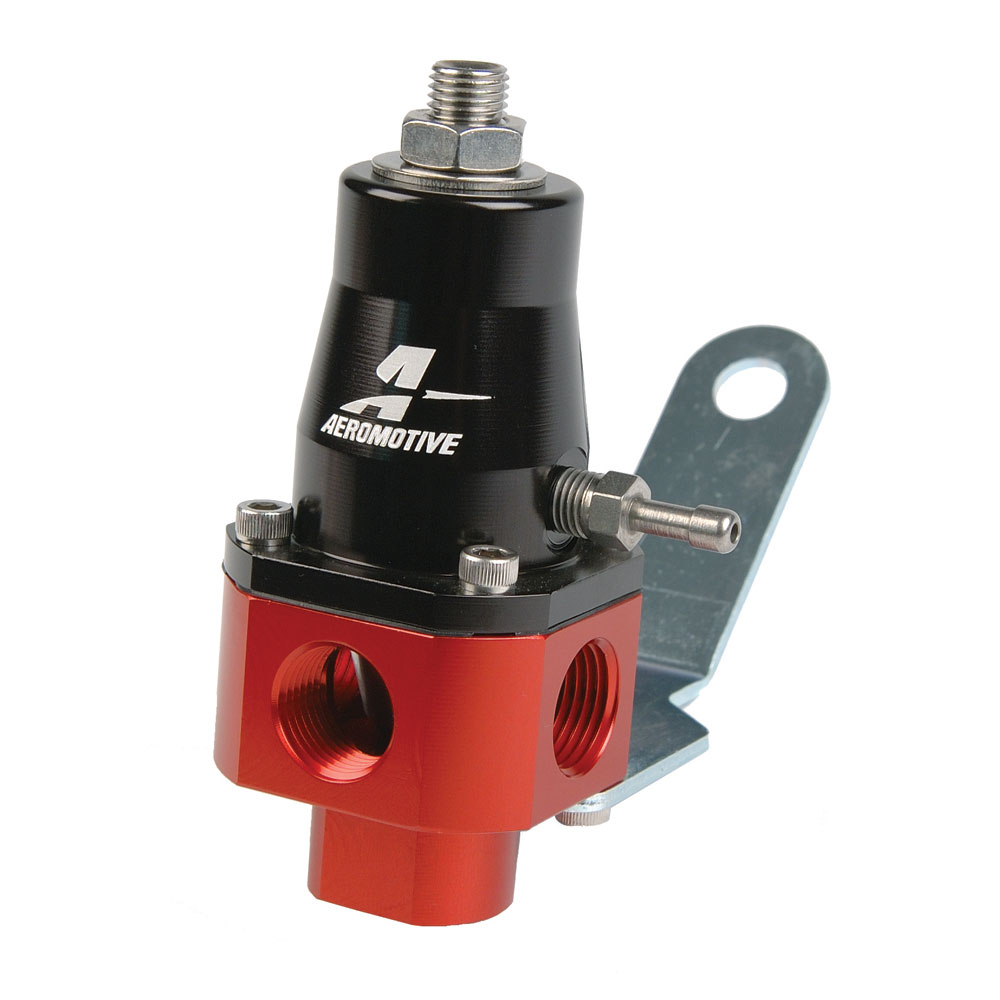

Aeromotive Fuel System Fuel Pressure Regulator 13301; 3 to 60 PSI Return Gasoline, E85, Methanol, Diesel Billet Aluminum
$188.81
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Capable of regulating any fuel pump between 100 and 250 GPH.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- All ports are 3/8" NPT, with one inlet and three outlets on the main body and one return port on the bottom.
- Bypass design provides the ultimate, dynamic fuel pressure control.Note: (Requires a return line to be installed from the bottom of the regulator to the top of the tank.)
Product Description
A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control.?Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Regulator Pressure Range:
- 3 to 60 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, E85, Methanol, Diesel
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Red
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- 3/8 in. NPT
- Number of Outlet Ports:
- 3 Port
- Outlet Port Size:
- 3/8 in. NPT
- Return Port Size:
- 3/8 in. NPT
- Includes Pressure Port:
- No
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
