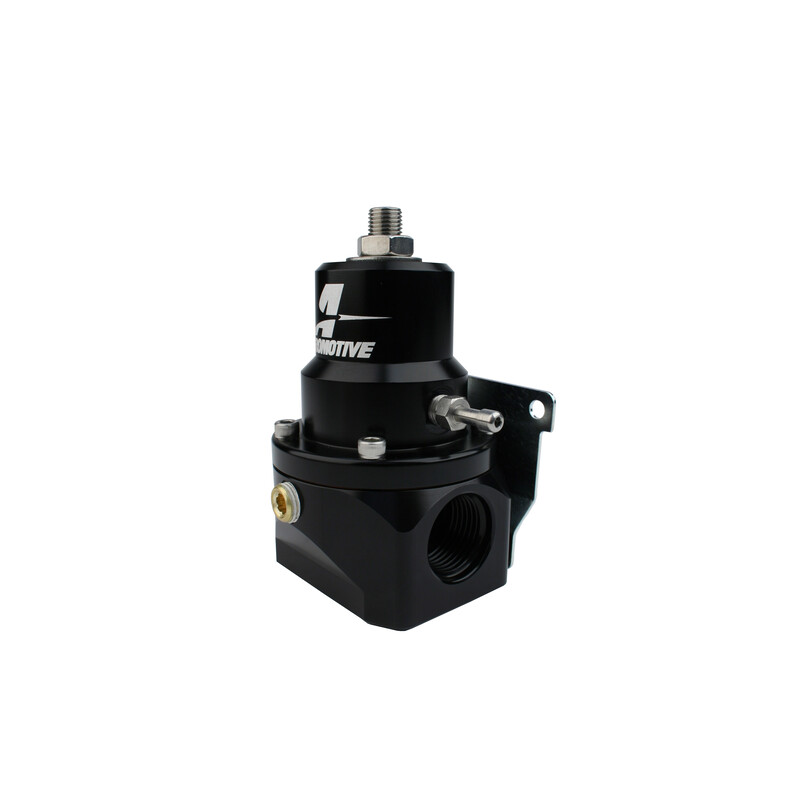

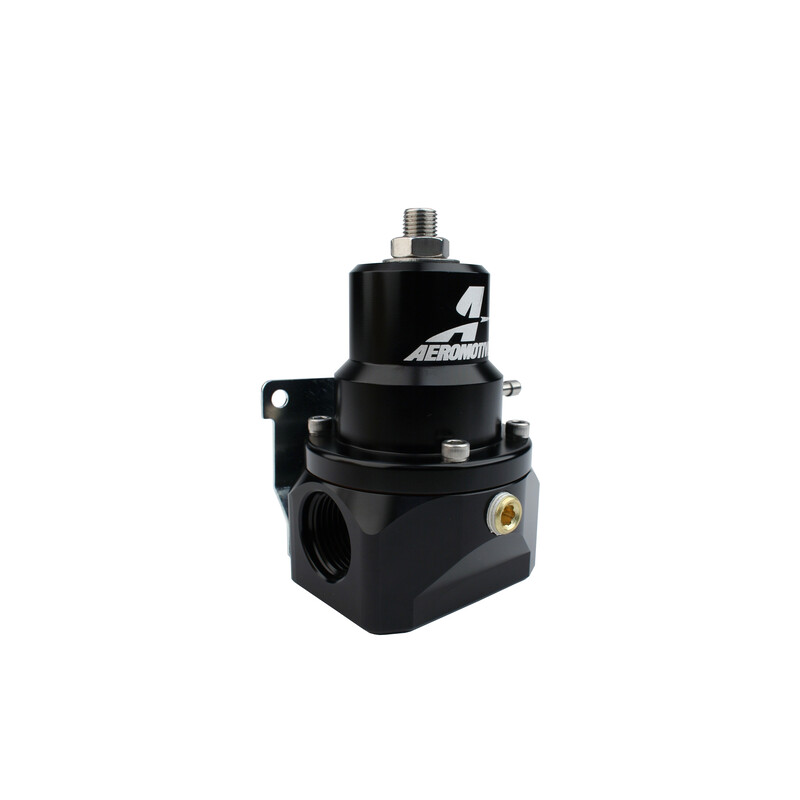

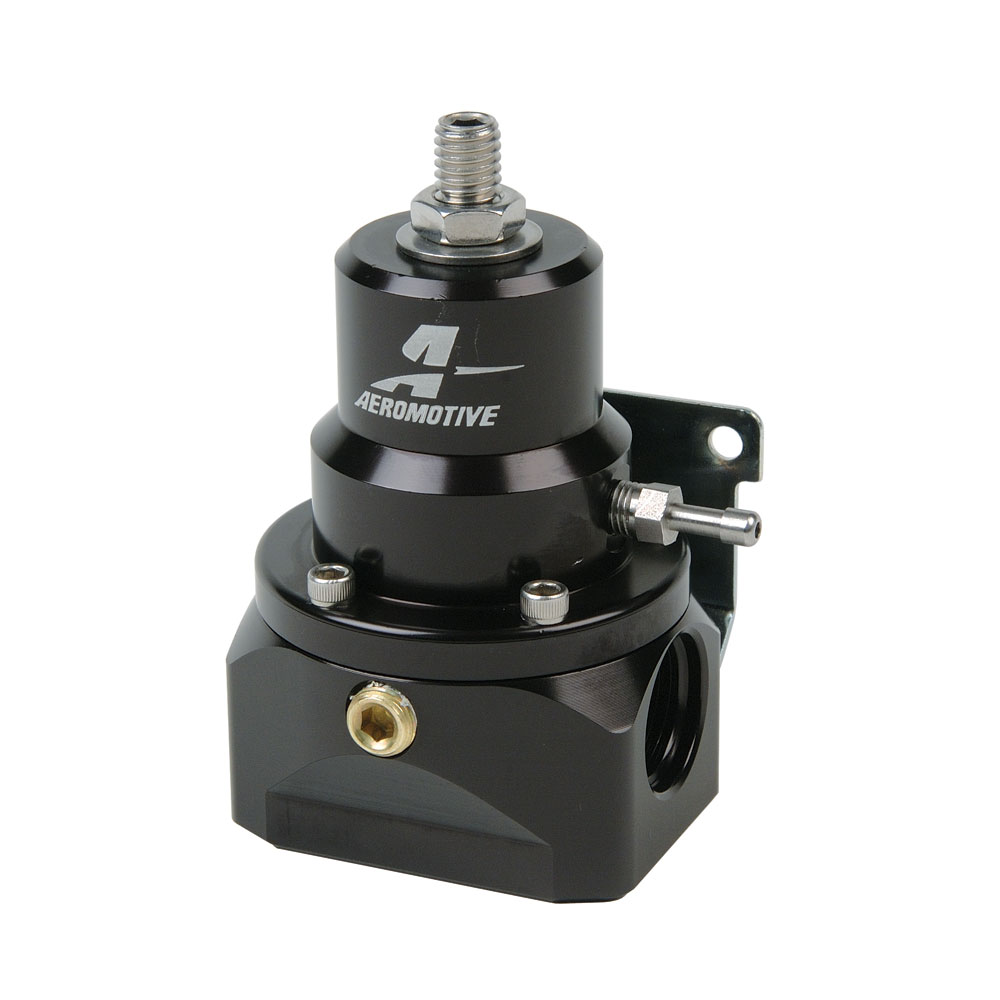

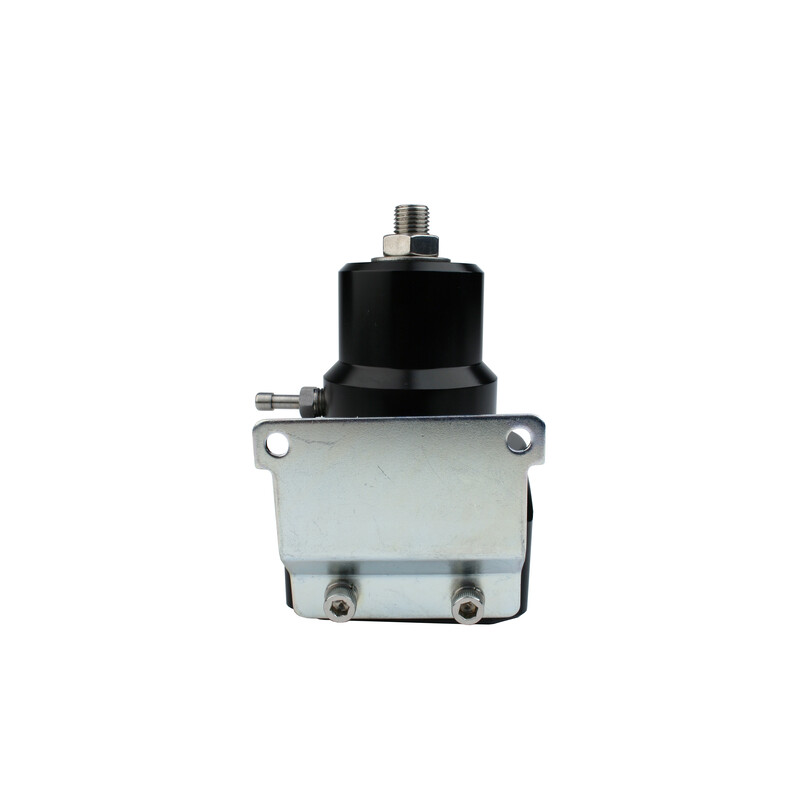

Aeromotive Fuel System Fuel Pressure Regulator 13212; A2000 Carbureted 2 Port 2 to 20 PSI Return Gasoline, Race Gas, E85, Alcohol Billet Aluminum
$246.10
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Adjustable from 2-20 PSI.
- Bypass design provides the ultimate, dynamic fuel delivery system. (Requires AN-10 return line)
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- ORB-10 inlet and return ports.
- P/N 13212 provides (1) ORB-10 outlet port.
- P/N 13212 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17248 or 17250.
- P/N 13212 provides (1) ORB-10 outlet port.
- P/N 13212 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17248 or 17250.
Product Description
Dynamic flow and rock steady pressure make this regulator perfect for naturally aspirated or carbureted blow-through applications. The A2000 Bypass Regulator provides unmatched boost reference and high flow capacity. Compatible with any high volume electric or mechanical fuel pump. Adjustable from 2-20 PSI. Bypass design provides the ultimate, dynamic fuel delivery system. (requires AN-10 return line). Fuel pressure rises on a 1:1 ratio when referencing boost. ORB-10 inlet and return ports. P/N 13212 provides (1) ORB-10 outlet port. P/N 13212 available with fuel log P/N 14201 or 14202, fittings and gauge as P/N 17248 or 17250.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Series:
- A2000 Carbureted 2 Port
- Regulator Pressure Range:
- 2 to 20 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -10AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -10AN ORB Female
- Return Port Size:
- -10AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
