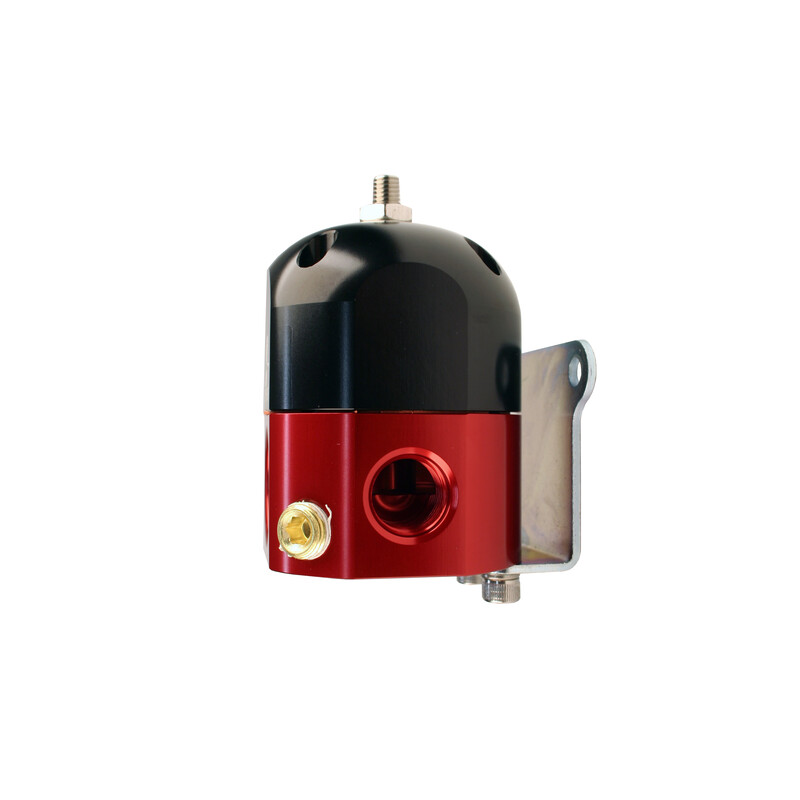

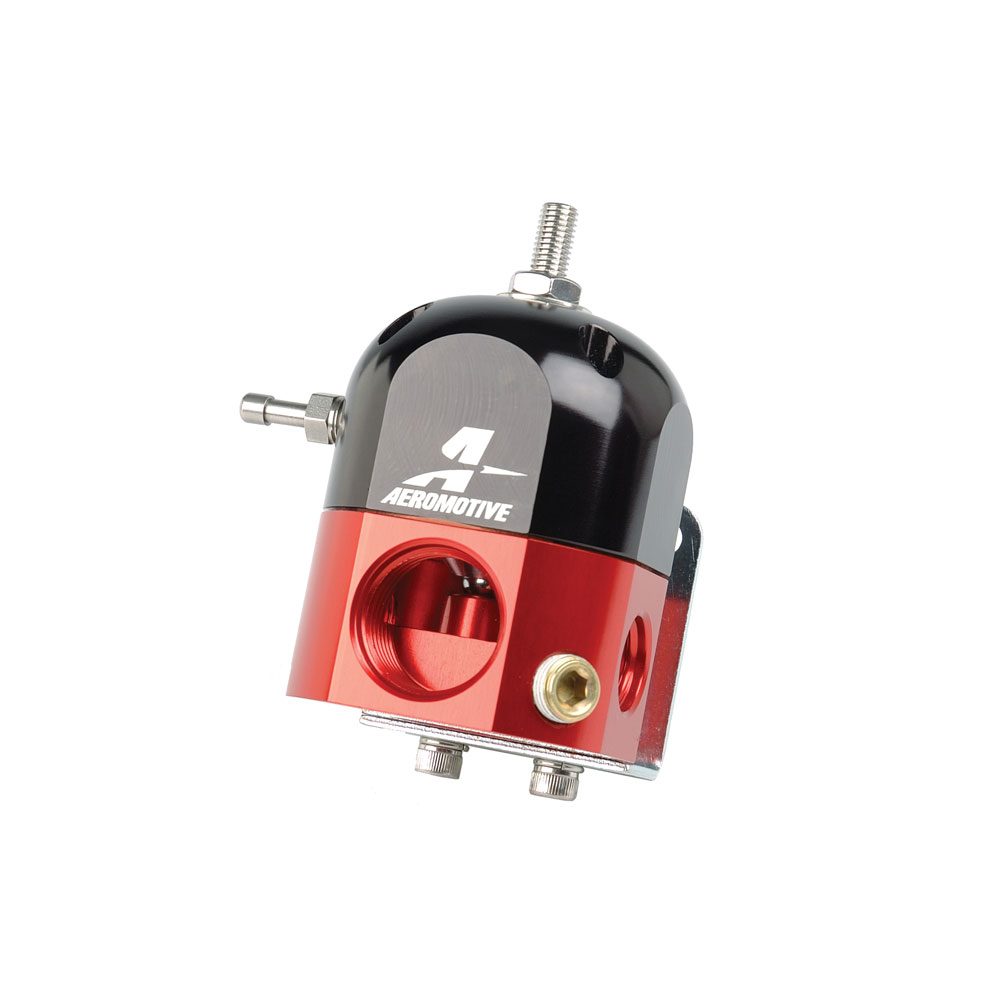

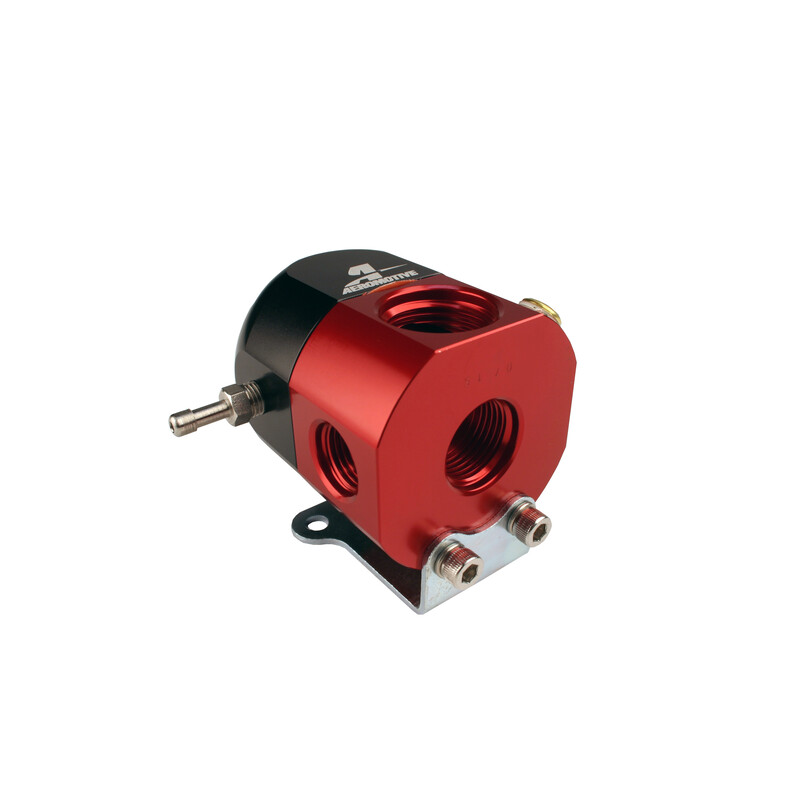

Aeromotive Fuel System Fuel Pressure Regulator 13204; A1000 Carbureted 3 to 15 PSI Return Gasoline, Race Gas, E85, Alcohol Billet Aluminum
$200.33
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Base fuel pressure adjustable from 3-15 PSI.
- (1) ORB-10 inlet port and (1) ORB-08 return port.
- P/N 13204 provides (2) ORB-06 outlet ports and 1/8" NPT gauge port.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- Bypass design provides the ultimate, dynamic fuel delivery system.
- Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
- EFI conversions will require a larger-than-stock return line for proper low pressure control.
- Bypass design provides the ultimate, dynamic fuel delivery system.
- Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
- EFI conversions will require a larger-than-stock return line for proper low pressure control.
Product Description
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Model or Series:
- A1000 Carbureted
- Regulator Pressure Range:
- 3 to 15 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Red
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -10AN ORB Female
- Number of Outlet Ports:
- 2 Port
- Outlet Port Size:
- -06AN ORB Female
- Return Port Size:
- -08AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
