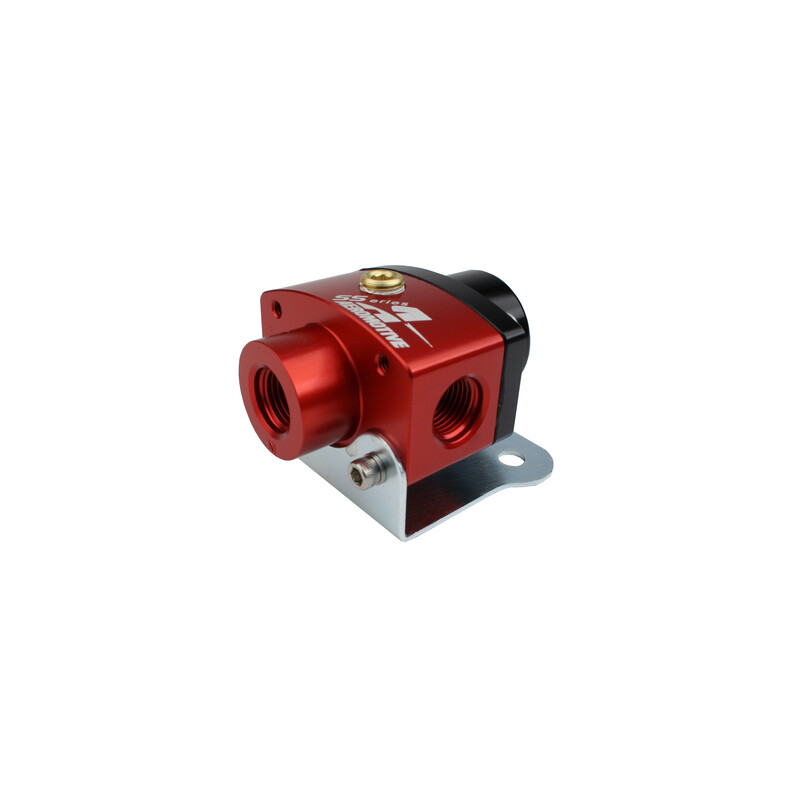

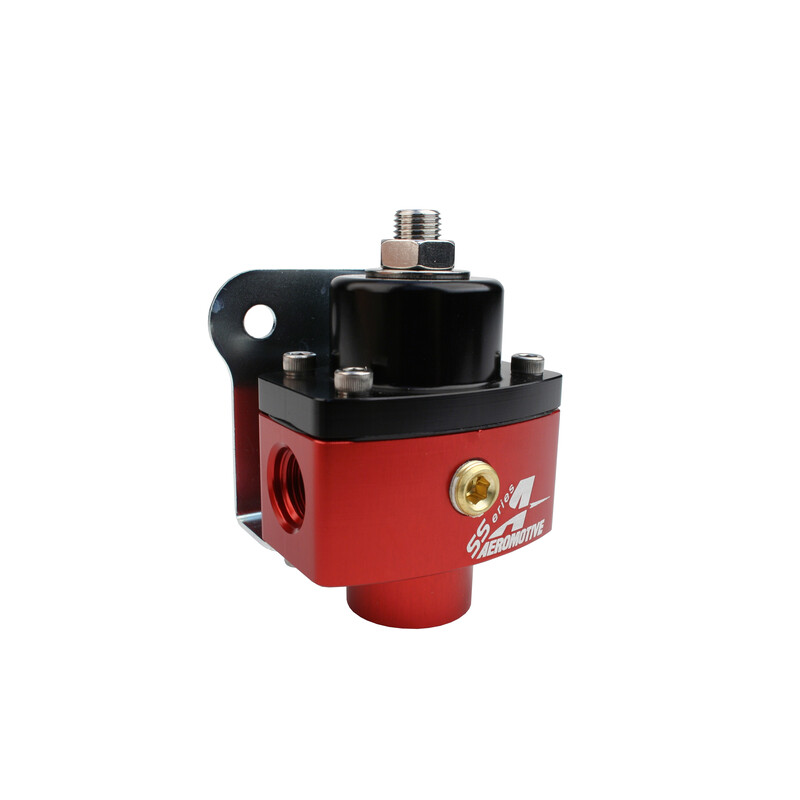

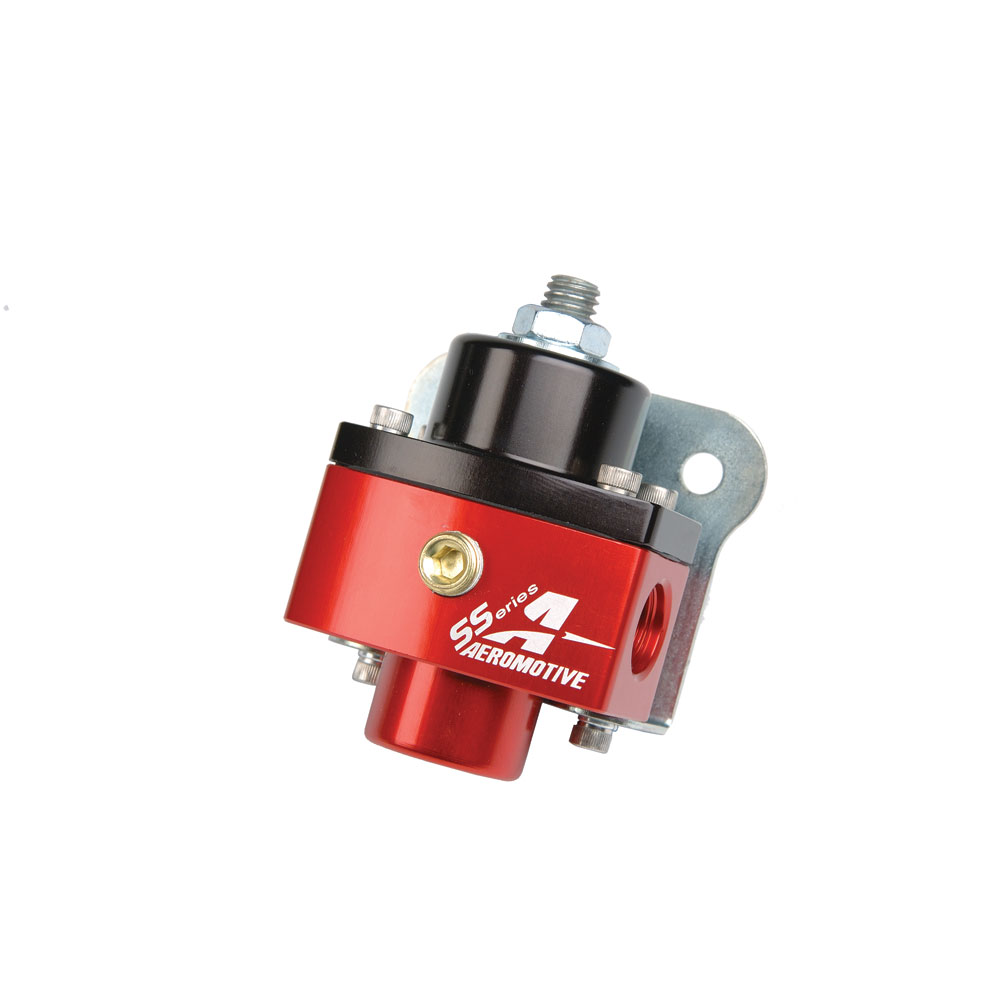

Aeromotive Fuel System Fuel Pressure Regulator 13201; SS Series 5 to 12 PSI Returnless Gasoline Billet Aluminum
$124.76
Part #: 13201
Brand: Aeromotive Fuel System
UPC: 684980000092
Estimated Ship Date: 5/21/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Adjustable from 5-12 PSI.
- P/N 13201 provides ORB-06 inlet and outlet ports.
- 1/8" NPT gauge port.
- Regulators re-seat after the carburetor needle shuts down, preventing pressure creep.
- Includes mounting bracket.
Product Description
Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR? level horsepower and as a dedicated nitrous regulator. Adjustable from 5-10 PSI. P/N 13201 provides ORB-06 inlet and outlet ports. 1/8' NPT gauge port. Regulator re-seats when the needle and seat closes, preventing pressure creep. Includes mounting bracket. Not rated for alcohol fuels, ethanol or methanol.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Model or Series:
- SS Series
- Regulator Pressure Range:
- 5 to 12 PSI
- Regulator Style:
- Returnless
- Compatible Fuels:
- Gasoline
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Red
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -06AN ORB Female
- Number of Outlet Ports:
- 2 Port
- Outlet Port Size:
- -06AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- No
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
