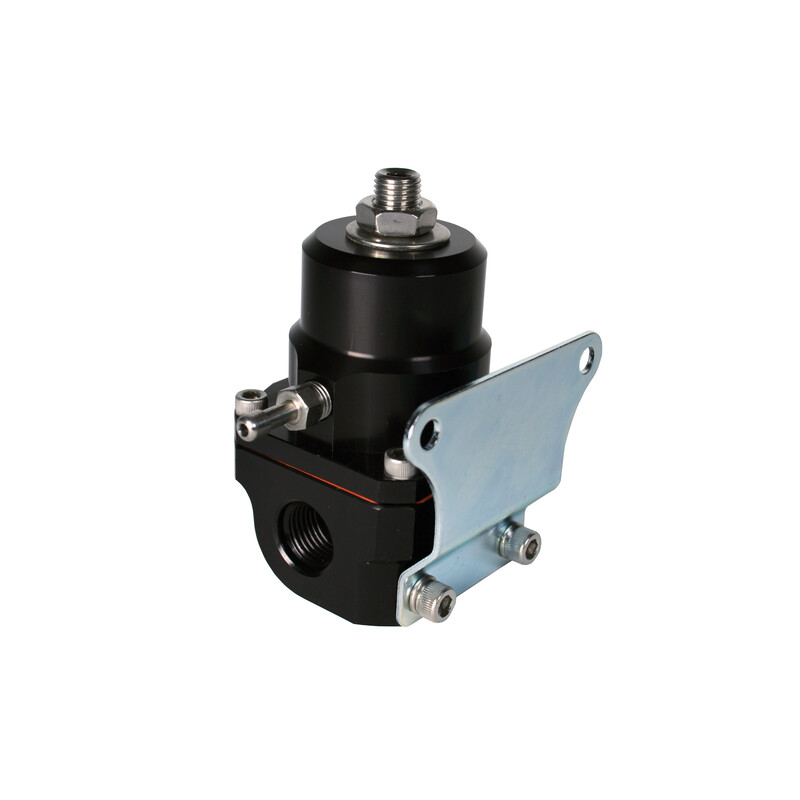

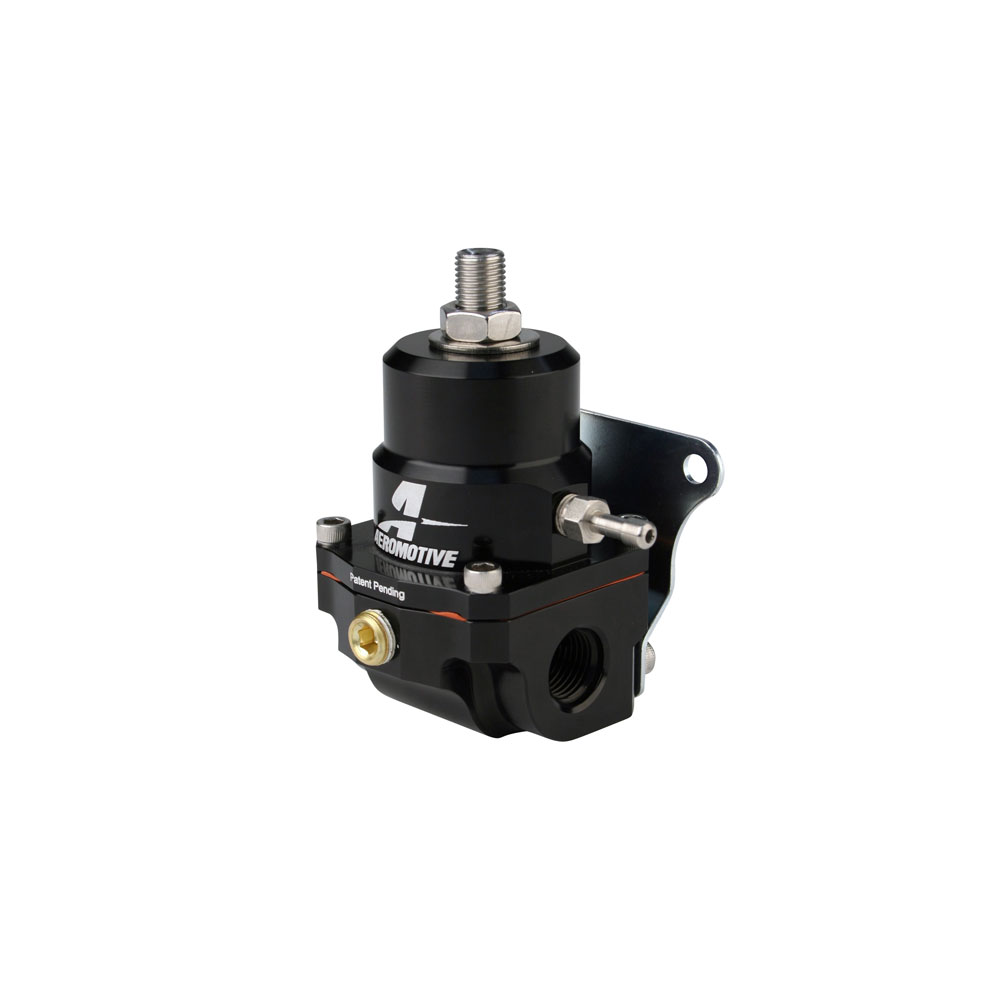

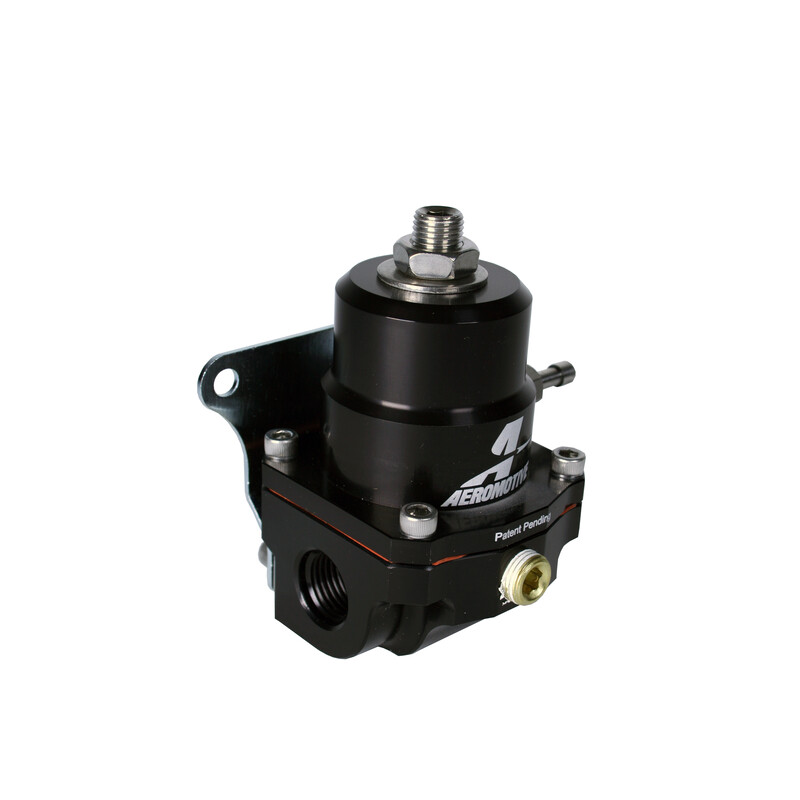

Aeromotive Fuel System Fuel Pressure Regulator 13138; A1000 Gen II 40 to 75 PSI Return Gasoline, Ethanol, Methanol, Diesel Billet Aluminum
$226.51
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description
A1000 -06 Gen-II EFI Regulator. 40-70 PSI EFI Regulator with ORB-06 ports. High Performance, adjustable EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive's high-flow design, superb pressure control and legendary durability. Engineered for A1000 class and smaller pumps. Gas, ethanol, methanol and diesel compatible. 40-75 PSI adjustable base pressure range. 1:1 vacuum/boost reference capability. 1/8 NPT dedicated gauge port. (2) ORB-06 inlet/outlet ports. (1) ORB-06 return port. Recommended Fittings for inlet/outlet and return ports: P/N 15606 ORB-06 to AN-06 for AN-06 fuel line. P/N 15649 ORB-06 to AN-08 for AN-08 fuel line.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Model or Series:
- A1000 Gen II
- Regulator Pressure Range:
- 40 to 75 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Ethanol, Methanol, Diesel
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -06AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -06AN ORB Female
- Return Port Size:
- -06AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
