Aeromotive Fuel System Fuel Pressure Regulator 13134; Extreme Flow EFI 30 to 120 PSI Return Gasoline, Race Gas, E85, Alcohol Billet Aluminum
$251.47
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description

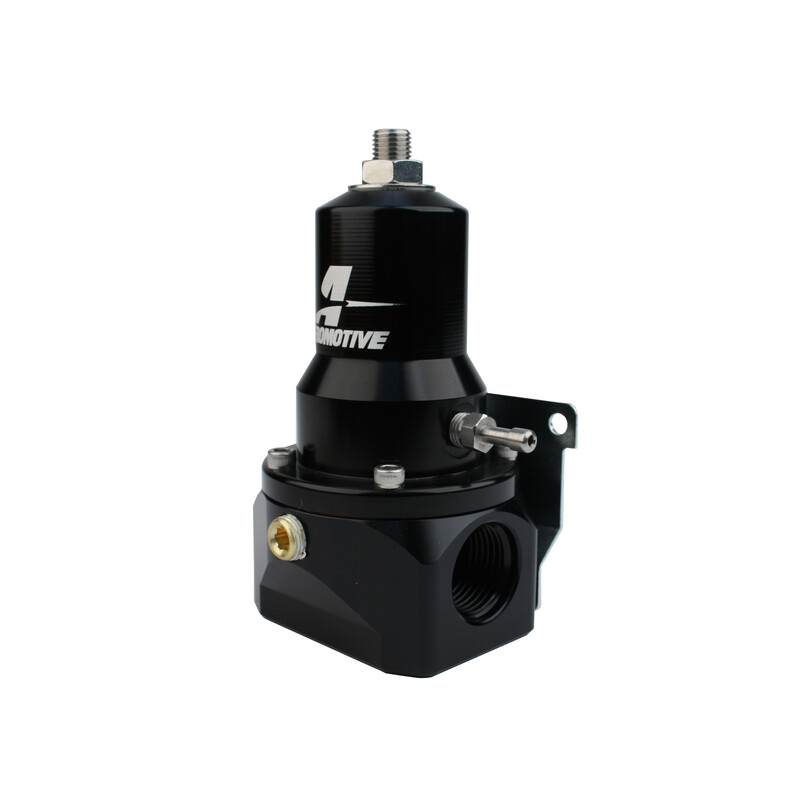

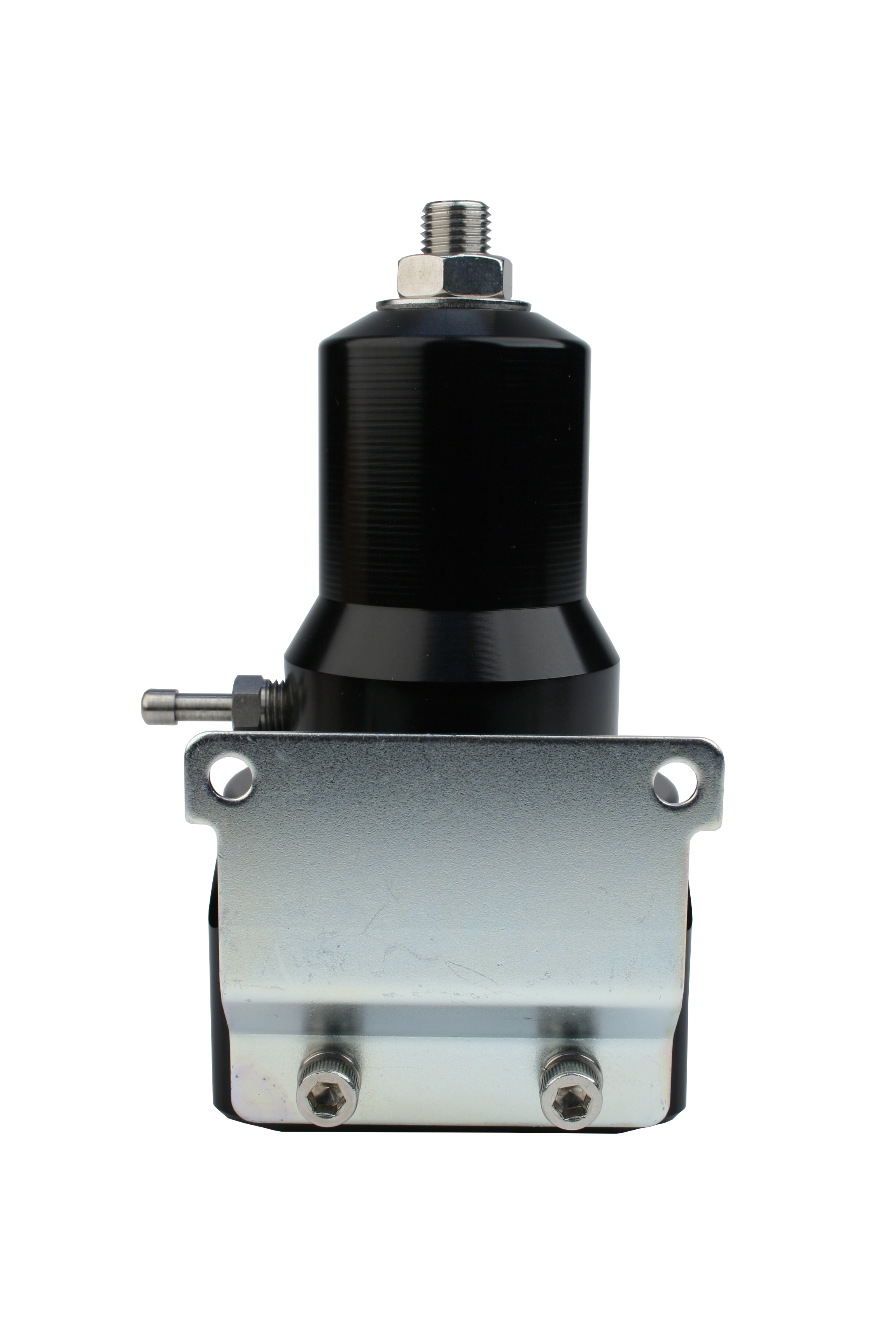

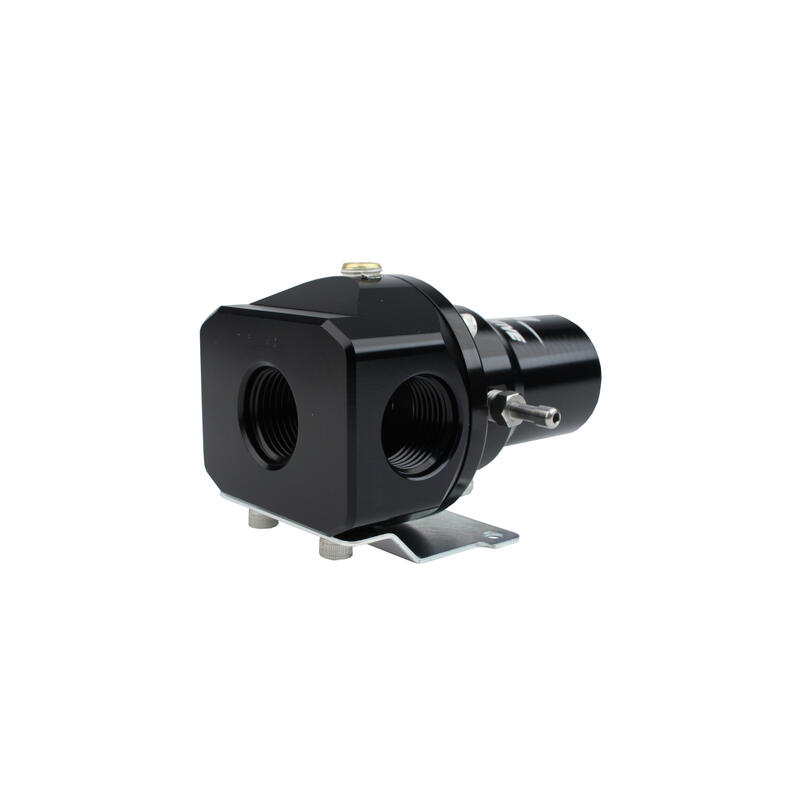

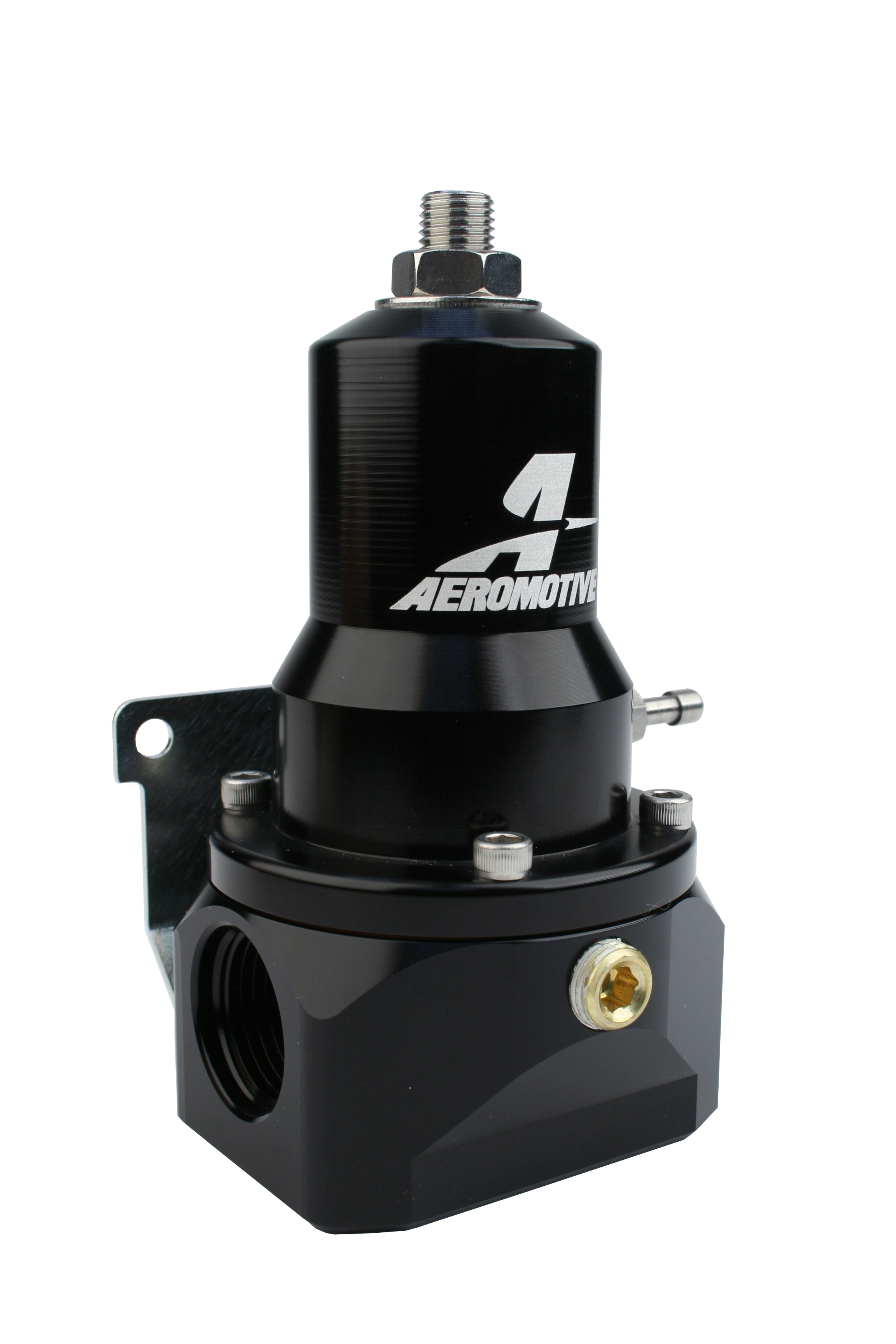

Extreme Flow EFI Regulator Designed for use with Eliminator, Pro Pump, and Dual A1000 fuel system. Compact 2-port body with dual AN-10 inlet/outlet ports and one AN-10 return port. 0.313 High Flow Valve/Seat, able to handle 3-9 GPM Fuel Pump. Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Series:
- Extreme Flow EFI
- Regulator Pressure Range:
- 30 to 120 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -10AN ORB Female
- Number of Outlet Ports:
- 2 Port
- Outlet Port Size:
- -10AN ORB Female
- Return Port Size:
- -10AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Notes:
- Supports 3-9 gpm pumps. Comes with 2 springs - 30-75psi installed and 75-120psi.
- Quantity:
- Sold As Each
