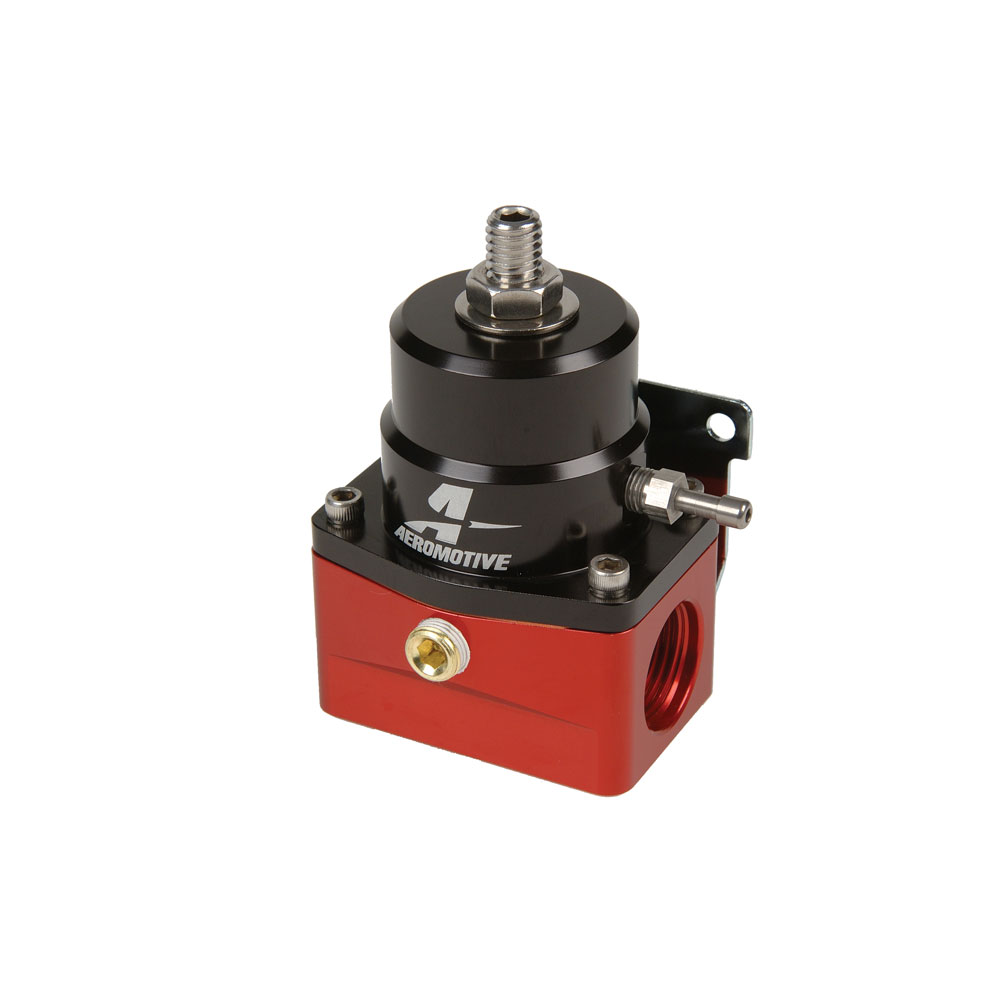

Aeromotive Fuel System Fuel Pressure Regulator 13101; A1000 EFI 40 to 75 PSI Return Gasoline, Race Gas, E85, Alcohol Billet Aluminum
$188.81
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Base pressure adjustable from 40-75 PSI.
- Gasoline and alcohol compatible.
- Fuel pressure rises on a 1:1 ratio with boost.
- 1/8" NPT gauge port.
- P/N 13101 provides (2) ORB-10 inlet ports and (1) ORB-06 return port.
Product Description
Performance EFI regulator designed for medium to high horsepower applications. This regulator features Aeromotive?s high-flow design, superb pressure control, and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline, ethanol and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8' NPT gauge port. P/N 13101 provides (2) ORB-10 inlet ports and (1) ORB-06 return port.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Model or Series:
- A1000 EFI
- Regulator Pressure Range:
- 40 to 75 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Red
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -10AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -10AN ORB Female
- Return Port Size:
- -06AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
