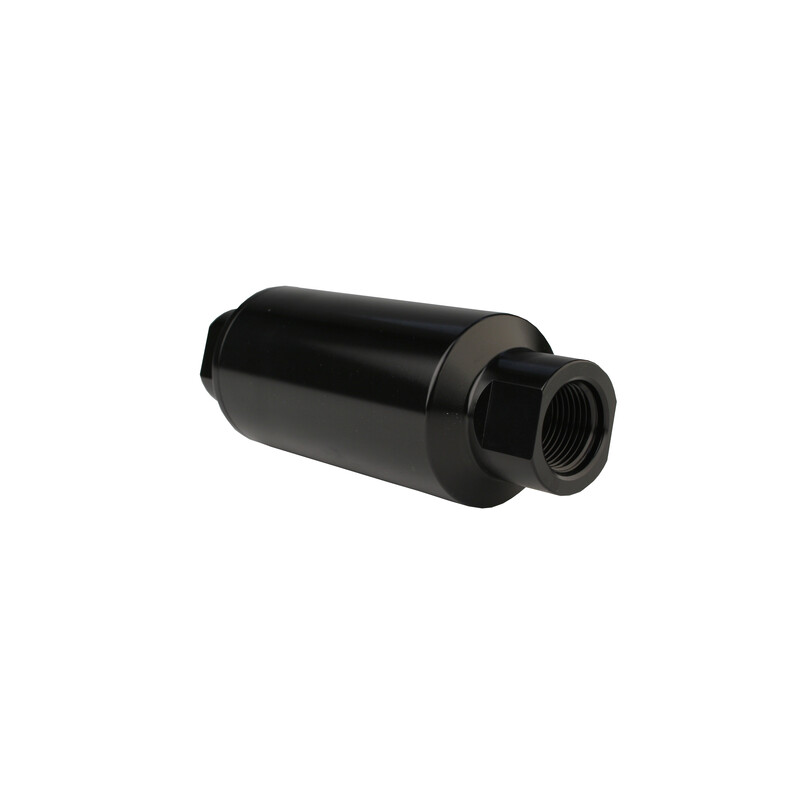

Aeromotive Fuel System Fuel Filter 12324; -10AN ORB Female 100 Micron Black Anodized Aluminum
$178.29
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details

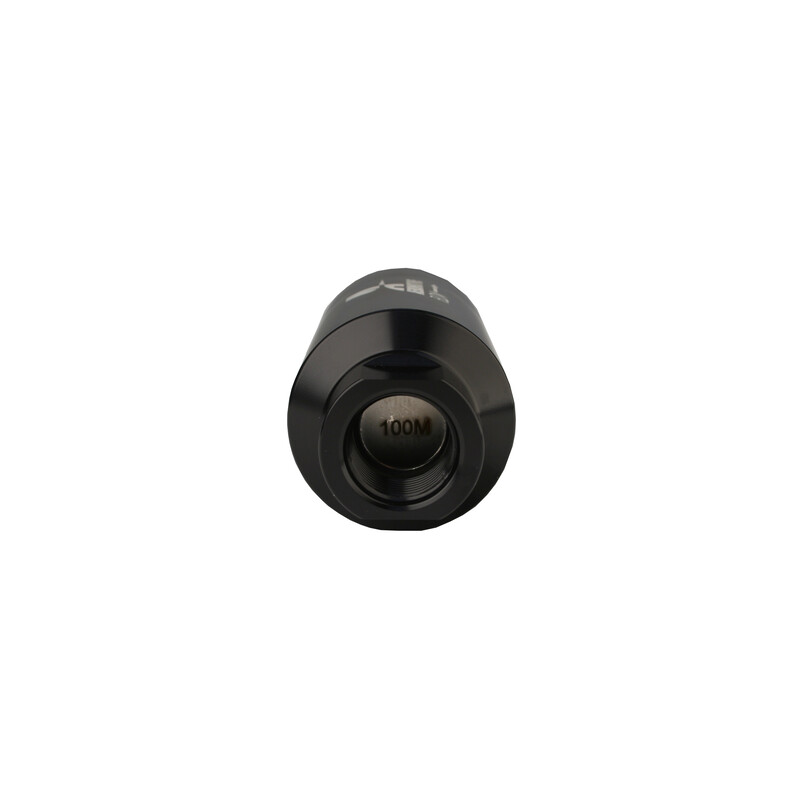

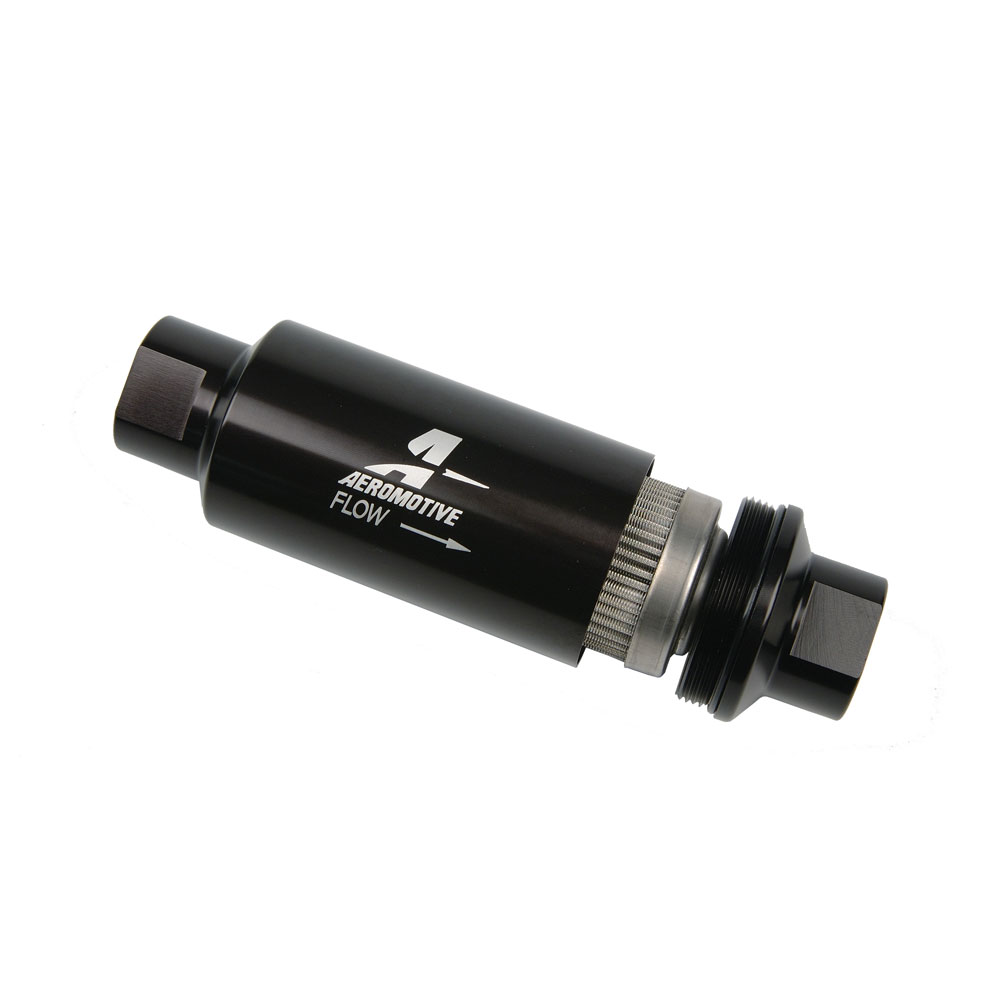

- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.
- Compact size: 5.5" long x 2" diameter
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Bright dip black anodized finish for a corrosion resistant, show car quality appearance.
- All filter assemblies feature an O-ring for positive sealing in high pressure applications.
- CNC-machined from 6061-T6 aircraft aluminum.
- Bright dip black anodized finish for a corrosion resistant, show car quality appearance.
Product Description
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than 1 psi. Compact size: 5.5? long x 2? diameter. ORB-10 ports. CNC-machined from 6061 T6 aircraft aluminum. Bright dip black anodized finish for a corrosion resistant, show quality appearance.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Compatible Fuels:
- Gasoline, E85, Methanol, Diesel
- Filtration Size:
- 100 Micron
- Element Type:
- Stainless Steel Mesh
- Inlet Port:
- -10AN ORB Female
- Outlet Port:
- -10AN ORB Female
- Length:
- 5.500 in.
- Diameter:
- 2.000 in.
- Finish:
- Black Anodized
- Housing Material:
- Aluminum
- Fuel Filter Style:
- Inline
- Includes Filter Bracket:
- No
- Max Fuel Pressure:
- 250 PSI
- Pre or Post Pump:
- Pre
- Quantity:
- Sold As Each
