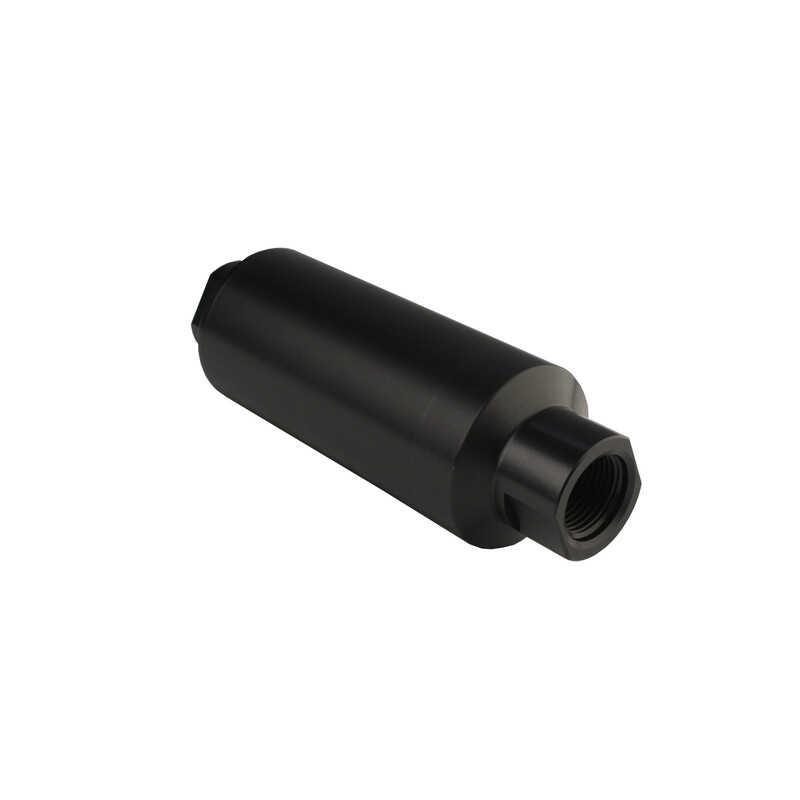

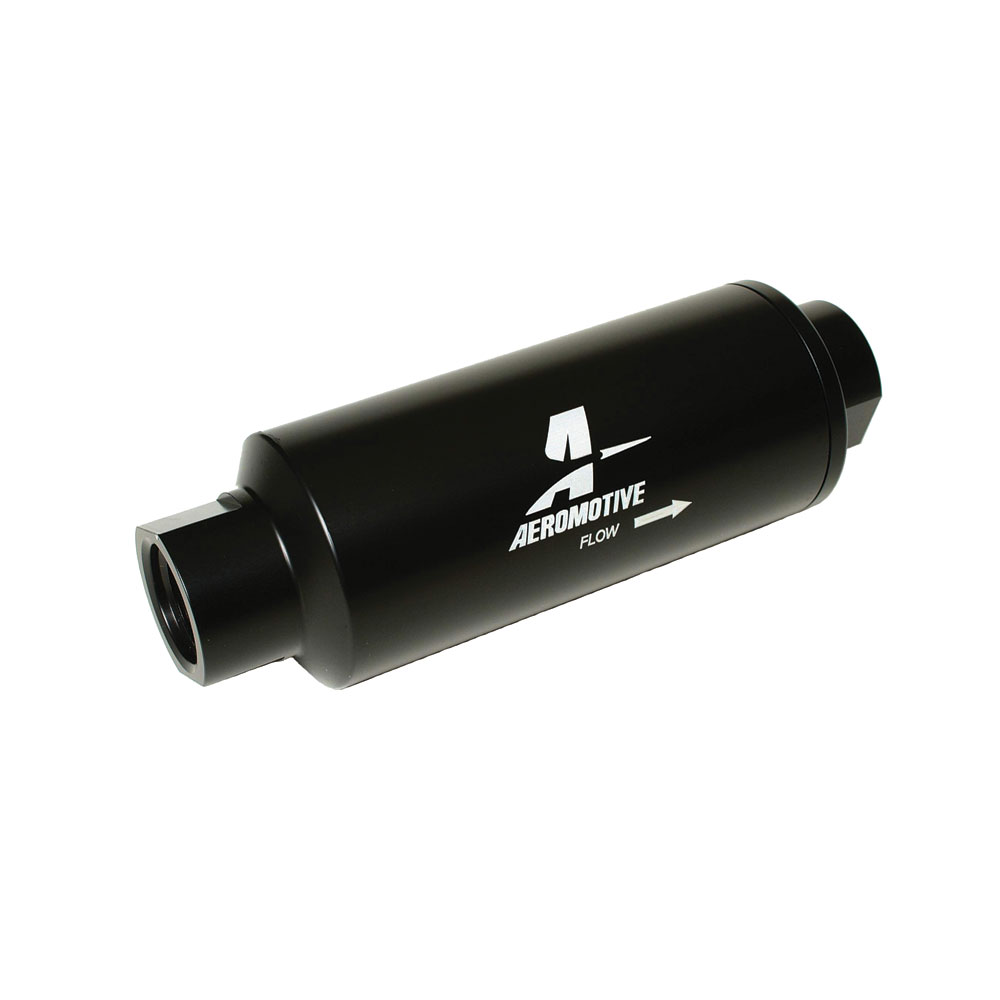

Aeromotive Fuel System Fuel Filter 12309; Marine -12AN ORB Female 100 Micron Hardcoat Black Anodized Aluminum

$267.25

Part #: 12309

Brand: Aeromotive Fuel System

UPC: 684980002041

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

"High-flow 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. 7"" long x 2.5"" diameter."WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Fuel Filter Series:
Marine
Compatible Fuels:
Gasoline, E85, Methanol, Diesel
Filtration Size:
100 Micron
Element Type:
Stainless Steel Mesh
Inlet Port:
-12AN ORB Female
Outlet Port:
-12AN ORB Female
Length:
7.000 in.
Diameter:
2.500 in.
Finish:
Hardcoat Black Anodized
Housing Material:
Aluminum
Fuel Filter Style:
Inline
Includes Filter Bracket:
No
Max Fuel Pressure:
400 PSI
Pre or Post Pump:
Pre
Quantity:
Sold As Each
