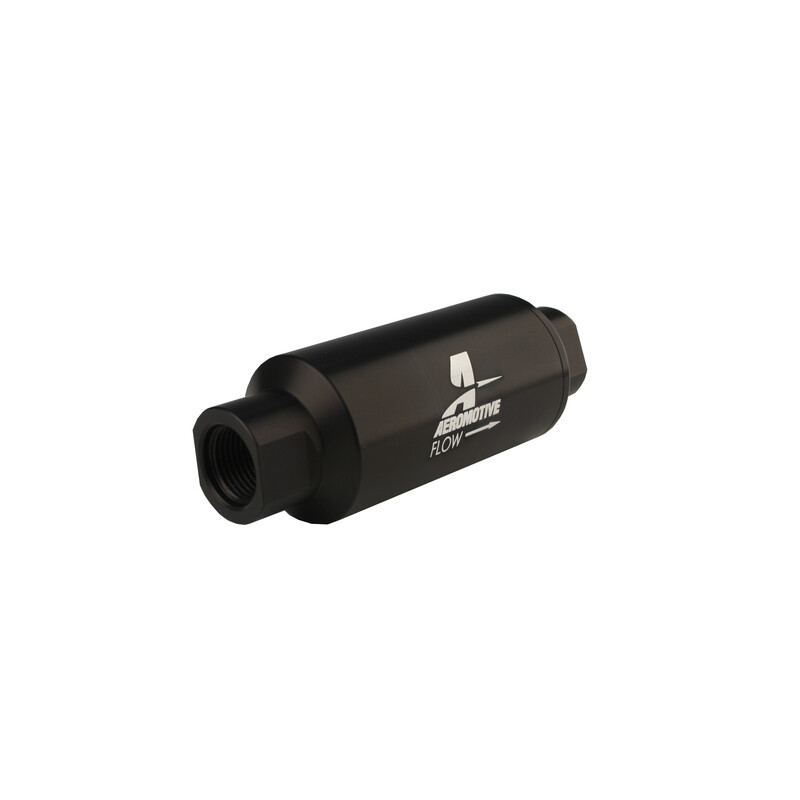

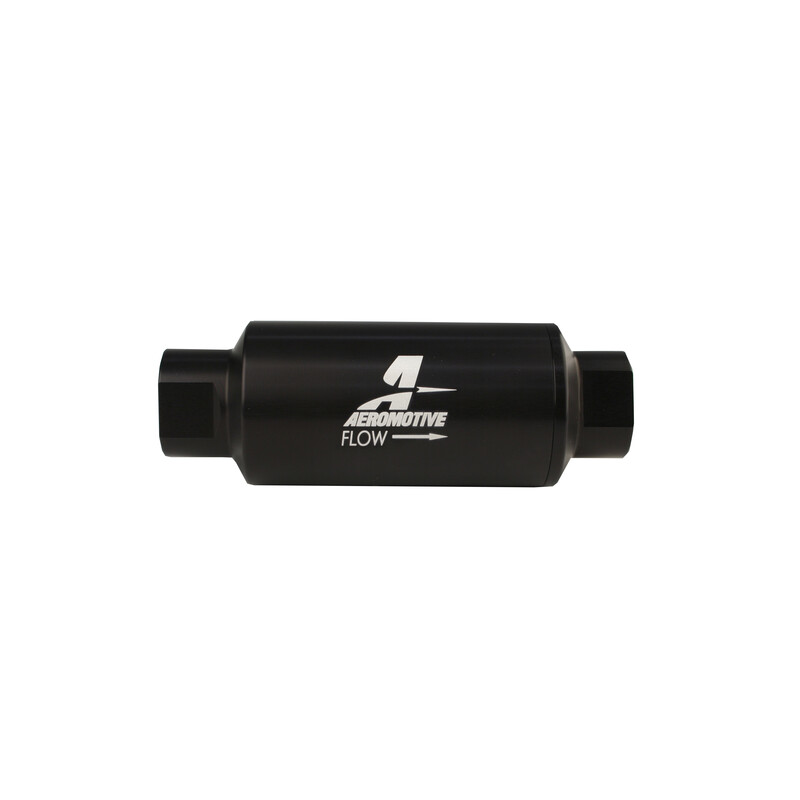

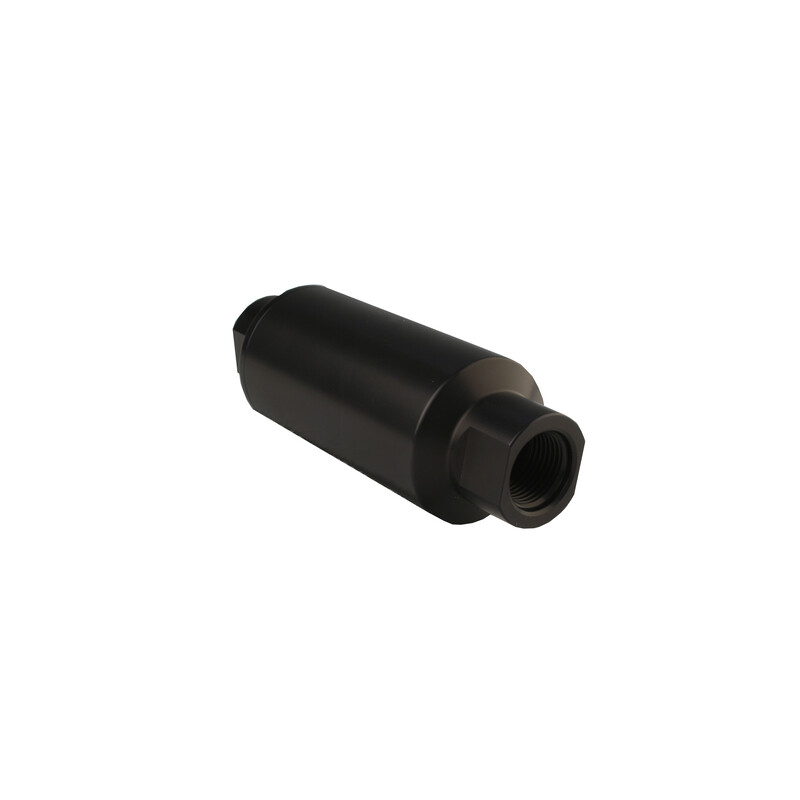

Aeromotive Fuel System Fuel Filter 12307; Marine Gasoline, E85, Methanol, Diesel 100 Micron Hardcoat Black Anodized Stainless Steel Mesh

$194.24

Part #: 12307

Brand: Aeromotive Fuel System

UPC: 684980001952

Estimated Ship Date: 5/27/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

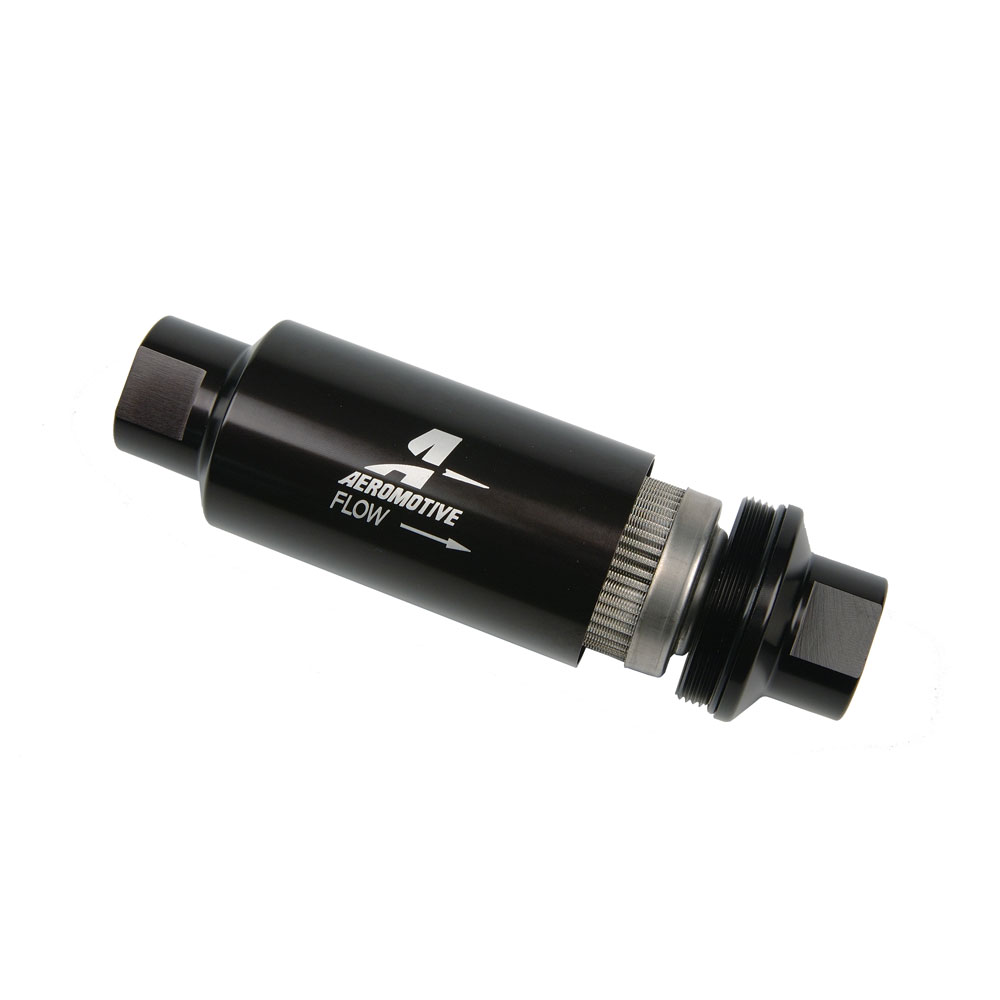

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components. High 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-10 ports. Fittings available to adapt these filters to AN-10, -08, and -06 line sizes. Compact size: 5.5? long x 2? diameter.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Fuel Filter Model or Series:
Marine
Compatible Fuels:
Gasoline, E85, Methanol, Diesel
Filtration Size:
100 Micron
Element Type:
Stainless Steel Mesh
Inlet Port:
-10AN ORB Female
Outlet Port:
-10AN ORB Female
Length:
5.500 in.
Diameter:
2.000 in.
Finish:
Hardcoat Black Anodized
Quantity:
Sold As Each
