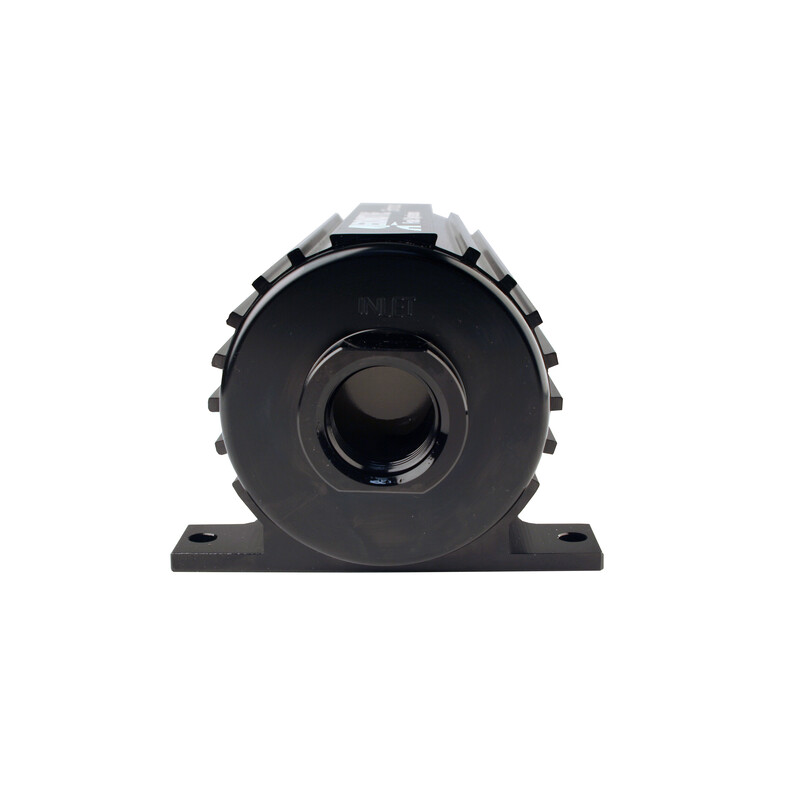

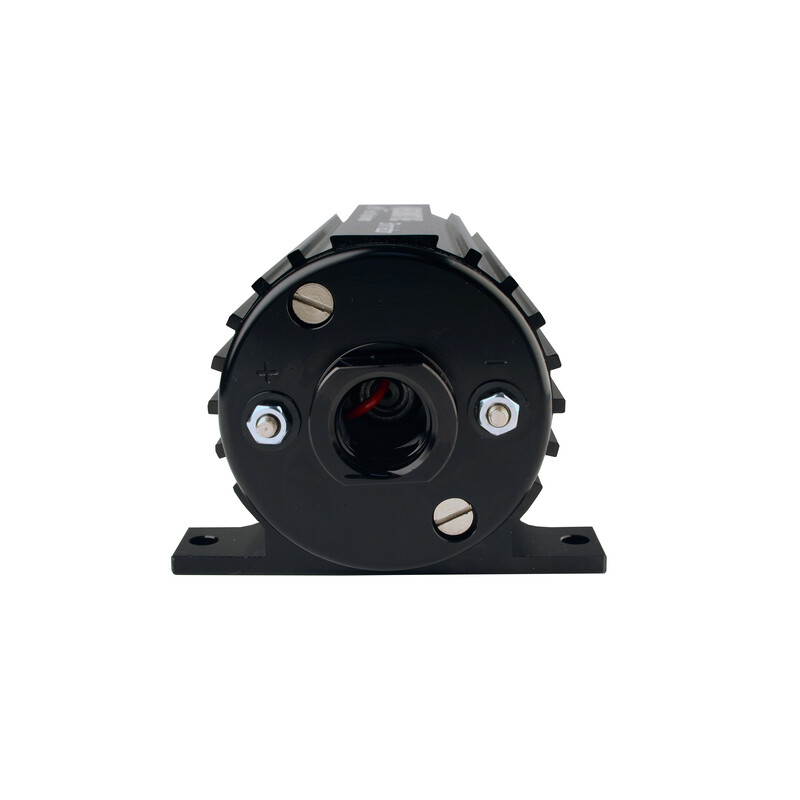

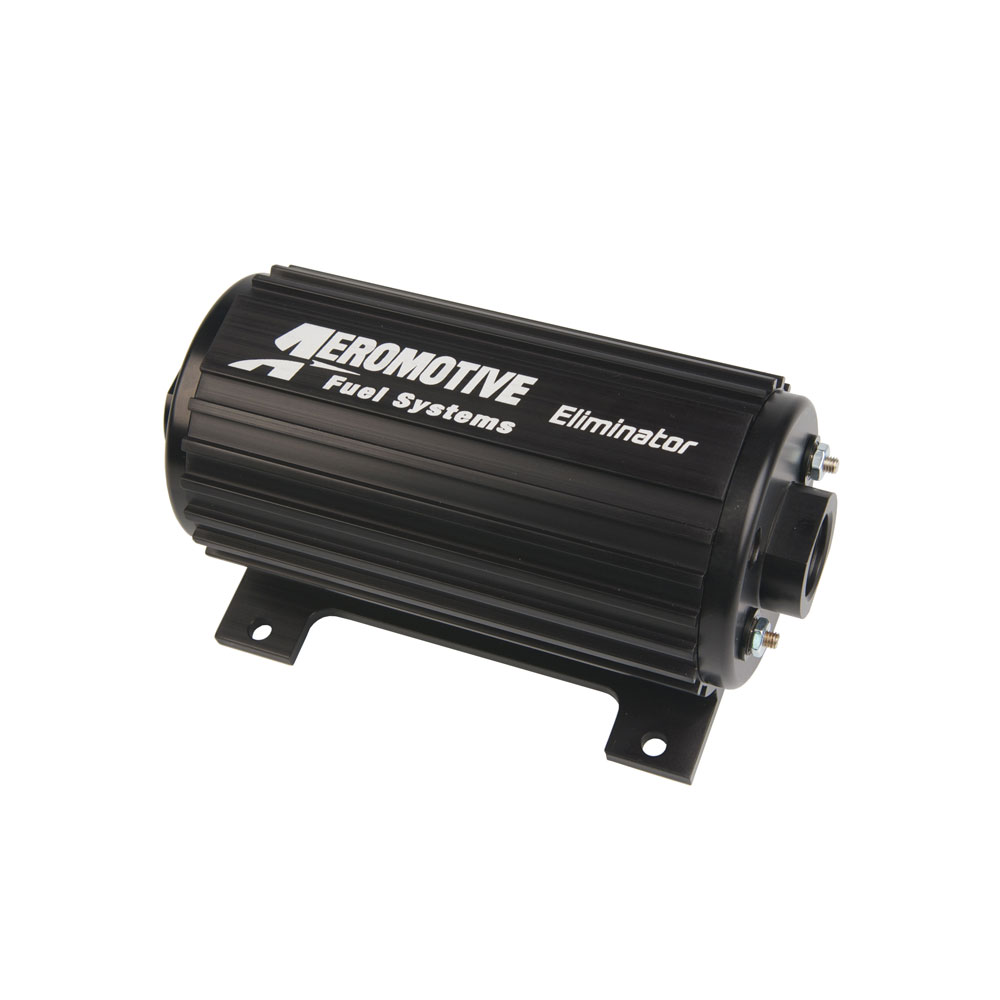

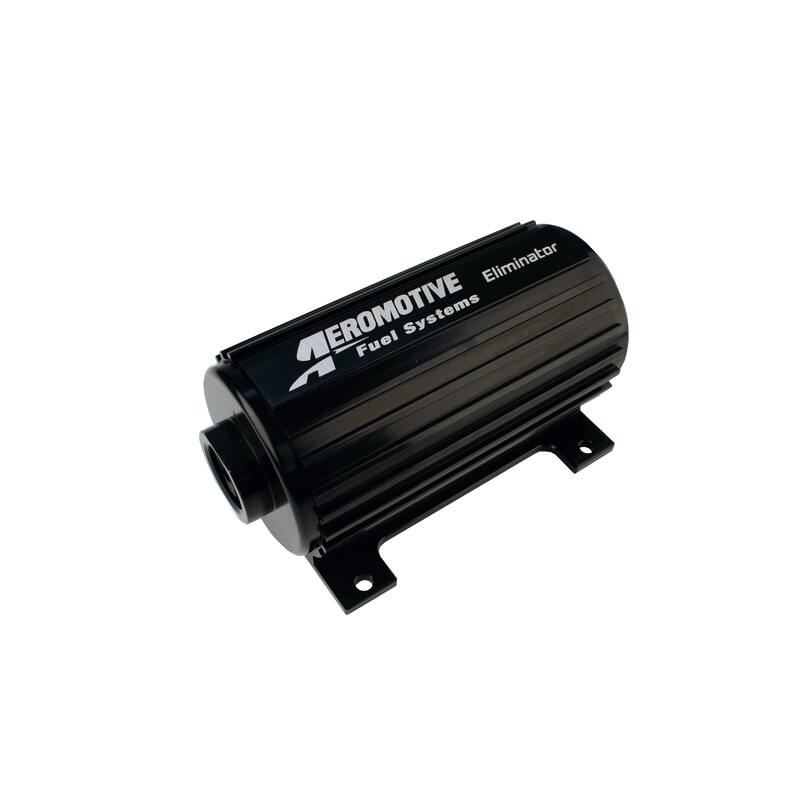

Aeromotive Fuel System Electric Fuel Pump 11104; Eliminator 1300 lbs/hr. @ 8 PSI 900 lbs/hr. @ 70 PSI Black Billet Aluminum Alcohol, E85, Gasoline, Race Gas

$644.08

Part #: 11104

Brand: Aeromotive Fuel System

UPC: 684980000337

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Certifi ed to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
  • Compatible with all pump and racing gasoline and high grade diesel fuels.
  • ORB-12 inlet and ORB-10 outlet ports
  • For EFI applications use regulator P/N 13114, carbureted P/N 13207
  • 25% more flow at pressure than our Marine A1000 Fuel Pump.
  • Qualifi ed to run continuously for over 2,000 hours.
  • Full, 2 year, factory direct warranty.

Product Description

Certified to ISO 8846, SAE J1171; United States Coast Guard Requirements for Ignition Protection; Fire Resistance. Carbureted Engines: up to 2300 HP naturally aspirated and up to 1700 HP forced air induction. Fuel Injected Engines: up to 1900 HP naturally aspirated and up to 1400 HP forced air induction.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Electric Fuel Pump Series:
Eliminator
Compatible Fuels:
Alcohol, E85, Gasoline, Race Gas
Volume (Standard Pressure):
1300 lbs/hr. @ 8 PSI
Volume (High Pressure):
900 lbs/hr. @ 70 PSI
Fuel Pump Material:
Billet Aluminum
Fuel Pump Finish:
Black
Inlet Port:
-12AN ORB Female
Outlet Port:
-10AN ORB Female
Horsepower Rating:
1900 HP (EFI) 2300 HP (Carb)
Bypass:
No
Includes Fuel Level Sending Unit:
No
Includes Seals:
No
Includes Strainer:
No
Includes Mounting Bracket:
Yes
Bracket Material:
Aluminum
Bracket Finish:
Black
Quantity:
Sold As Each

Videos

Tech Resources

  • 111-0422-0revG.pdf

Alternative Parts

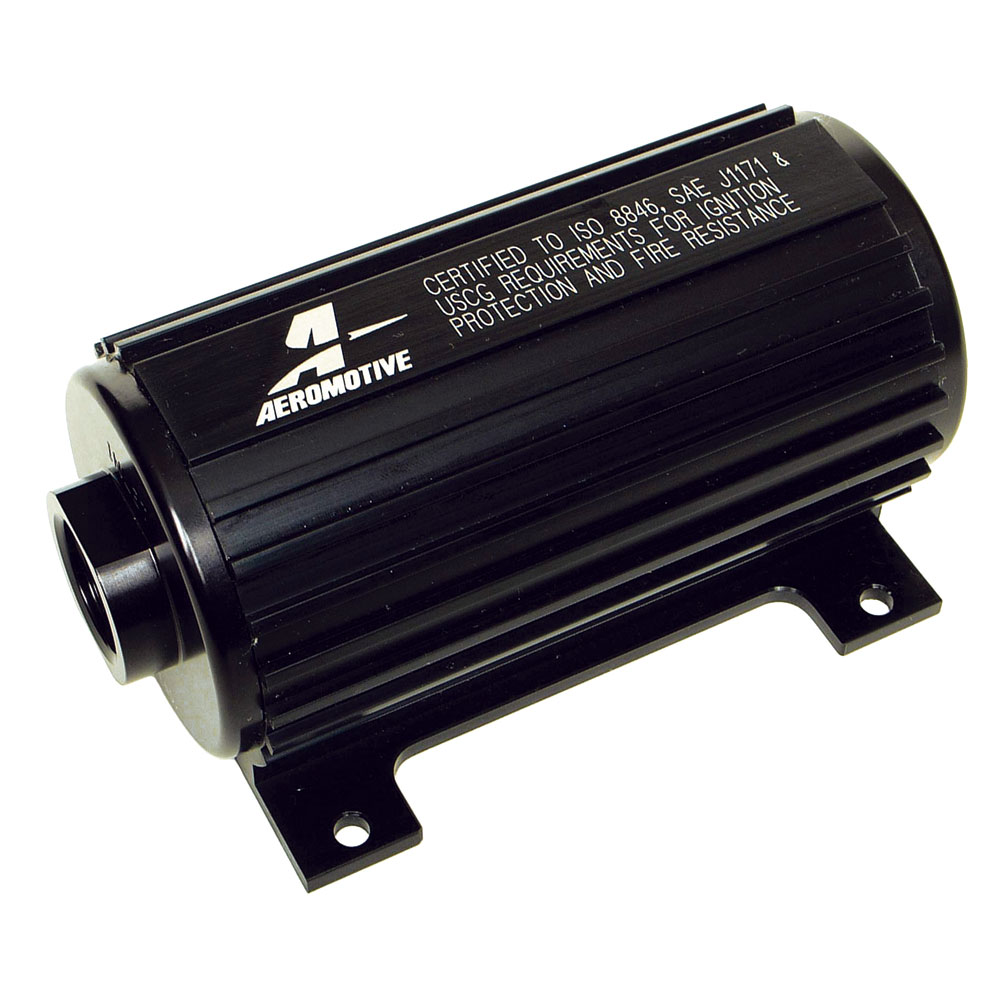

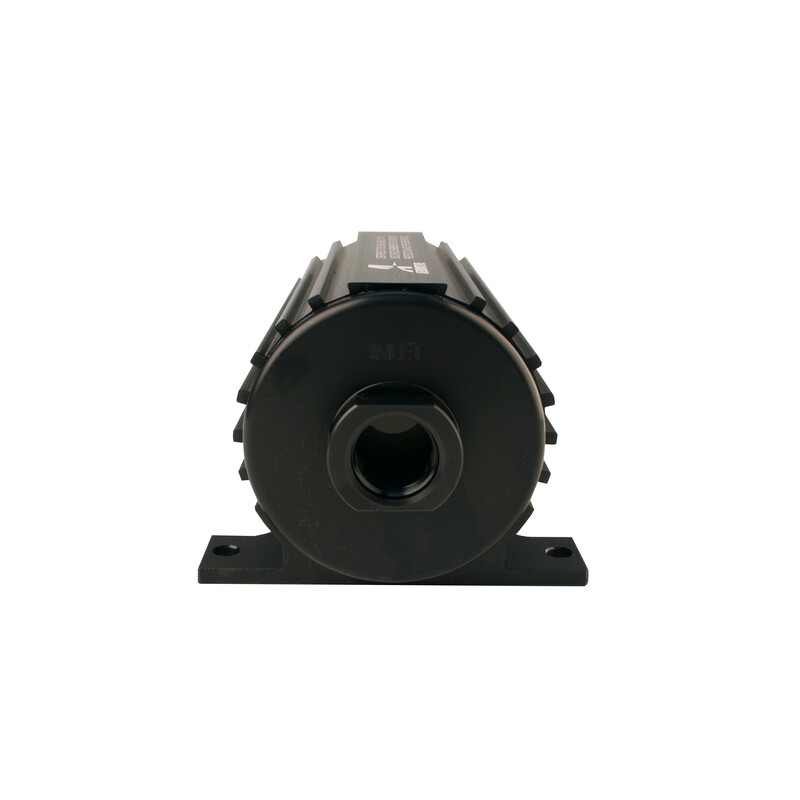

Aeromotive Fuel System Electric Fuel Pump 11110; Eliminator 800 lbs/hr. @ 100 PSI Alcohol, E85, Gasoline, Race Gas
