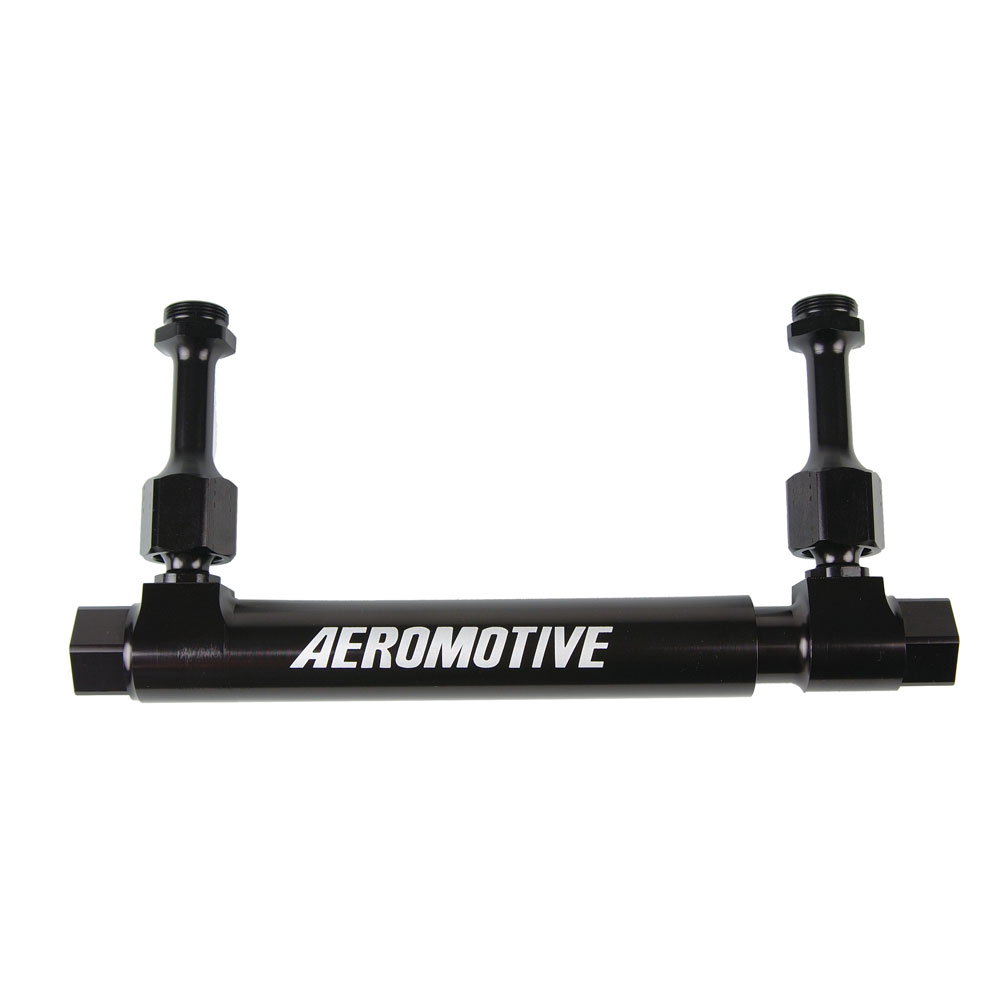

Aeromotive Fuel System Carburetor Fuel Log 14201; Holley 4150, 4500 7.700 to 13.450 in. Black Anodized Aluminum

$388.48

Part #: 14201

Brand: Aeromotive Fuel System

UPC: 684980001280

Estimated Ship Date: Special Order

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Carburetor inlets swivel + or - 20ยบ in all directions.
  • Telescoping center line 7.700" to 13.450".
  • ORB-10 inlet and outlet ports.
  • (2) 1/8" NPT ports for gauges or pressure transducers.
  • 1.056 / .806" ID bore.
  • Type II bright dip black anodized finish.

Product Description

Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised. Threaded with 7/8? ? 20 with flat gasket for proper sealing on carburetors like the standard Holley and those with similar float bowls. Carburetor inlets swivel + or ? 20 degrees in all directions for optimum clearance from valve cover and intake runners. Telescoping center line is 7.700? to 13.450? adapts to standard and high capacity float bowls. ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings. Two 1/8? NPT ports for gauges and/or pressure transducers. 1.056/.806? ID bore for high flow capacity. Type II bright-dip black anodized finish for durability and great looks.WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specifications

Carburetor Application:
Holley 4150, 4500
Distance Between Bowl Fitting:
7.700 to 13.450 in.
Inlet Size:
-10AN ORB Female
Outlet Size:
(2) 7/8 in. -20 Male
Fuel Line Material:
Aluminum
Fitting Material:
Aluminum
Fitting Finish:
Black Anodized
Gauge Port:
(2) 1/8 in. NPT
Length Adjustable:
Yes
Quantity:
Sold As Each

Tech Resources

  • 142-0107-0revA.pdf
