Aeromotive Fuel Pump Module Assembly 18037; Dual 450 900 LPH 90 PSI for 2011 to 2017 Ford Mustang

$986.53

Part #: 18037

Brand: Aeromotive

UPC: 684980012071

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Direct drop in unit to OEM tank with no drilling or fabrication required.
  • System allows for the use of both OEM sending units ( one located in each side of tank). Bracket provided on pump assembly to accept OEM sending unit. (Must install quick disconnect electrical connectors on OEM sending unit wires). Siphon pickup side of tank (driver’s side) is not disturbed. Outlet cap has a set of terminals that must be connected to OEM sending unit wires.
  • Uses patented Aeromotive jet siphon in conjunction with OEM jet siphon pickup. All internal tank hoses are retained. Internal jet siphon hose with quick connect attaches directly to Aeromotive jet siphon. Aeromotive siphon used to transfer fuel at a higher flow rate to pump side of tank.

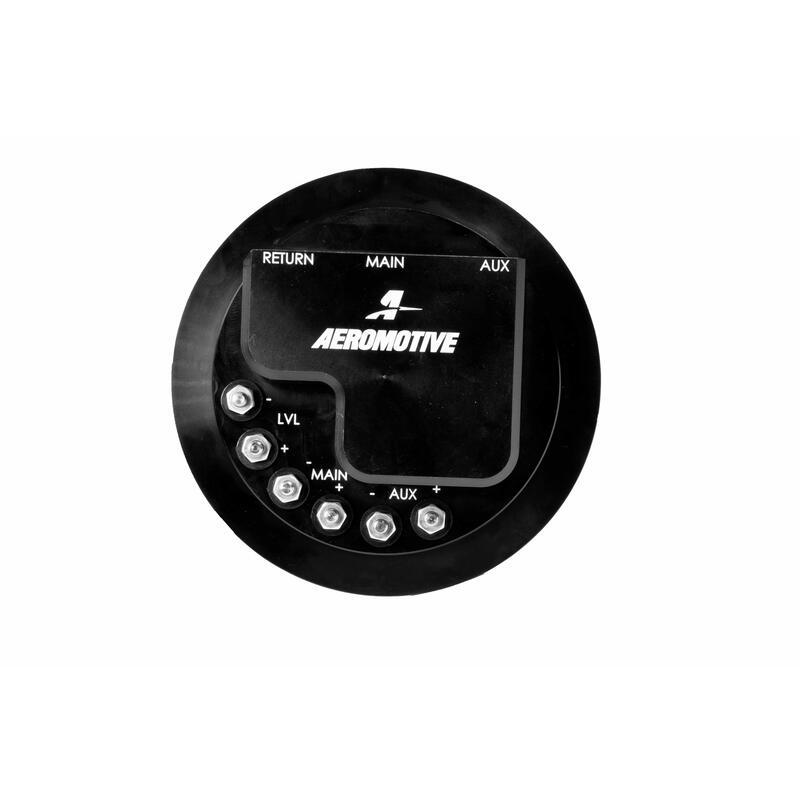

  • Outlet cap uses -08 ORB outlet ports for Main Outlet port, Auxiliary Port, and Return port.
  • System retains all OEM tank venting.
  • Two sets of pump terminals in Outlet Cap, one set to control Main pump, second set to control a second pump /second and third pumps together.

Product Description

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Specifications

Fuel Pump Module Assembly Series:
Dual 450
Year:
2011 to 2017
Make:
Ford
Model:
Mustang
Compatible Fuels:
Gasoline
Volume:
900 LPH
PSI:
90 PSI
Fuel Pump Material:
Steel, Aluminum
Fuel Pump Finish:
Black
Inlet Port:
-08AN ORB Female
Outlet Port:
-08AN ORB Female
Horsepower Rating:
2200 HP (EFI) 2600 HP (Carb)
Includes Fuel Level Sending Unit:
No
Includes Seals:
Yes
Includes Strainer:
Yes
Top Plate Material:
Aluminum
Top Plate Finish:
Black
Fuel System Type:
Drop In
Quantity:
Sold As Each

Videos

Tech Resources

  • AER180-3708-0norev.pdf
