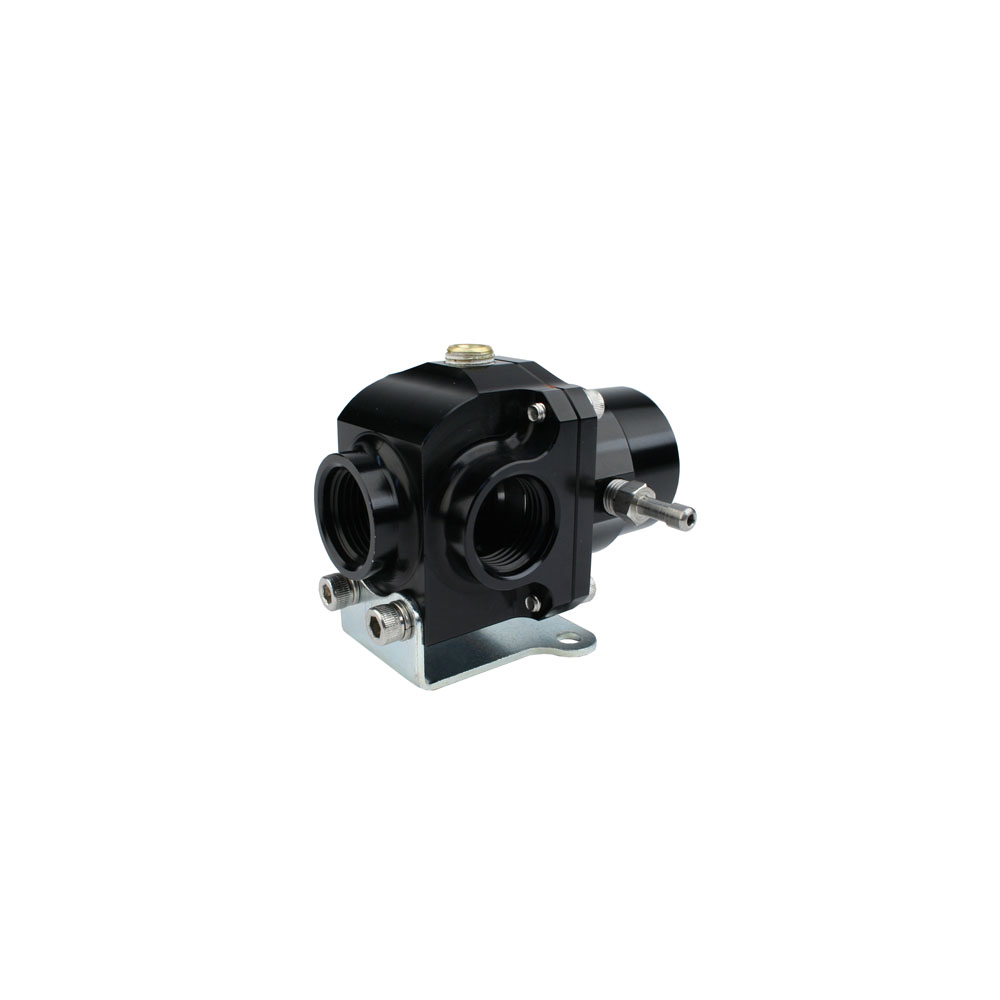

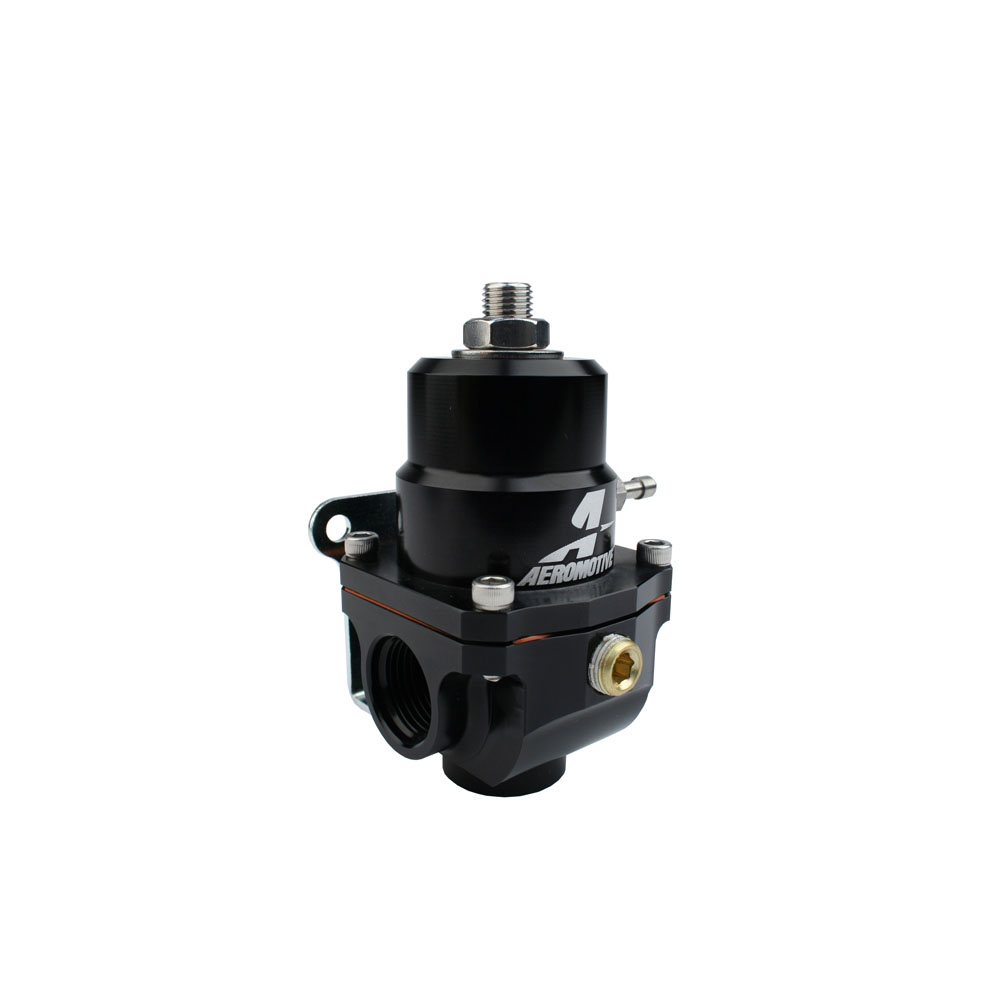

Aeromotive Fuel Pressure Regulator 13305; X1 35 to 75 PSI Return Gasoline, Race Gas, E85, Alcohol Billet Aluminum
$277.46
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description
The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and return style seat, the X1 delivers all of the performance and features you expect from an application specific return style regulator, regardless of what you decide to do with your induction system tomorrow. Above and beyond the expected performance, you still have the amenities like a 1/8" NPT gauge port and 1:1 ratio boost reference port for forced induction applications. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Series:
- X1
- Regulator Pressure Range:
- 35 to 75 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -08AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -08AN ORB Female
- Return Port Size:
- -08AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
