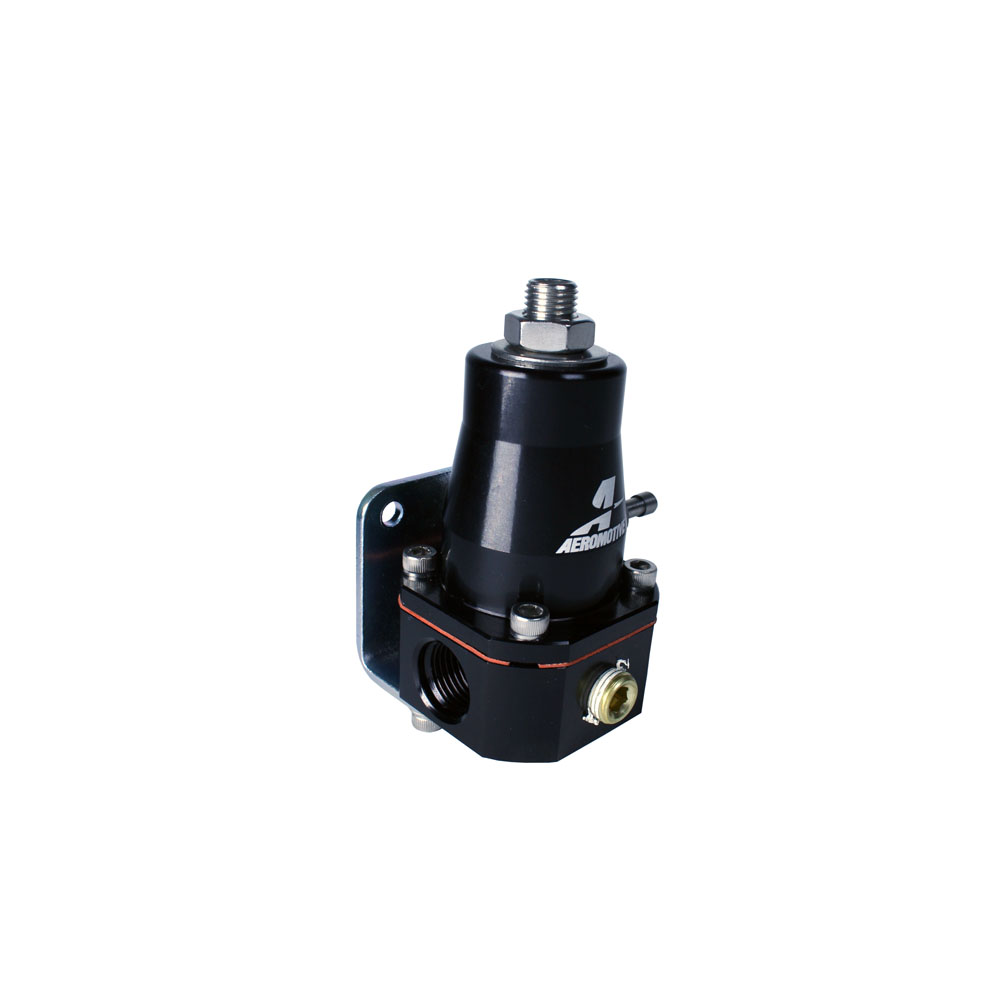

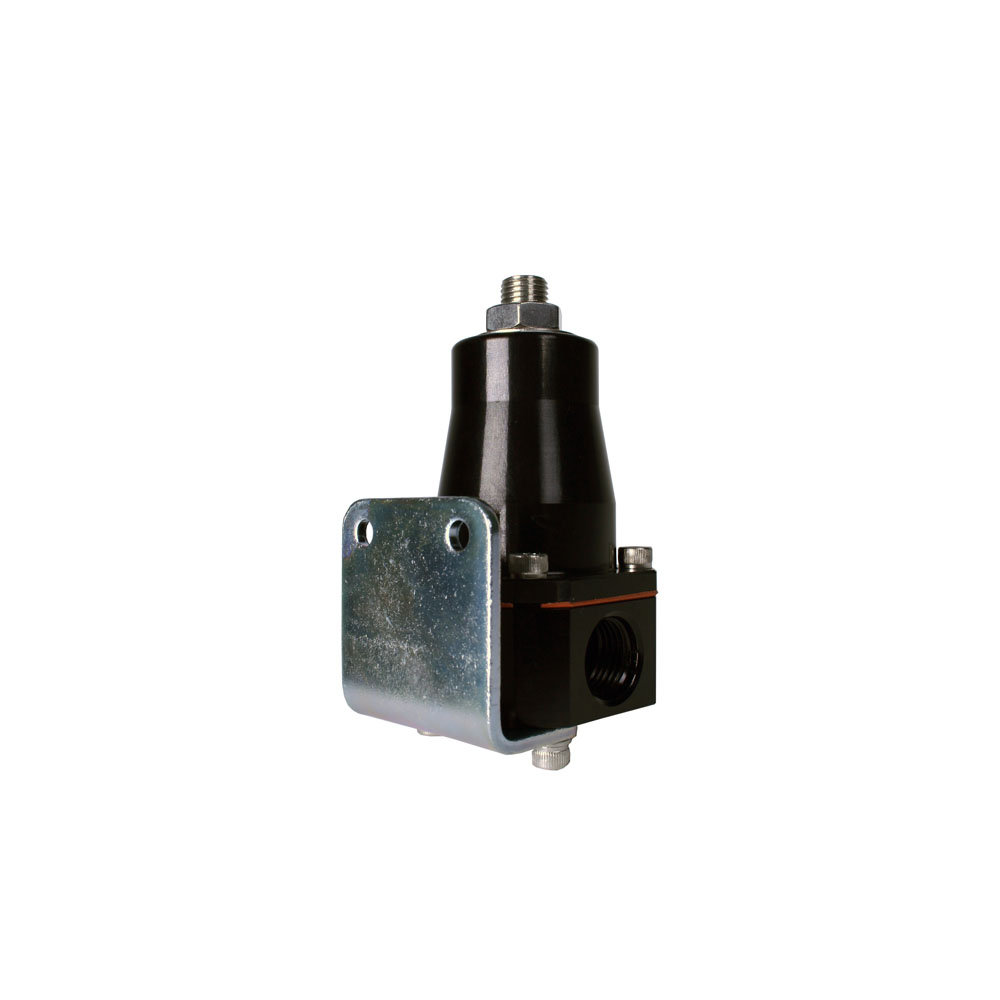

Aeromotive Fuel Pressure Regulator 13136; Compact EFI 30 to 70 PSI Return Gasoline, Race Gas, E85, Alcohol Billet Aluminum
$157.77
$184.96 On Sale
Save 15%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Product Description
This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 HP, the 13129 EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium. Base pressure adjustable from 30-70 PSI. Fuel pressure rises on a 1:1 ratio with boost. Provides (2) ORB-06 inlet/outet ports and (1) ORB-06 return port. 1/8 NPT gauge port. Bright Dip Black Anodized Finish. Vacuum boost port. CNC-Machined 6061 T6 billet aluminum construction.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Series:
- Compact EFI
- Regulator Pressure Range:
- 30 to 70 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -06AN ORB Female
- Number of Outlet Ports:
- 2 Port
- Outlet Port Size:
- -06AN ORB Female
- Return Port Size:
- -06AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
