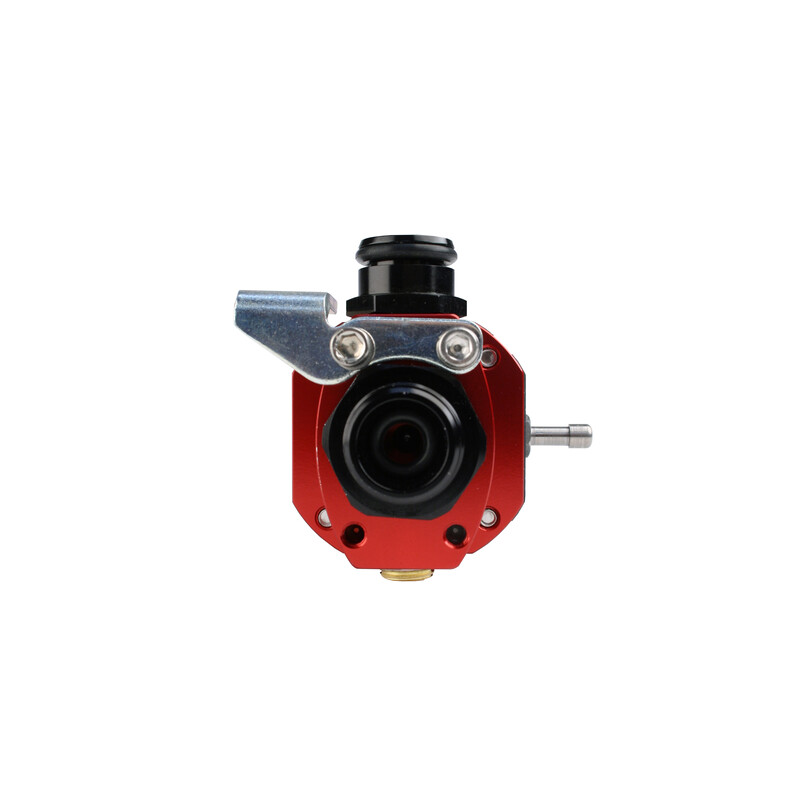

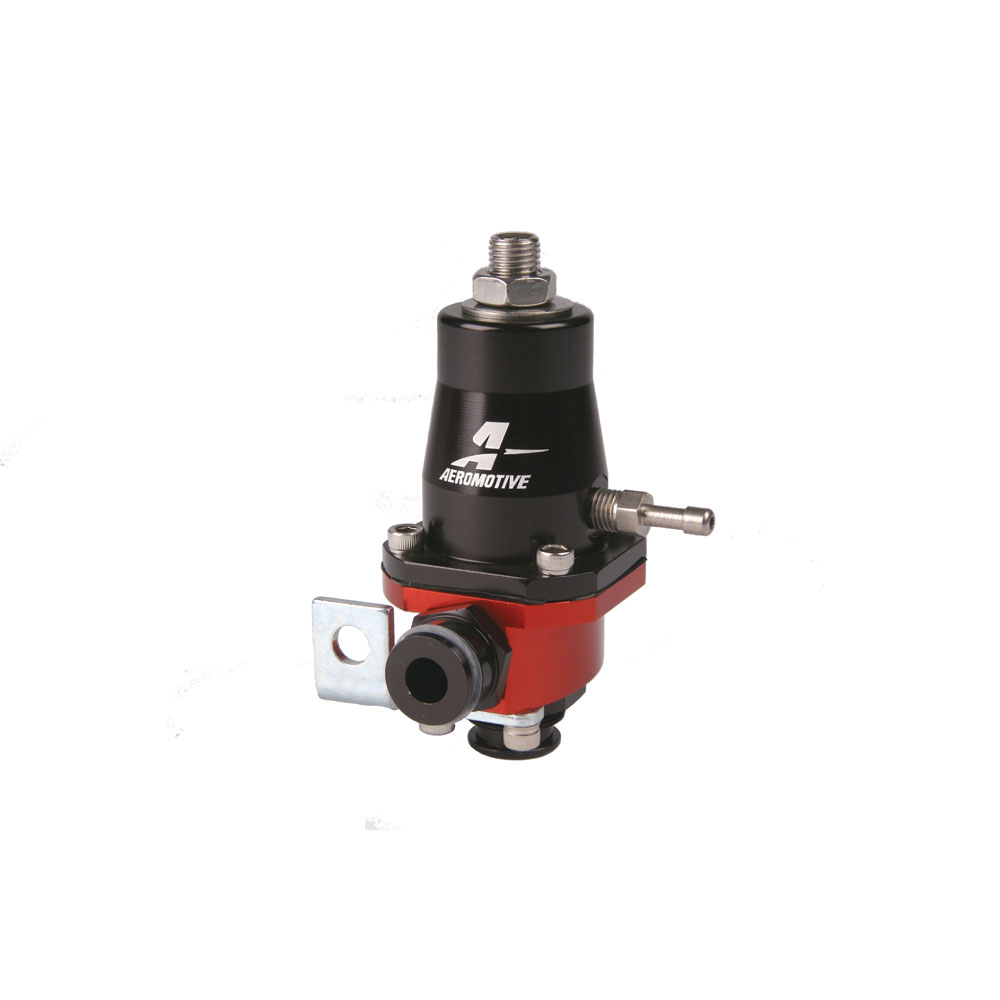

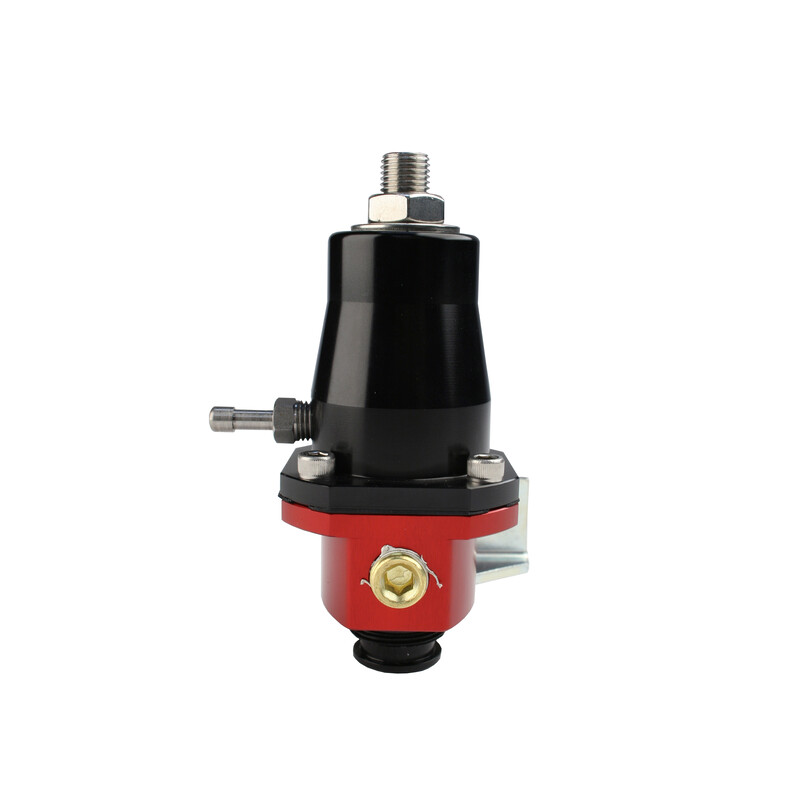

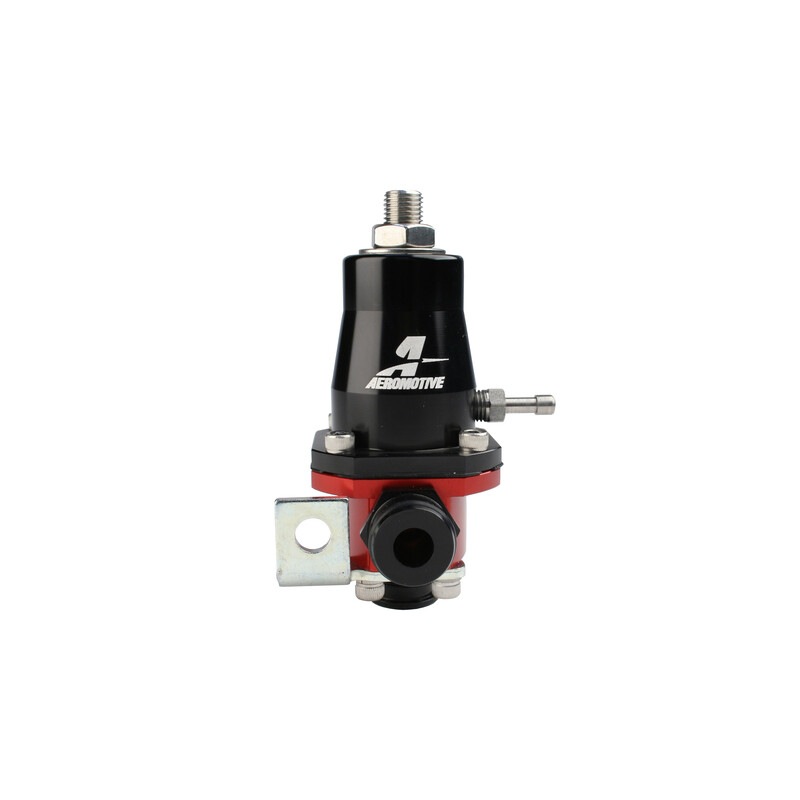

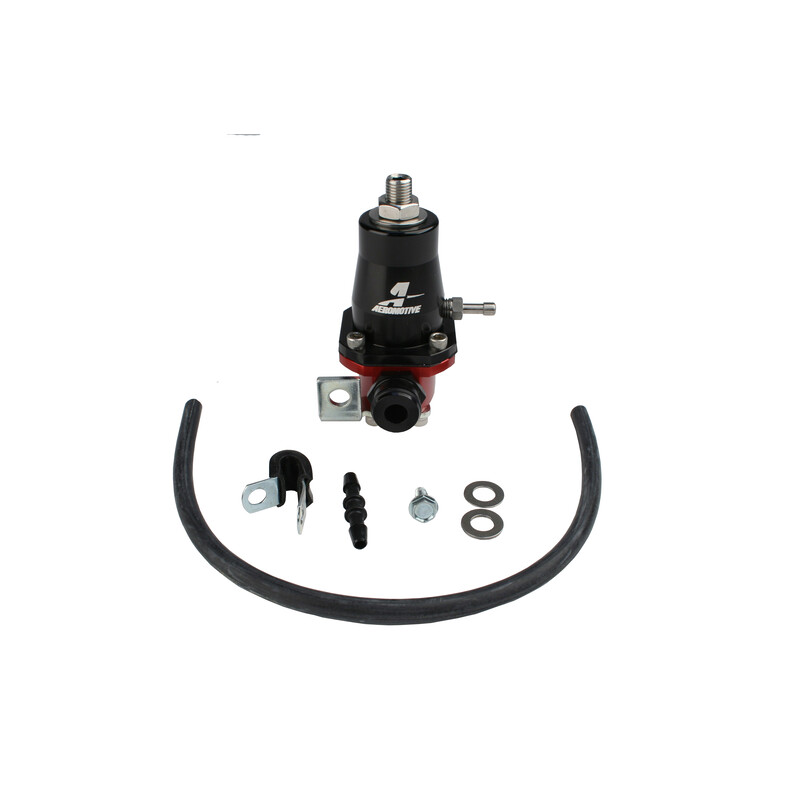

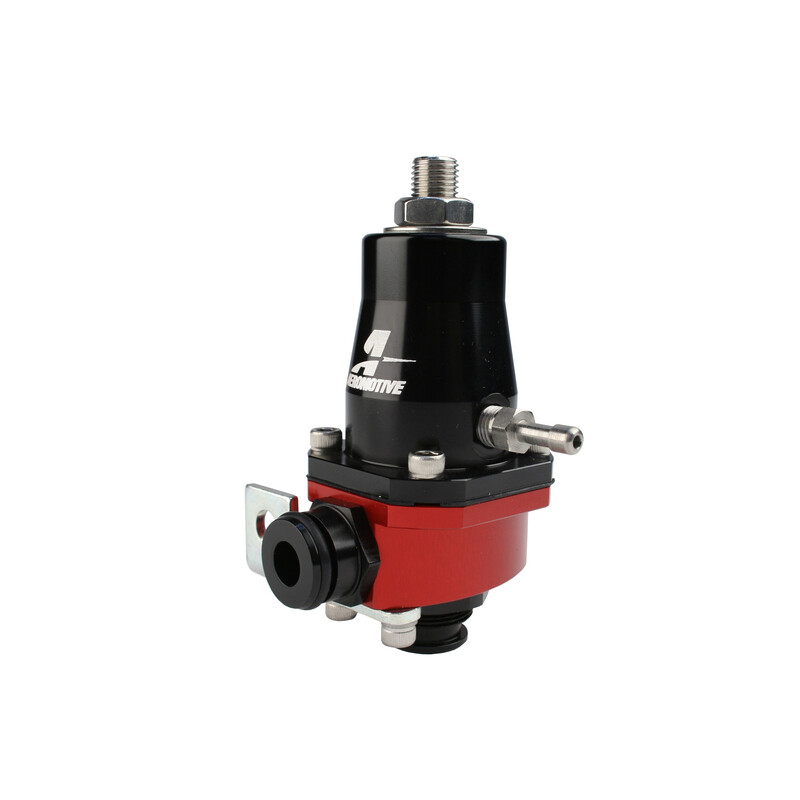

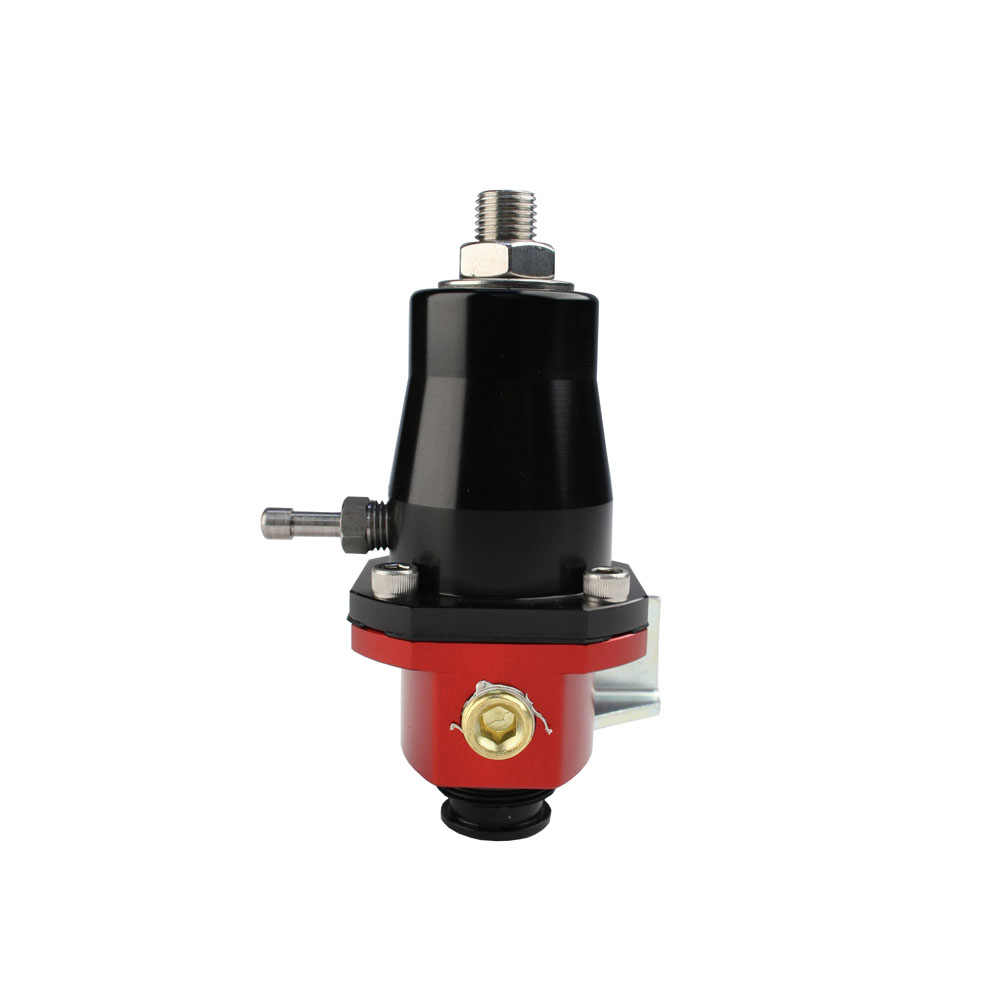

Aeromotive Fuel Pressure Regulator 13106; GM LT-1 Regulator 30 to 70 PSI Return Gasoline, Race Gas, E85, Alcohol Aluminum for 1992 to 1997 GM Corvette, Impala, Camaro, Firebird LT1, 3.1L, 3.4L, Ram Jet 350 Crate
$246.76
Part #: 13106
Brand: Aeromotive
UPC: 684980000078
Estimated Ship Date: 8/28/2025 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Adjustable from 30-70 PSI.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
- 1/8 in. NPT gauge port.
- Stainless steel spring, custom-designed for precise fuel control.
- A true billet regulator, CAD designed and CNC-machined.
- Return adapter may be replaced with P/N 15606 for a -06 return line. (sold separately)
- A true billet regulator, CAD designed and CNC-machined.
- Return adapter may be replaced with P/N 15606 for a -06 return line. (sold separately)
Product Description
Originally developed with the GM LT-1 engine specs in mind, these regulators were designed to keep these cars performing at their peak potential. These rail mount EFI regulators fit a variety of factory GM vehicles. Adjustable from 30-70 PSI. Fuel pressure rises on a 1:1 ratio when referencing boost. 1/8 in. NPT gauge port. Stainless steel spring, custom-designed for precise fuel control. A true billet regulator, CAD designed and CNC-machined. Return adapter may be replaced with P/N 15606 for a -06 return line (sold separately).
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Fuel Pressure Regulator Series:
- GM LT-1 Regulator
- Year:
- 1992 to 1997
- Make:
- GM
- Model:
- Corvette, Impala, Camaro, Firebird
- Engine:
- LT1, 3.1L, 3.4L, Ram Jet 350 Crate
- Regulator Pressure Range:
- 30 to 70 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Race Gas, E85, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Red
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- Stock
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- Stock
- Return Port Size:
- Stock
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- Yes
- Quantity:
- Sold As Each
