Aeromotive Electric Fuel Pump 18309; 680 LPH @ 40 PSI Gasoline, E85
$967.83
Part #: 18309
Brand: Aeromotive
UPC: 684980006247
Estimated Ship Date: 8/17/2026 (From manufacturer)
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description

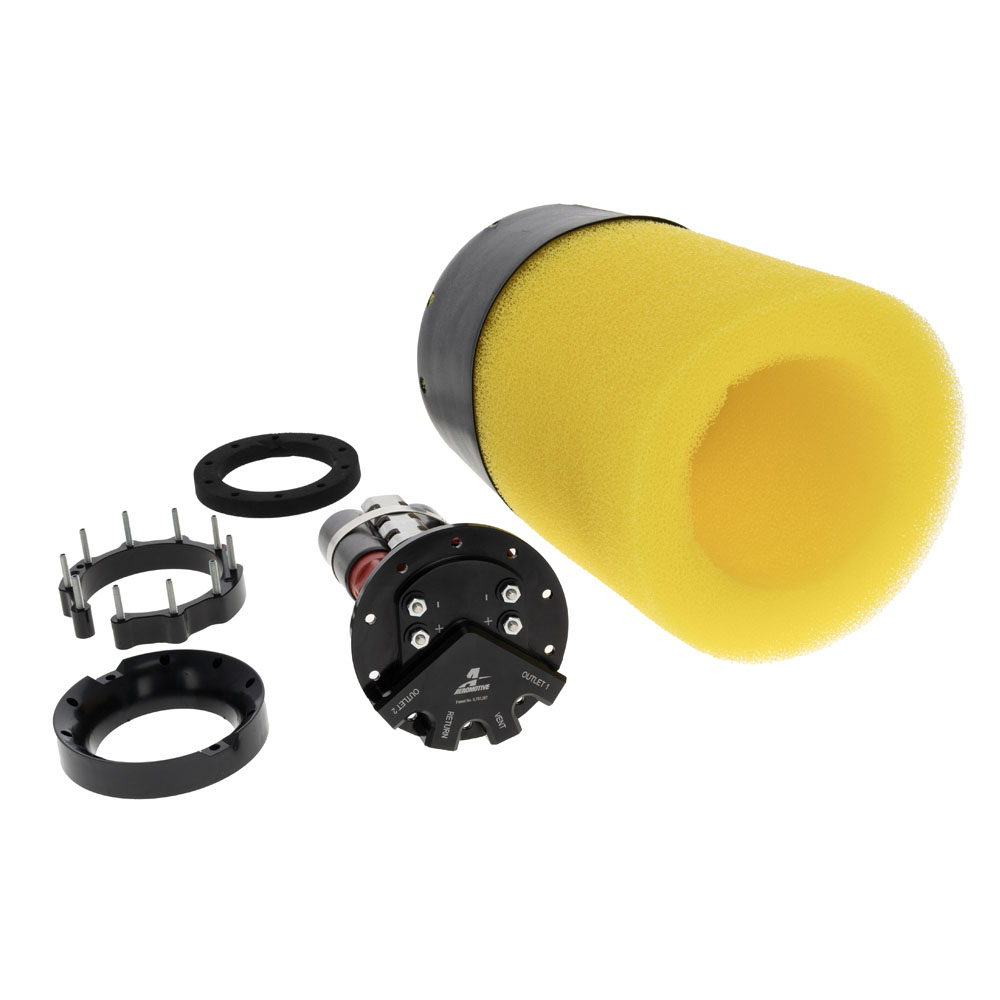

The Dual Phantom comes loaded with two 340lph pumps, an additional set of electrical bulkheads, and a larger capacity foam and bladder. Remarkably, it does not take up any additional space. The dual pumps provide opportunity for supporting big power (see power ratings below) while remaining OE quiet. Separate electrical bulkheads allow for an "on demand" fuel system, which reduces the amount of returned fuel and reduces the tank temperature, making vapor lock and cavitation a thing of the past. Also, this feature is a must when a redundant (back up) pump is needed in extreme conditions, such as off-road, desert, and endurance racing. The larger capacity foam and bladder combat fuel slosh while retaining enough fuel to feed the dual pumps. And the best feature is all of this done from your stock tank with no welding or fabrication!
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Compatible Fuels:
- Gasoline, E85
- Volume (Standard Pressure):
- 680 LPH @ 40 PSI
- Fuel Pump Material:
- Billet Aluminum
- Fuel Pump Finish:
- Black
- Inlet Port:
- -06AN ORB Female
- Outlet Port:
- -06AN ORB Female
- Horsepower Rating:
- 1700 HP (EFI) 2000 HP (Carb)
- Bypass:
- No
- Includes Fuel Level Sending Unit:
- No
- Includes Seals:
- Yes
- Includes Strainer:
- Yes
- Includes Mounting Bracket:
- Yes
- Bracket Material:
- Billet Aluminum
- Bracket Finish:
- Black
- Notes:
- Complete Module can be used with original equipment gas tank or aftermarket replacement. Great for Muscle Car or Hot Rod builds looking to make big horsepower reliably.
- Quantity:
- Sold As Each
