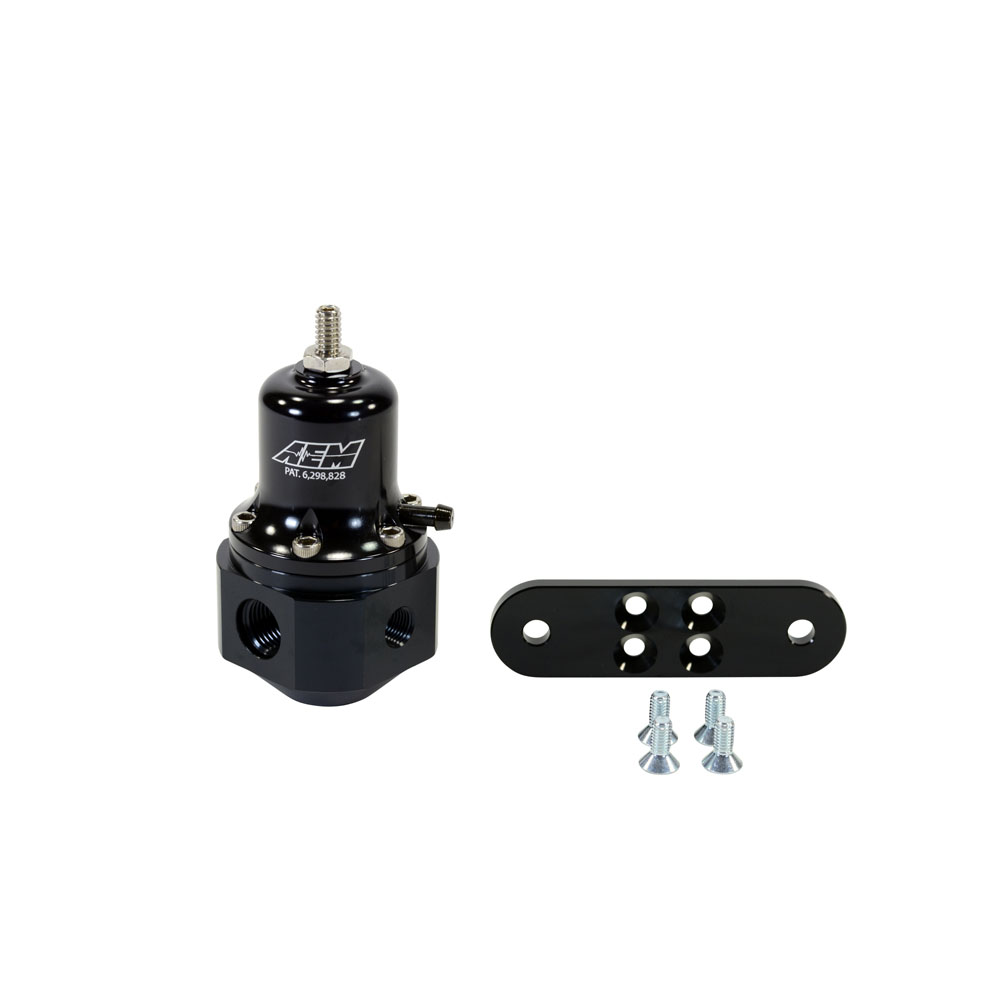

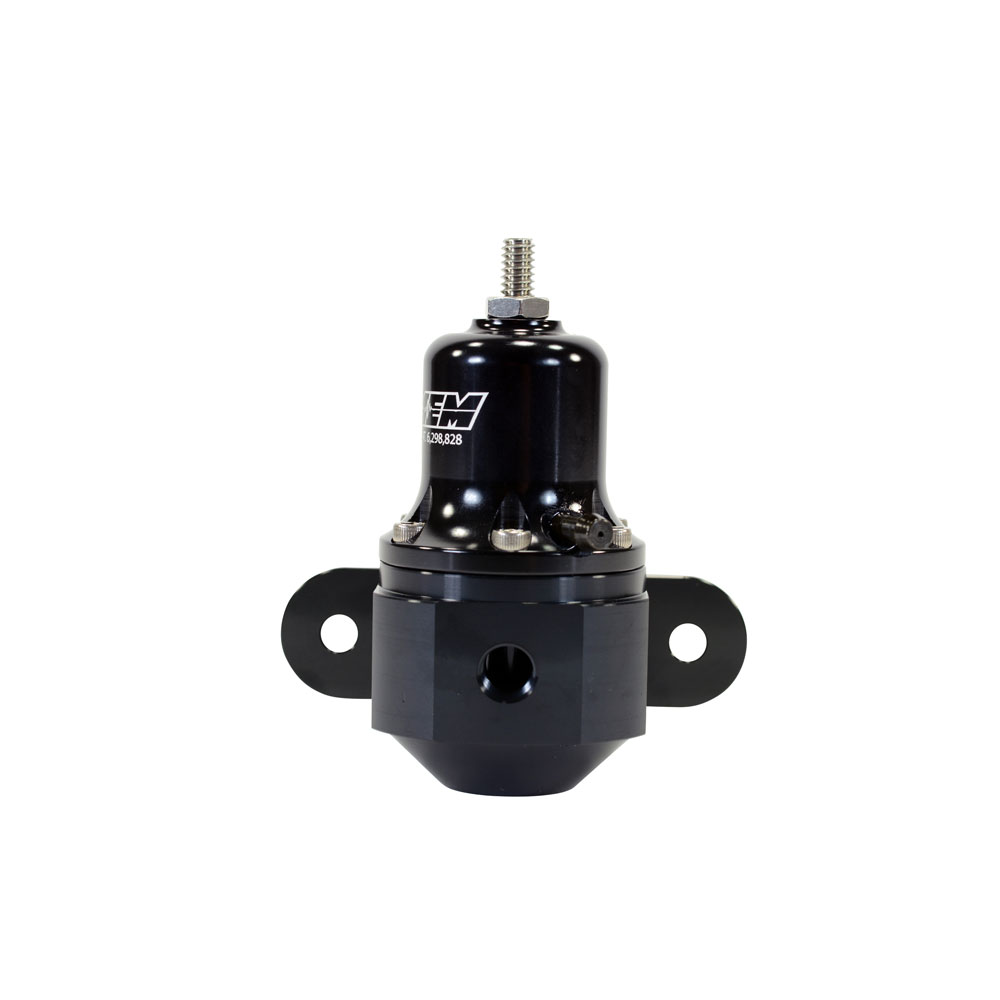

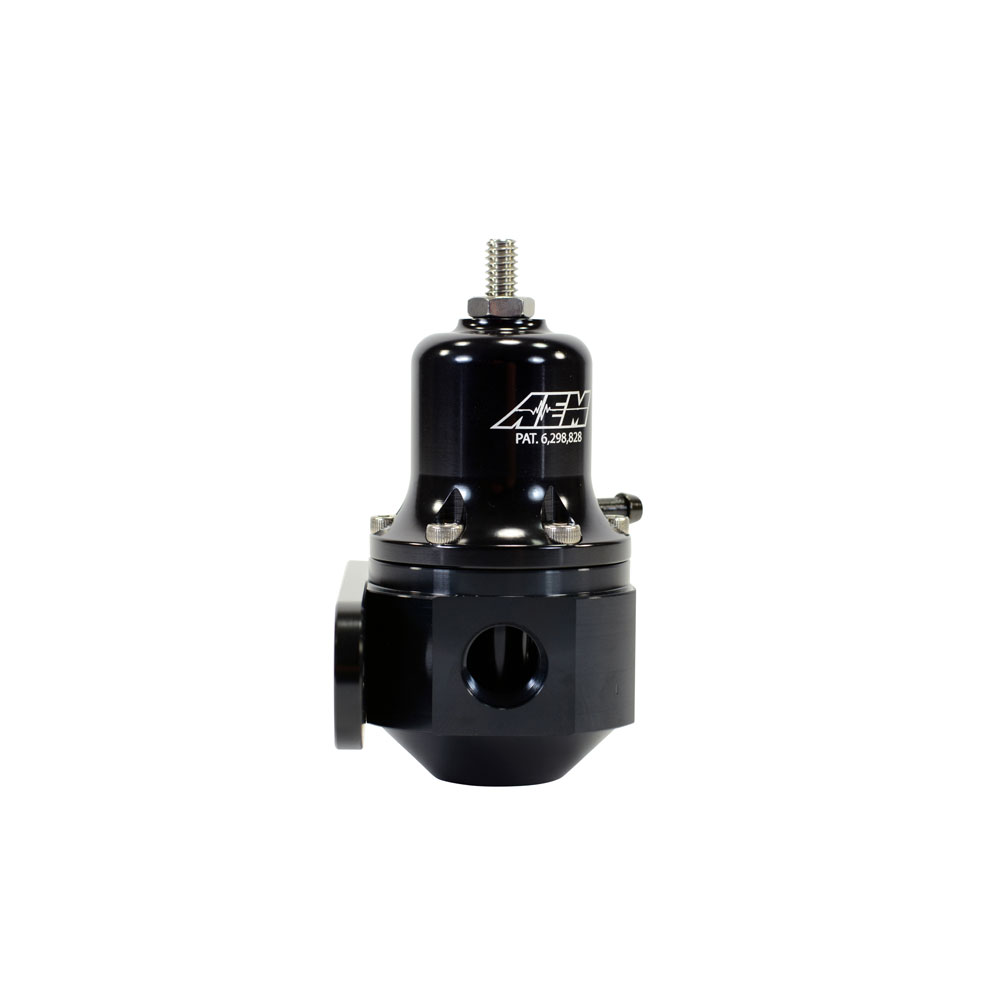

AEM Fuel Pressure Regulator 25-305BK; 40 to 130 PSI Return Gasoline, Alcohol Billet Aluminum
$167.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Universal fuel pressure regulator adapts to virtually any vehicle
- Longer spring for wider range of adjustment (40 - 130 PSI)
- Three -6AN (9/16"-18) ORB o-ring style inlet ports (2 inlet, 1 return)
- Boost dependent rising fuel pressure rate (1:1)
- CNC-machined from 6061-T6 billet aluminum
- Alcohol fuel and race gas compatible
- Integrated 1/8 in. NPT gauge port
- Patent P/N 6,298,828
- CNC-machined from 6061-T6 billet aluminum
- Alcohol fuel and race gas compatible
- Integrated 1/8 in. NPT gauge port
- Patent P/N 6,298,828
Product Description
Inlet: 2 x -6AN (9/16-18) Outlet: -6AN - Gauge Port: 1/8 in. NPT - Black
Specifications
- Regulator Pressure Range:
- 40 to 130 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Alcohol
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 2 Inlet
- Inlet Port Size:
- -06AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -06AN ORB Female
- Return Port Size:
- -06AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
