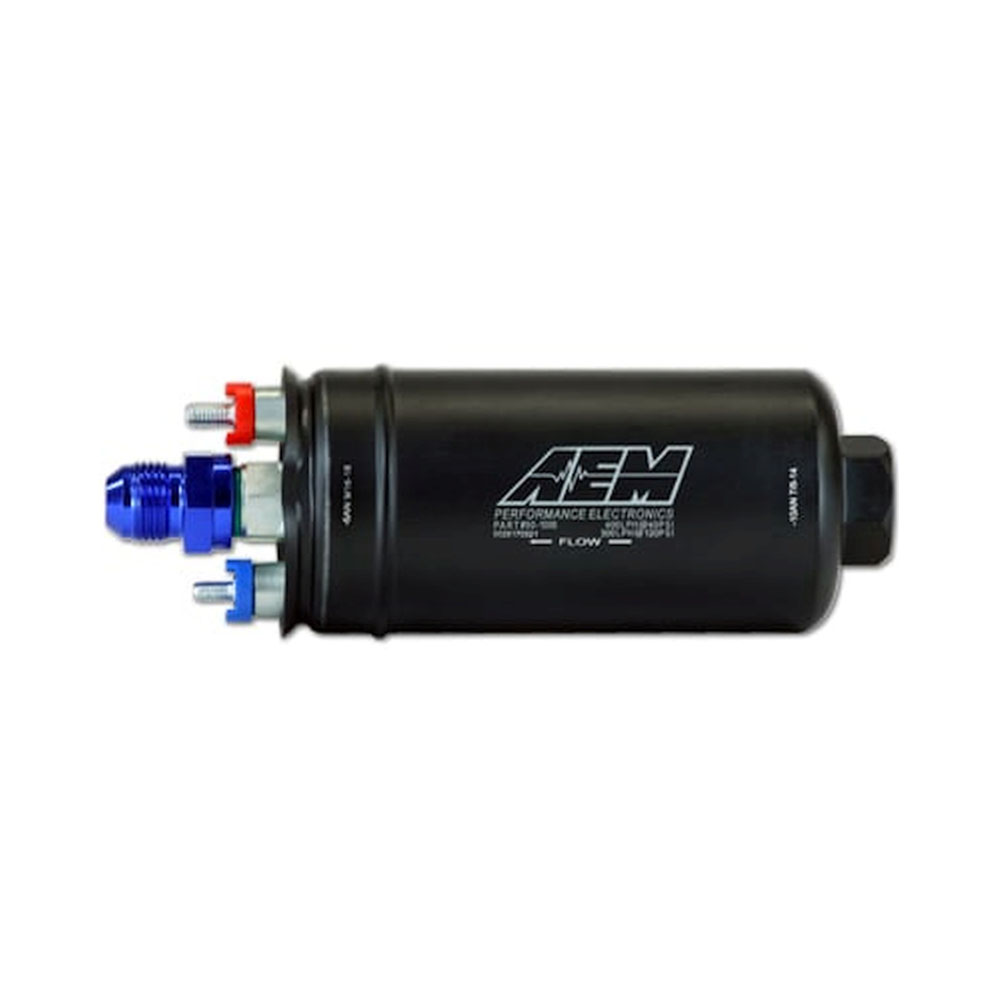

AEM Electric Fuel Pump 50-1005; 90 GPH @ 73 PSI Gasoline, E85
$203.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Designed for high output naturally aspirated and forced induction EFI vehicles
- Popular "044 Style" physical configuration, but with AN inlet & discharge port connections
- Maintains very high flow even at boosted fuel pressures

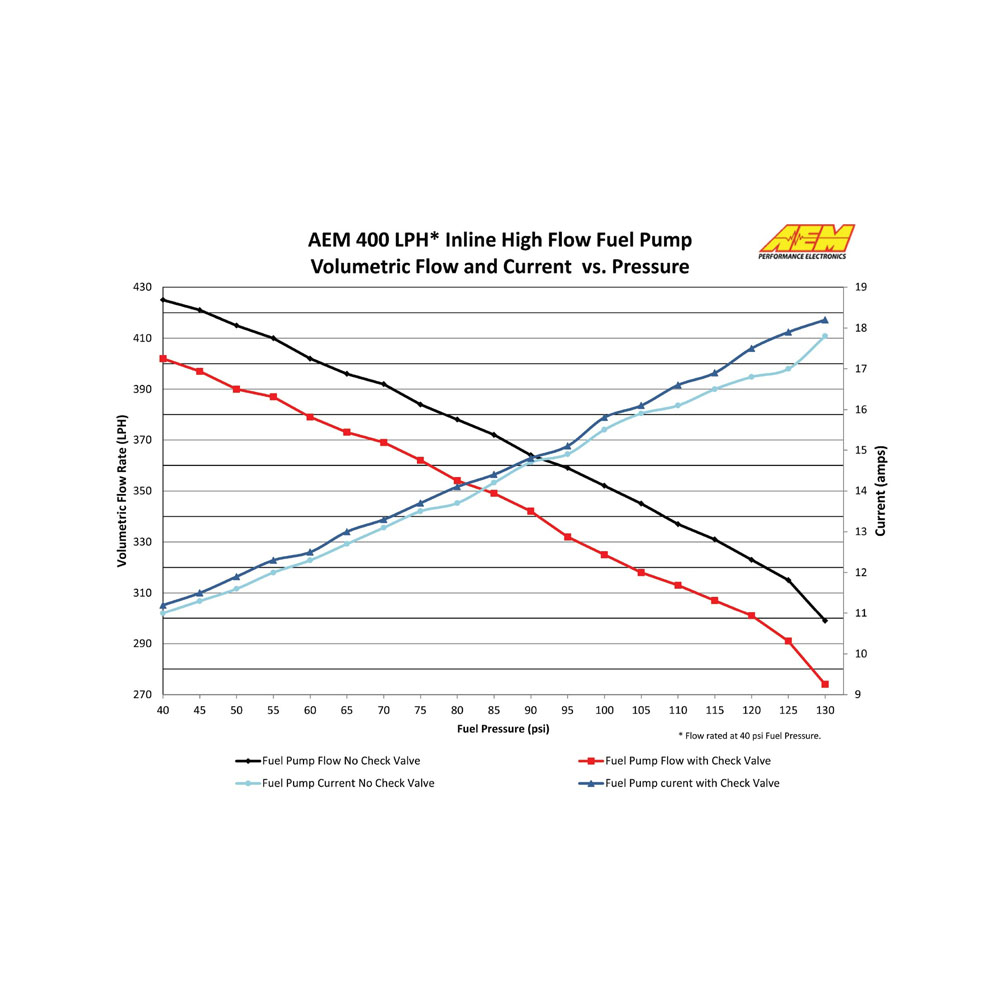

- 340LPH @ 73 PSI (30 PSI boost)
- Installs externally or in-tank
- Each pump individually tested to flow minimum of 400LPH (100GPH) @ 40 PSI
- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
- Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves
- Installs externally or in-tank
- Each pump individually tested to flow minimum of 400LPH (100GPH) @ 40 PSI
- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
- Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves
Product Description

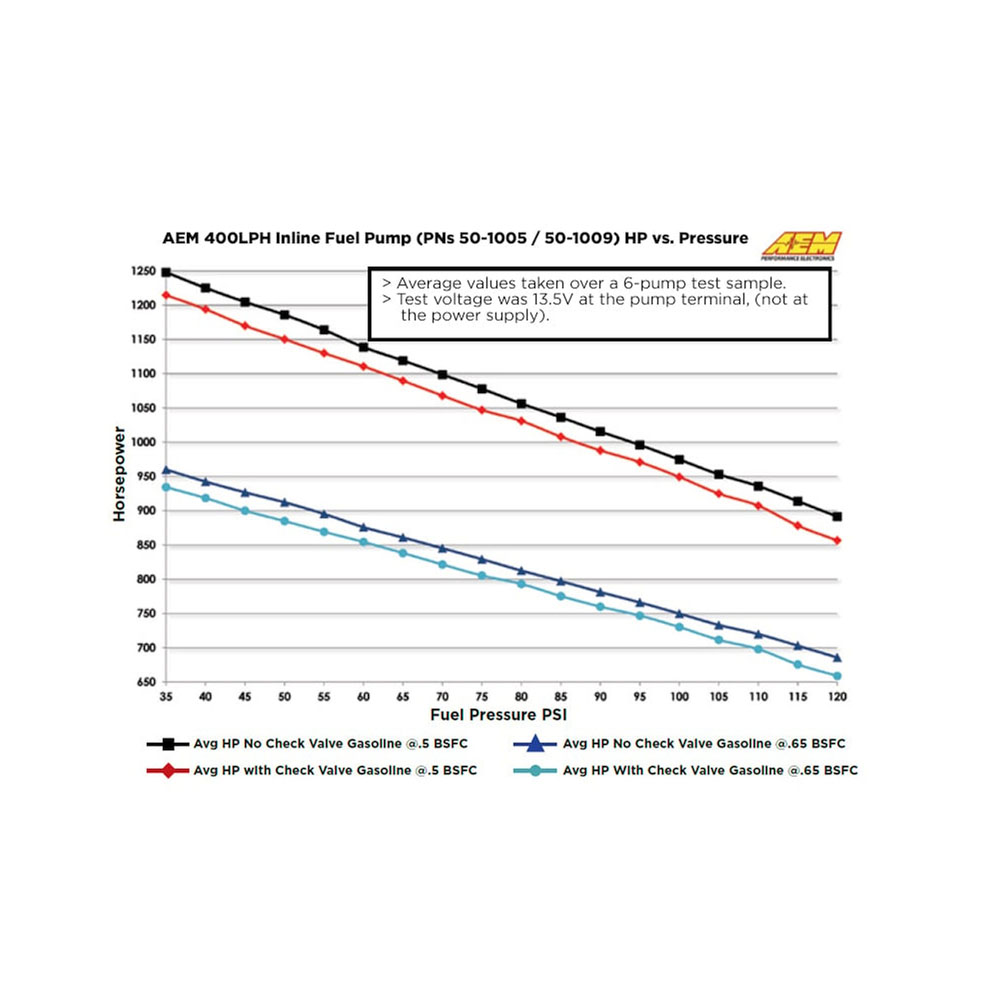

AEM's 400LPH AN Fittings High Flow, High-Pressure Inline Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It utilizes the industry standard "044 Style" envelope and -10 AN female inlet and -06 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1005 fuel pump delivers incredible performance and value.AEM's 400LPH High Flow, High-Pressure Fuel Pump (AEM 50-1005) is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost.
Specifications
- Compatible Fuels:
- Gasoline, E85
- Volume (Standard Pressure):
- 90 GPH @ 73 PSI
- Fuel Pump Material:
- Steel, Plastic
- Fuel Pump Finish:
- Black

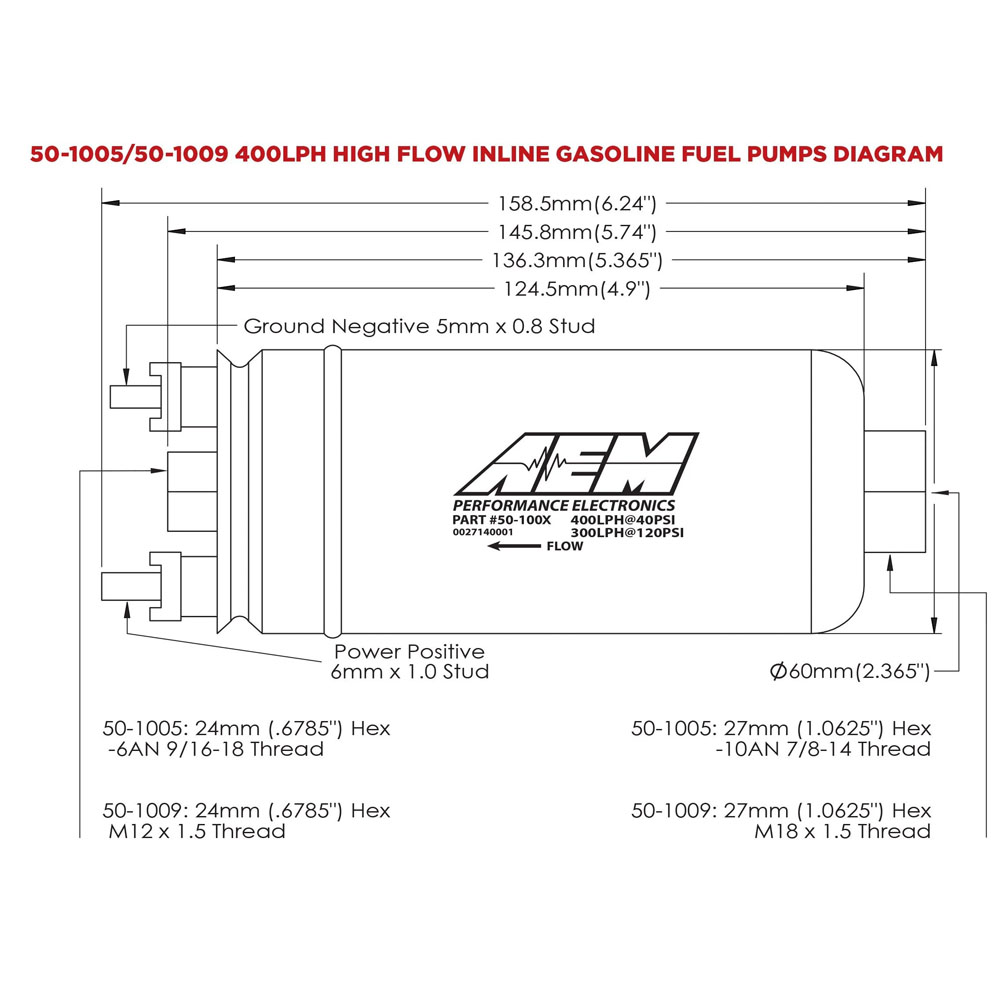

- Inlet Port:
- -10AN ORB Female
- Outlet Port:
- -06AN ORB Female
- Horsepower Rating:
- 1200 HP
- Bypass:
- No
- Includes Fuel Level Sending Unit:
- No
- Includes Seals:
- No
- Includes Strainer:
- No
- Includes Mounting Bracket:
- No
- Quantity:
- Sold As Each
