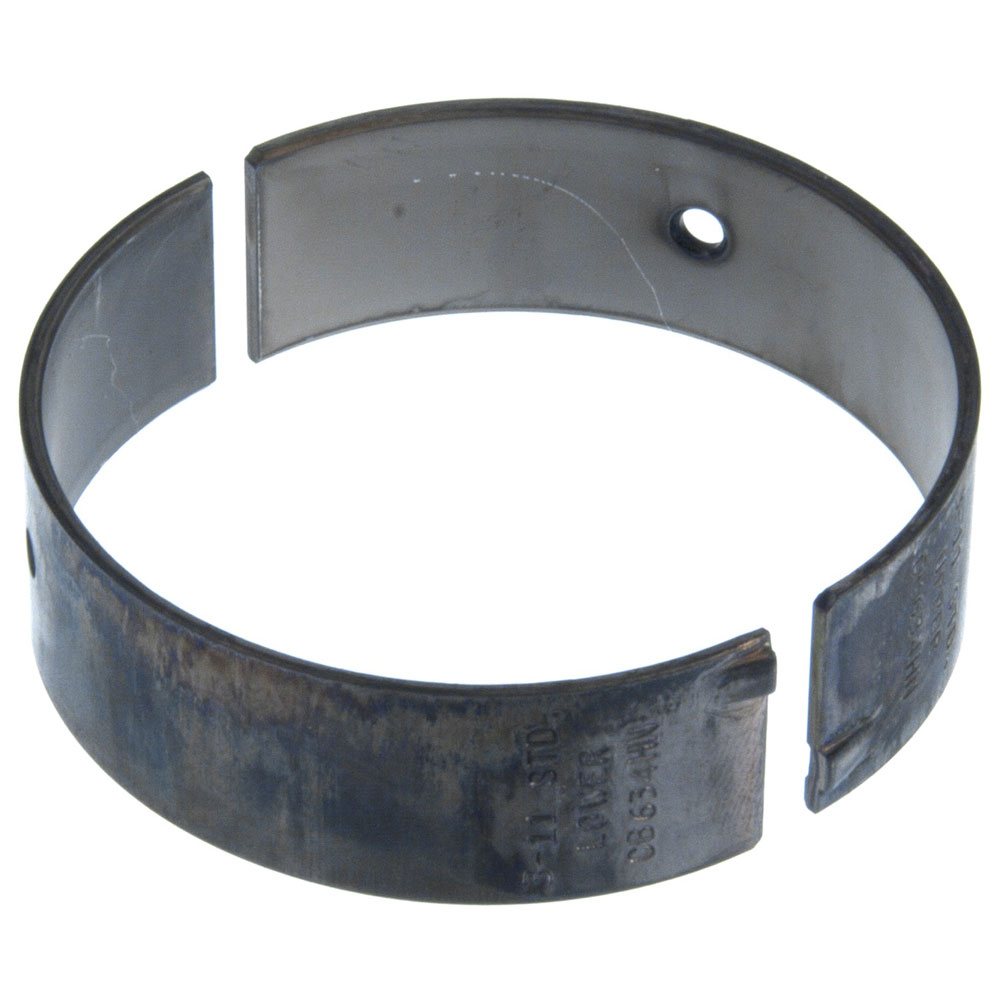

ACL Bearings Connecting Rod Bearing Set 8B634H-010; Race Series Performance 0.010 in. for Ford 289 to 302
$73.24
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- A blend of characteristics to provide high strength and excellent seizure resistance.
- No flash plating is applied to further improve bearing retention and maximise heat transfer.
- Improved bearing retention from higher radial contact pressure.
- Locks the bearing into the housing.
- More effective heat dissipation through improved thermal transfer.
- Definition: Gradual reduction in wall thickness between the crown and parting line.
- ACL Race Series performance engine bearings feature increased eccentricity to improve shape adaptation to compensate for bore distortion at high speed operation.
- Assists in the formation of hydrodynamic oil film.
- Accommodate larger fillet radii on performance crankshafts.
- More effective heat dissipation through improved thermal transfer.
- Definition: Gradual reduction in wall thickness between the crown and parting line.
- ACL Race Series performance engine bearings feature increased eccentricity to improve shape adaptation to compensate for bore distortion at high speed operation.
- Assists in the formation of hydrodynamic oil film.
- Accommodate larger fillet radii on performance crankshafts.
Product Description
ACL Race Series performance engine bearings are manufactured to exacting tolerances. Micron tolerance machining supported by precision measurement systems delivers consistent accuracy to key
characteristics like wall thickness and crush. This ensures reliable fit and helps maintain consistent clearances.
Specifications
- Connecting Rod Bearing Set Series:
- Race Series
- Make:
- Ford
- Engine:
- 289 to 302
- Bearing Undersize:
- 0.010 in.
- Usage:
- Performance
- Construction:
- Tri Metal
- Backing Layer Material:
- Steel
- Bearing Lining or Intermediate Material:
- Copper, Lead, Tin
- Overlay Material:
- Lead, Tin, Copper
- Coated:
- No
- Chamfered:
- Yes
- Bearing Width:
- 0.726 in.
- Standard Bearing Thickness (Without O/S):
- 0.058 in.
- Standard Crank Pin Diameter (Without O/S):
- 2.123 in.
- Standard Housing Diameter (Without O/S):
- 2.239 in.
- Includes Dowel Pin Hole:
- No
- Quantity:
- Sold As Set (8/pkg)
