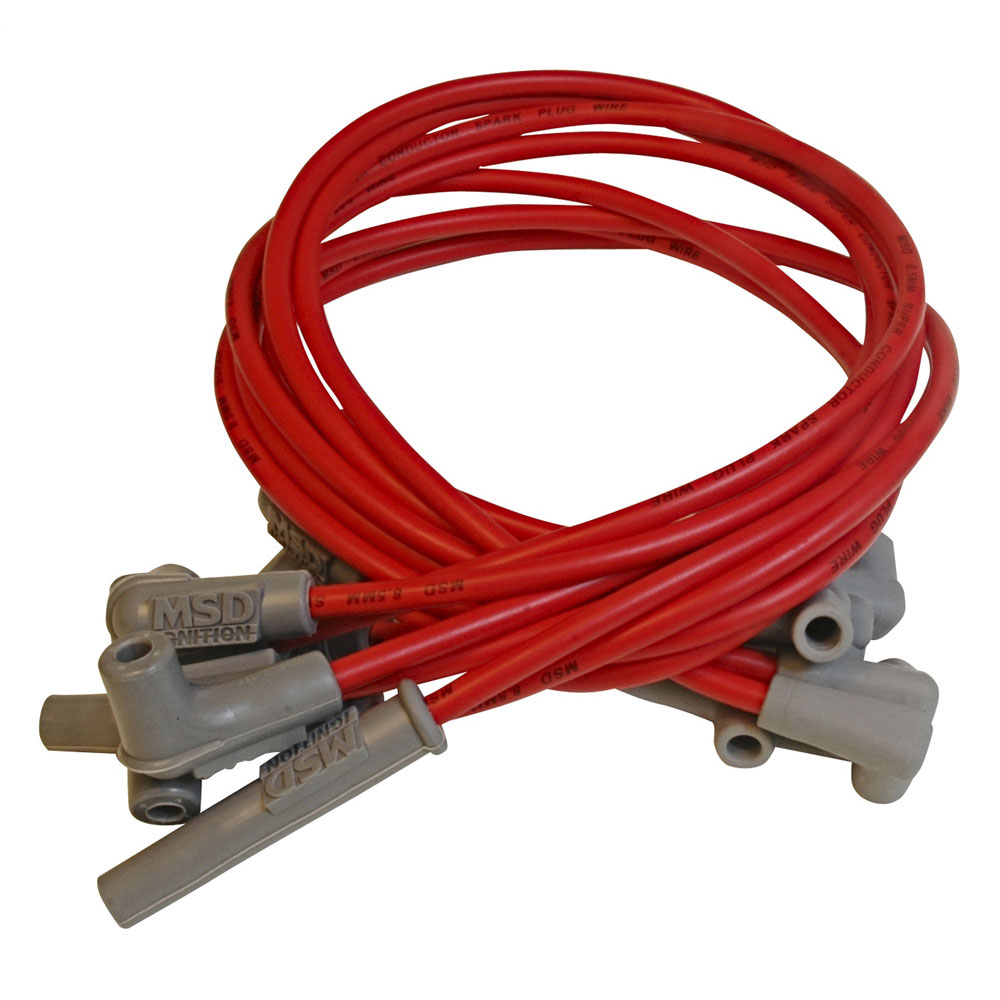

Photo for MSD Spark Plug Wire Set 31649; Super Conductor 8.500 mm Red Spiral Core 90 deg./Straight HEI/Male for Chevy 4.3L

MSD Spark Plug Wire Set 31649; Super Conductor 8.500 mm Red Spiral Core 90 deg./Straight HEI/Male for Chevy 4.3L

$141.35

Part #: 31649

Brand: MSD

UPC: 085132316496

Estimated Ship Date: 5/23/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Custom Fit For Make And Model Listed
  • Wires Are Pre-Cut To Exact Specifications
  • Bolt-on Performance

Product Description

The MSD 8.5mm Super Conductor Wire is "the" performance wire. Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire; incredibly low resistance without electronic interference! In a single 12 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to its great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke". This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears. The MSD 8.5mm Super Conductor Plug Wire is available in Universal Kits and Bulk Lengths.

Specifications

Spark Plug Wire Set Model or Series:
Super Conductor
Make:
Chevy
Engine:
4.3L
Assembled:
Yes
Diameter:
8.500 mm
Distributor Boot Style:
HEI/Male
Spark Plug Boot Style:
90 deg./Straight
Includes Coil Wire:
Yes
Color:
Red
Core Type:
Spiral Core
Number of Cylinders:
6 Cylinder
Boot Material:
Silicone
Boot Color:
Gray
Wire Resistance:
40 to 50 Ohms/ft.
Sleeved or Unsleeved:
Unsleeved
Quantity:
Sold As Set
