Moroso Oil Pan 20535; Wet Sump for Ford 289 to 302
$556.99
Part #: 20535
Brand: Moroso
UPC: 084663205354
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Steel, Wet Sump, Front Sump, 7 Quart Capacity, 8" Deep
- Engine Application: 289-302
- Fits: Fits: Ford including Australian, Mercury and Cobra Kit Car front sump applications (except Mustang II). Useage: Road and Drag Race, including street

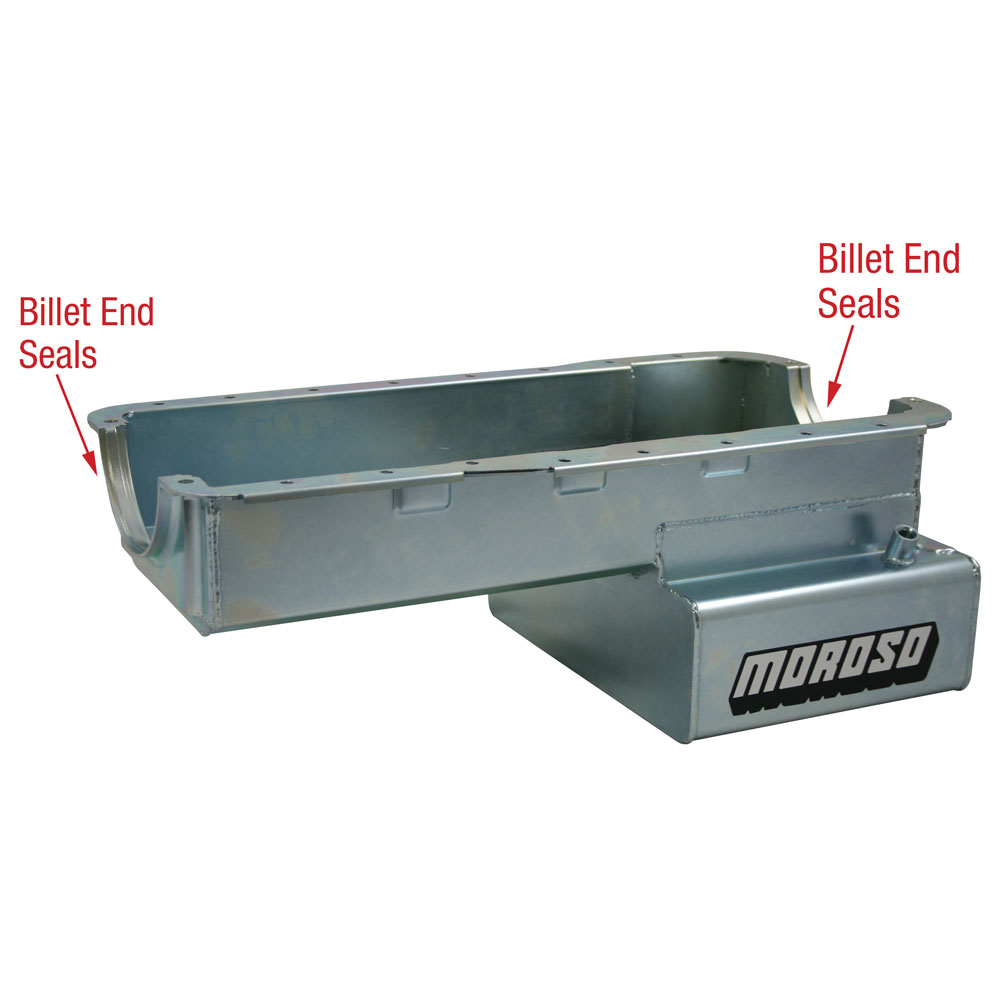

- Billet end seals for greater sealing
- Clears all 4-bolt main caps including 4-bolt rear
- Accepts 3.40 stroke with most steel rods
- Four Trap Doors keep oil contained in oil pump pickup area
- Anti-slosh baffle keeps oil from leaving the sump
- Features oil temperature fitting and drain plug
- Compatible with most starter/flywheel combinations
- For use with 1-piece, rear sump oil pan gasket
- Includes O-ring drain plugs
- For use with 1-piece, rear sump oil pan gasket
- Clears all 4-bolt main caps including 4-bolt rear
- Accepts 3.40 stroke with most steel rods
- Four Trap Doors keep oil contained in oil pump pickup area
- Anti-slosh baffle keeps oil from leaving the sump
- Features oil temperature fitting and drain plug
- Compatible with most starter/flywheel combinations
- For use with 1-piece, rear sump oil pan gasket
- Includes O-ring drain plugs
- For use with 1-piece, rear sump oil pan gasket
Product Description
Oil Pan, Ford 302, Front Sump, Fully Fabricated with "New" Steel Billet Seals, Fits all 4 Rear Block Main Engine Blocks, Road Race Baffled
Specifications
- Make:
- Ford
- Engine:
- 289 to 302
- Pan Style:
- Wet Sump
- Dip Stick Location:
- Passenger Side
- Sump Location:
- Front
- Baffled:
- Yes
- Quantity:
- Sold As Each
