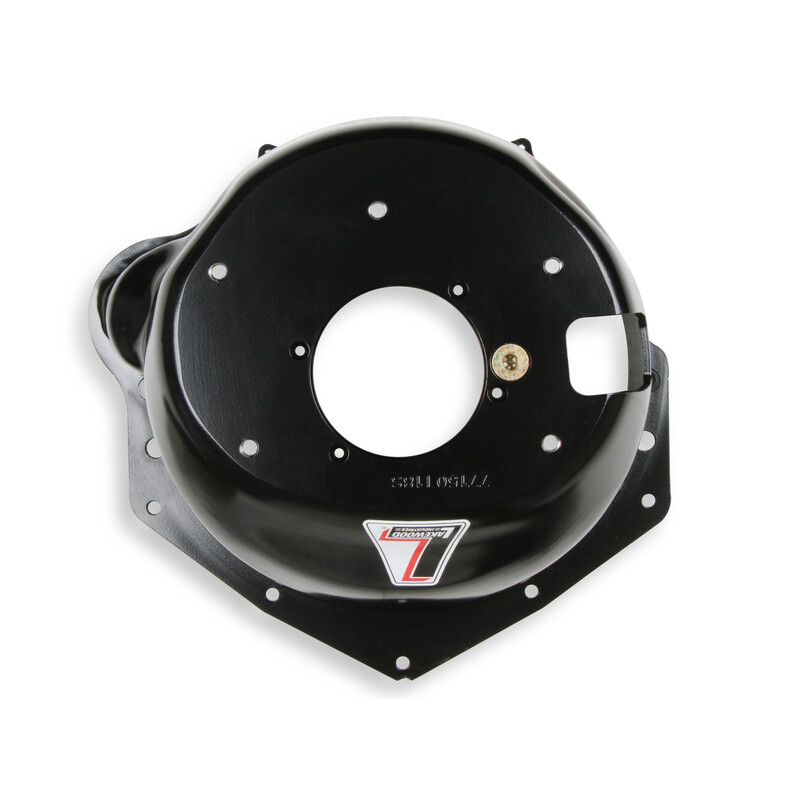

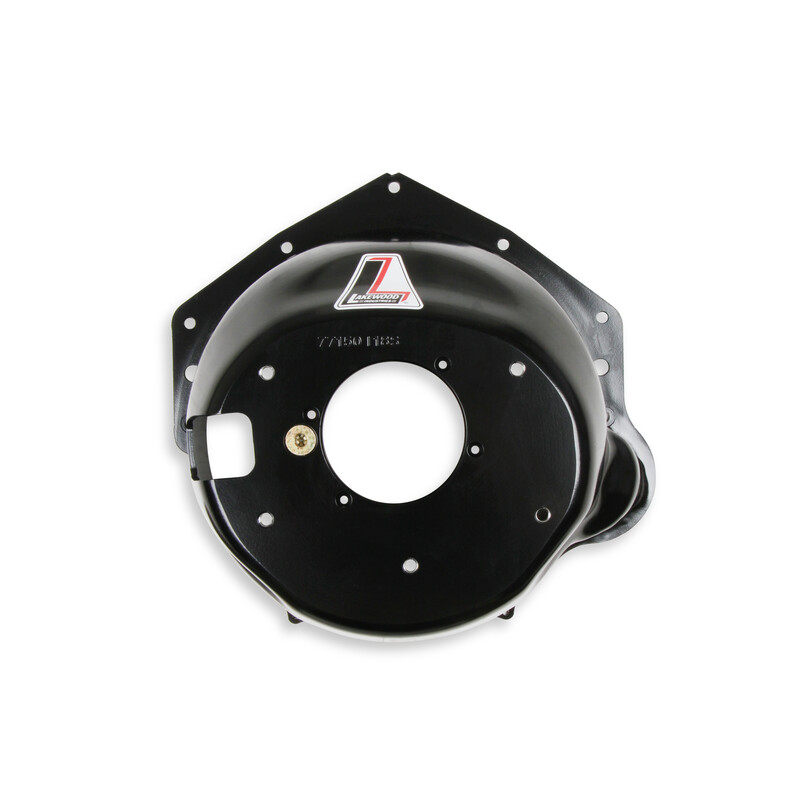

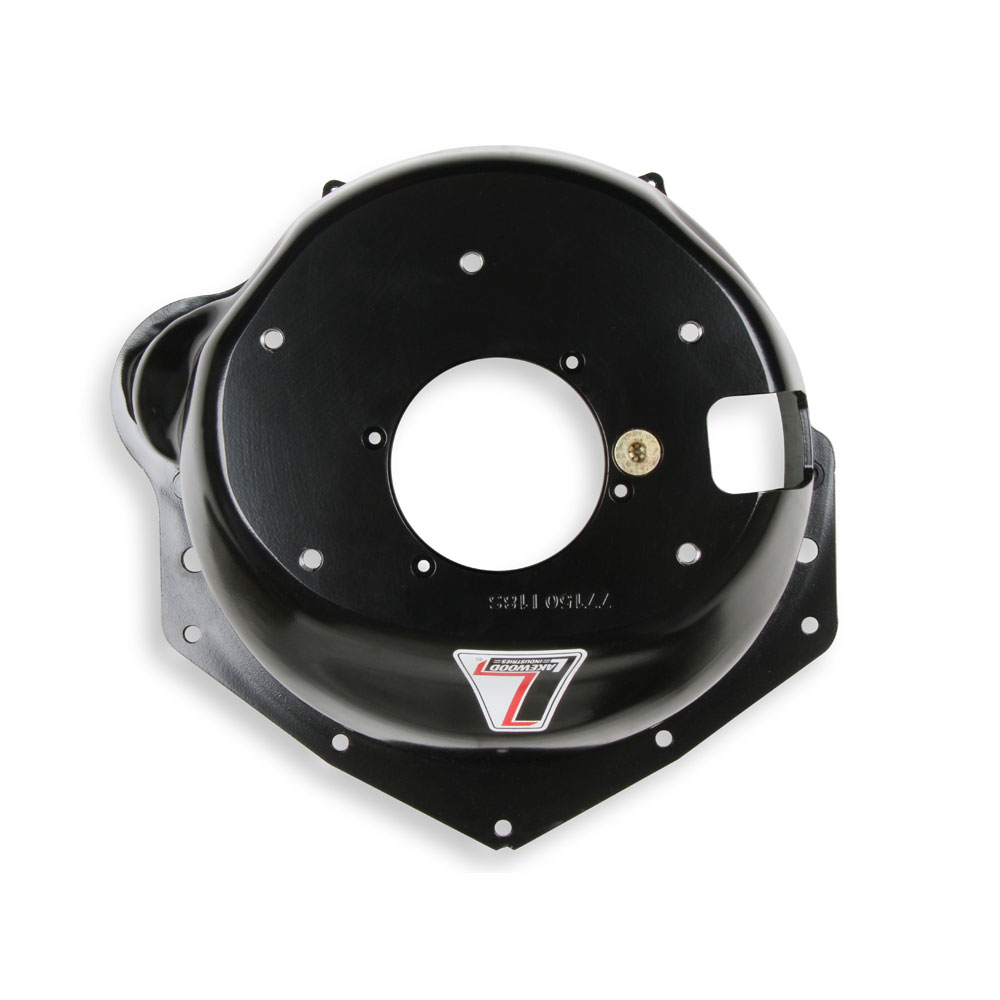

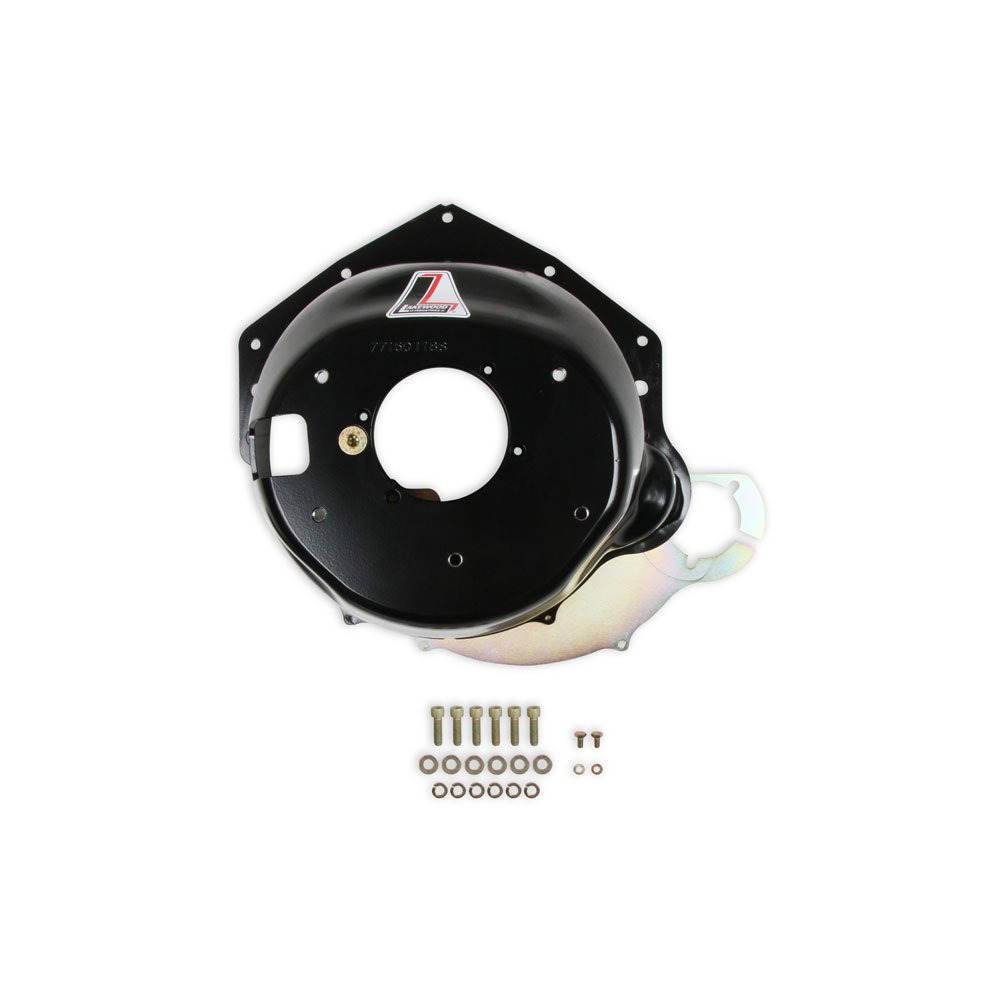

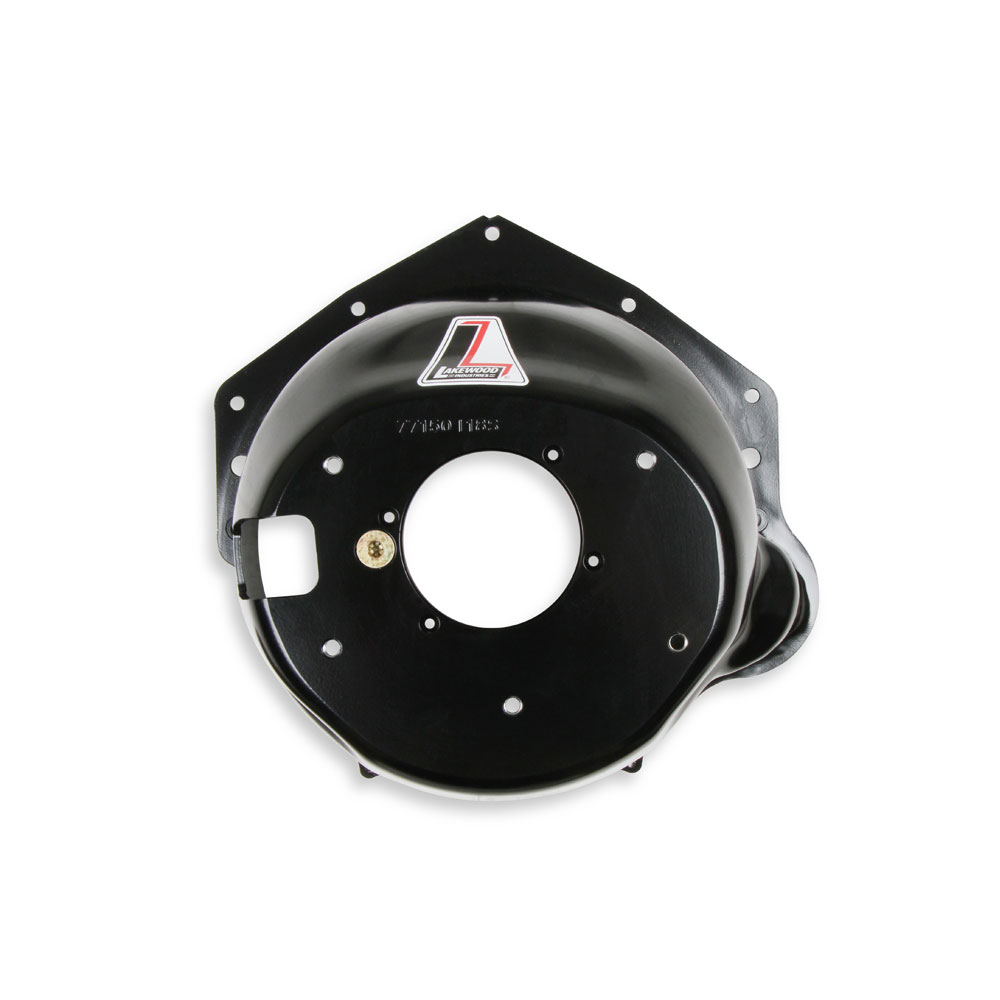

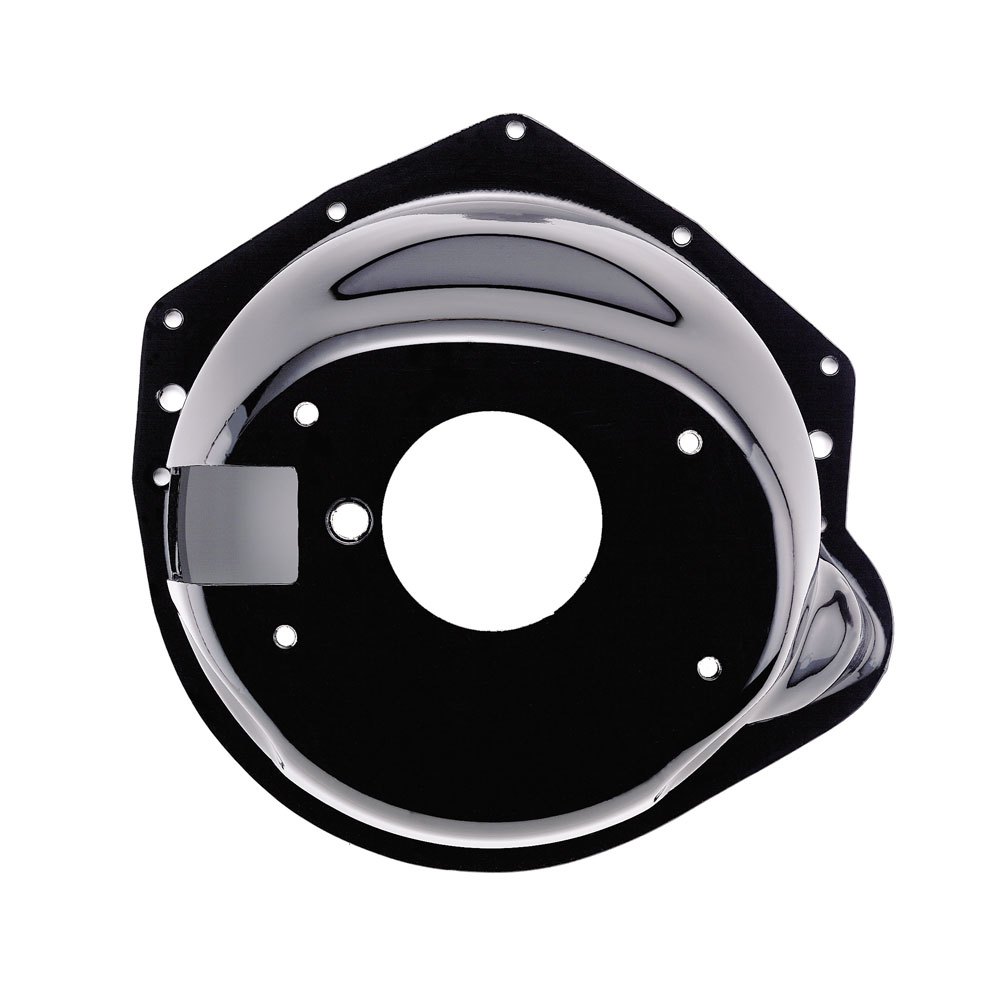

Lakewood Clutch Bellhousing 77-150; for Chevy 262 to 400 Tremec
$759.95
This item has a $72.31 oversized shipping charge.
See our shipping policy for more details.
Details
- Designed For Mechanical Fork Linkage
- Hydroformed From Premium Quality Steel
- Bellhousing Depth: 6.312 in

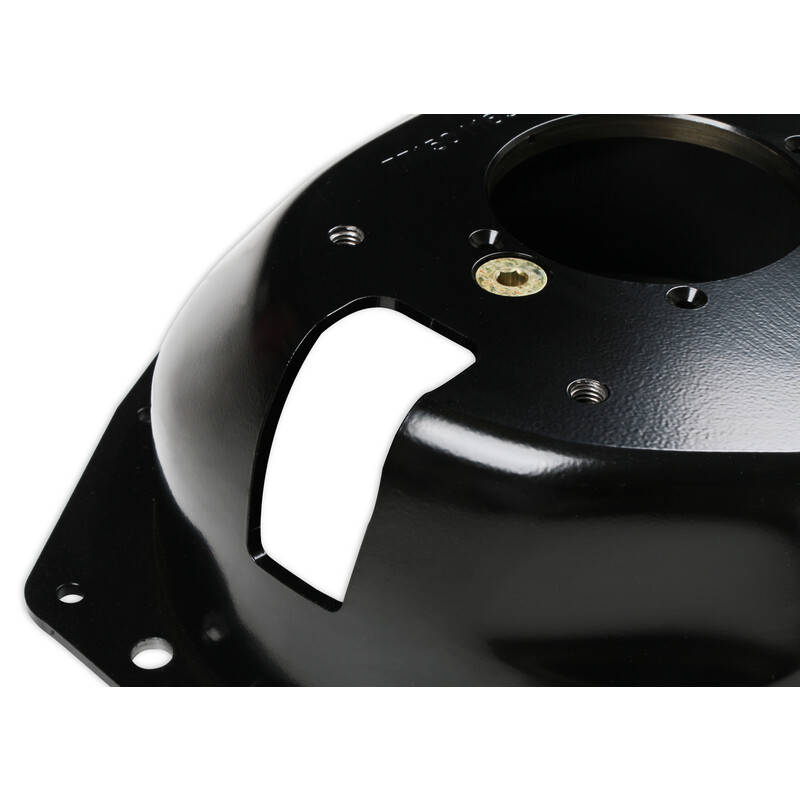

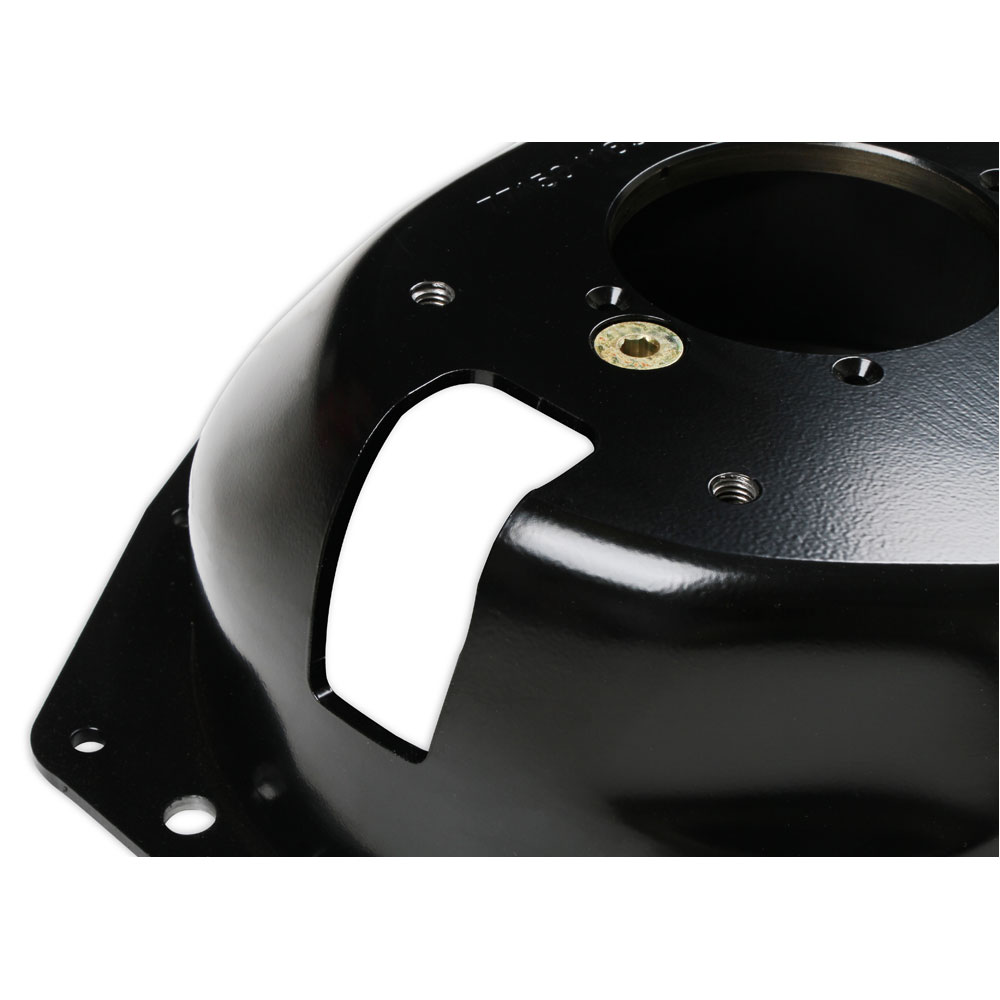

- Clutch Fork Opening: 2.5 In X 3.75 In
- Transmission Bore Diameter 4.684 In
- Made In The USA
- Transmission Bore Diameter 4.684 In
- Made In The USA
Product Description
The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is designed to fit GM full and midsized vehicles from 58 - 87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.
Specifications
- Make:
- Chevy
- Engine:
- 262 to 400
- Transmission:
- Tremec
- Color:
- Black
- SFI Certification:
- Non SFI
- Fits Clutch Size(s):
- 11.000 in.
- Clutch Operation:
- Hydraulic or GM Mechanical
- Fits Flywheel(s):
- 153 or 168 Tooth
- Bellhousing Depth:
- 6.300 in.
- Transmission Bore Diameter:
- 4.685 in.
