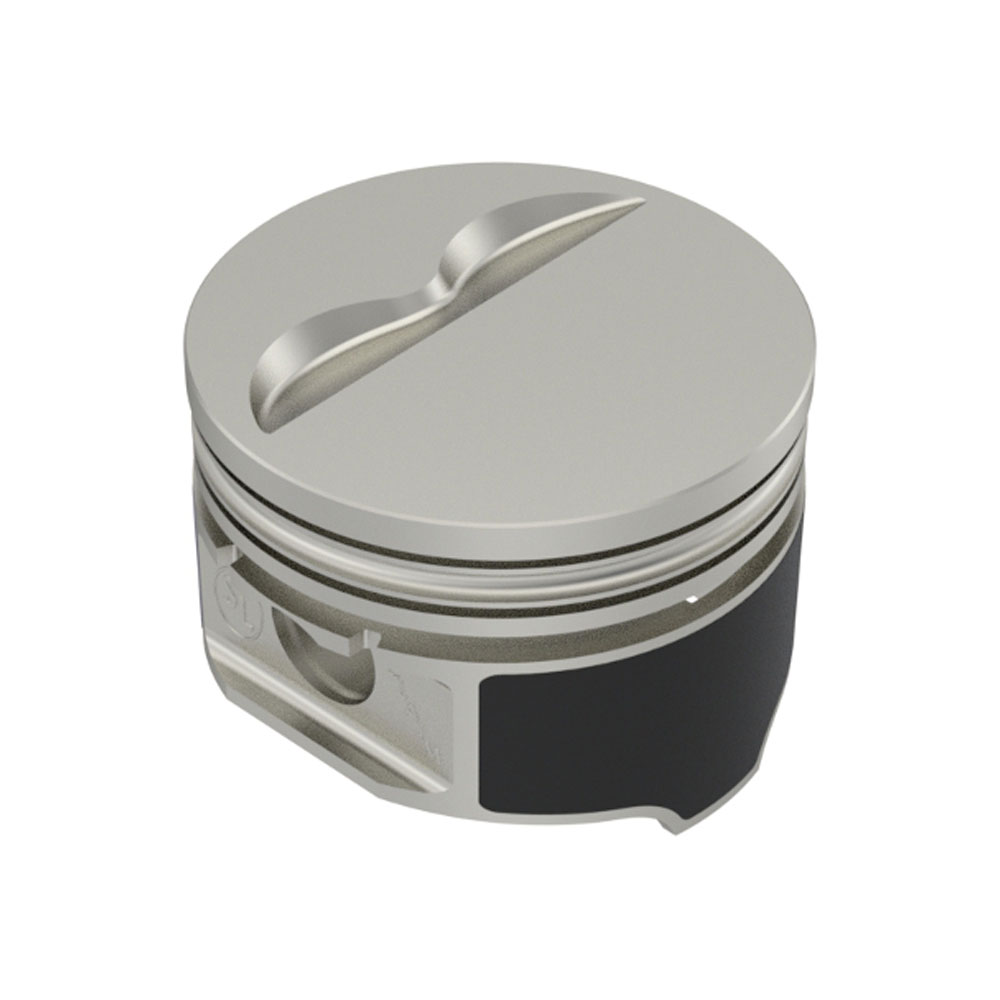

KB Pistons Piston S9902HC.STD; Claimer 4.000 in. 5.00 cc Flat Top (2V) for 1958 to 2007 Chevy 350
$67.97
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Specifications
- Piston Series:
- Claimer
- Year:
- 1958 to 2007
- Make:
- Chevy
- Engine:
- 350
- Bore:
- 4.000 in.
- Stroke:
- 3.480 in.
- Rod Length:
- 5.700 in.
- Compression Height:
- 1.565 in.
- Crown Volume:
- 5.00 cc Flat Top (2V)
- Cylinder Head Volume to Calculate Compression Ratio:
- 62.00 cc
- Compression Ratio:
- 10.7:1
- Pin Diameter:
- 0.927 in.
- Piston Material:
- Cast 390 Hypereutectic Alloy
- Ring Lands:
- 5/64, 5/64, 3/16 in.
- Second Ring Material:
- Press Fit or Floating
- Notes:
- 2 symmetrical valve reliefs, centered pin. Coated skirt. Now supplied with lockrings so the piston can run either full floating or press fit.
- Quantity:
- Sold As Each
