Photo for ICT Billet Clutch Bellhousing 551001-GEN2; Bellhousing Adapter for GM LS Gen 2 JK

ICT Billet Clutch Bellhousing 551001-GEN2; Bellhousing Adapter for GM LS Gen 2 JK

$769.99

Part #: 551001-GEN2

Brand: ICT Billet

UPC: 840117202443

Estimated Ship Date: This part is unavailable with no ETA

This item has a $37.93 oversized shipping charge.
See our shipping policy for more details.

Product Description

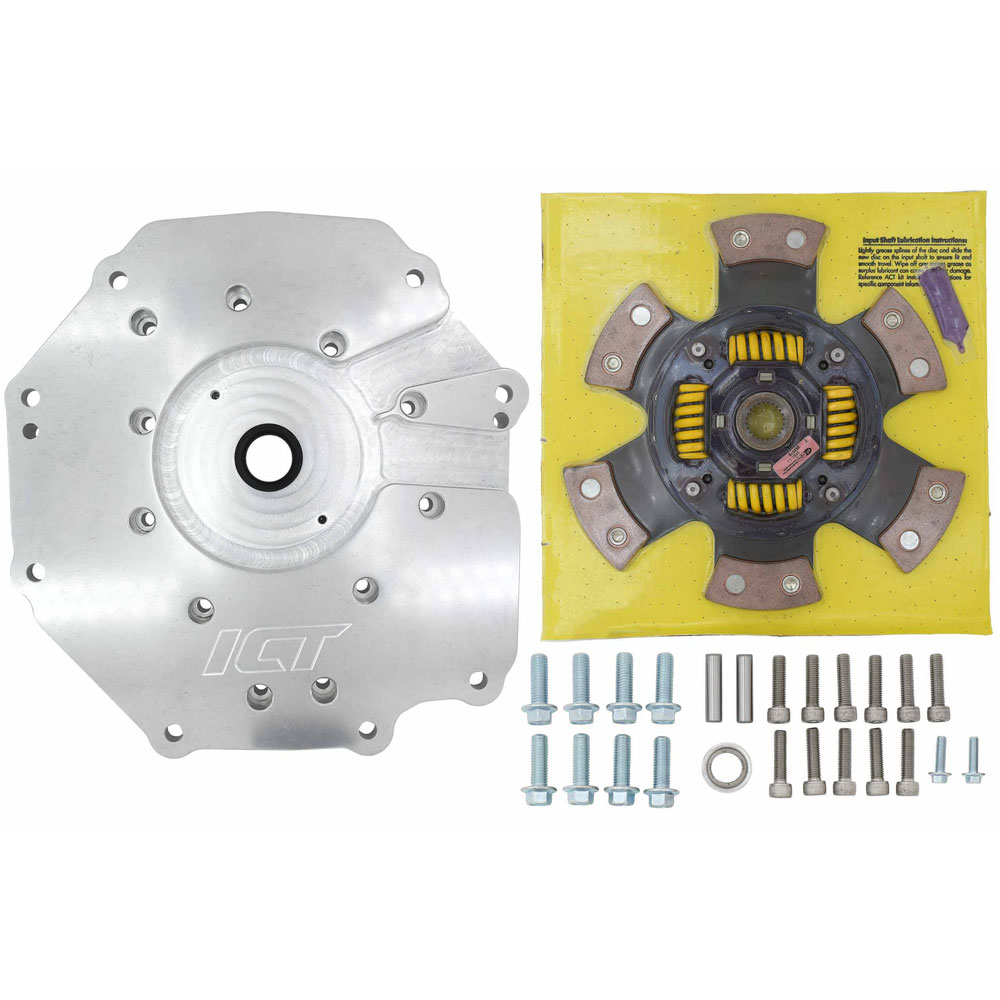

LS Engine to Nissan Gen 2 JK Transmission Bellhousing Adapter Plate - Clutch Disc Kit   Fits: GM LS Series Engines, Gen 2 JK Transmission Allows the ability to install the Nissan JK Transmission onto a GM LS engine with minimal modification Uses all standard F-Body LS T56 Flywheel - Pressure Plate - Bellhousing components Compatible with Nissan 350Z/G35 6-speed Transmissions from 2007 and up years Allows transmission and clutch servicing without removing engine in most applications Package includes: Bellhousing Adapter Plate, Pilot Bushing, Clutch Disk, Alignment Tool and Mounting Hardware Made from aerospace-grade billet aluminum Made in America NOT compatible with Generation 1 CD009 Transmissions from 2003-2006 350Z/G35 applications - See 551001-GEN1 Adapter Kit To verify Transmission Generation, Measure input shaft bearing OUTSIDE DIAMETER  Generation 1 = 3.937 or 100mm  &  Generation 2 = 3.543 or 90mm Modification to transmission entails cutting/removing OEM Bellhousing and OEM front bearing cover from transmission to allow adapter plate installation Adapter plate will take place of front bearing cover on transmission Standard T56 Bellhousing will bolt to adapter plate Installer must verify bellhousing/adapter plate alignment is within .005" during insatllation to prevent bearing side-loading  -  OFFSET DOWELS MAY BE NECESSARY TO ENSURE PROPER ALIGNMENT WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Clutch Bellhousing Series:
Bellhousing Adapter
Make:
GM
Engine:
LS
Transmission:
Gen 2 JK
Material:
Aluminum
Color:
Natural
SFI Certification:
No
Includes Mounting Hardware:
Yes
Fits Clutch Size(s):
Uses Standard F Body T56
Fits Flywheel(s):
Uses Standard F Body T56
Quantity:
Sold As Kit
