ICT Billet Clutch Bellhousing 551001-GEN2; Bellhousing Adapter for GM/Nissan LS Gen 2 JK

LS Engine to Nissan Gen 2 JK Transmission Bellhousing Adapter Plate - Clutch Disc Kit

Fits: GM LS Series Engines, Gen 2 JK Transmission

• Allows the ability to install the Nissan JK Transmission onto a GM LS engine with minimal modification
• Uses all standard F-Body LS T56 Flywheel - Pressure Plate - Bellhousing components
• Compatible with Nissan 350Z/G35 6-speed Transmissions from 2007 and up years
• Allows transmission and clutch servicing without removing engine in most applications

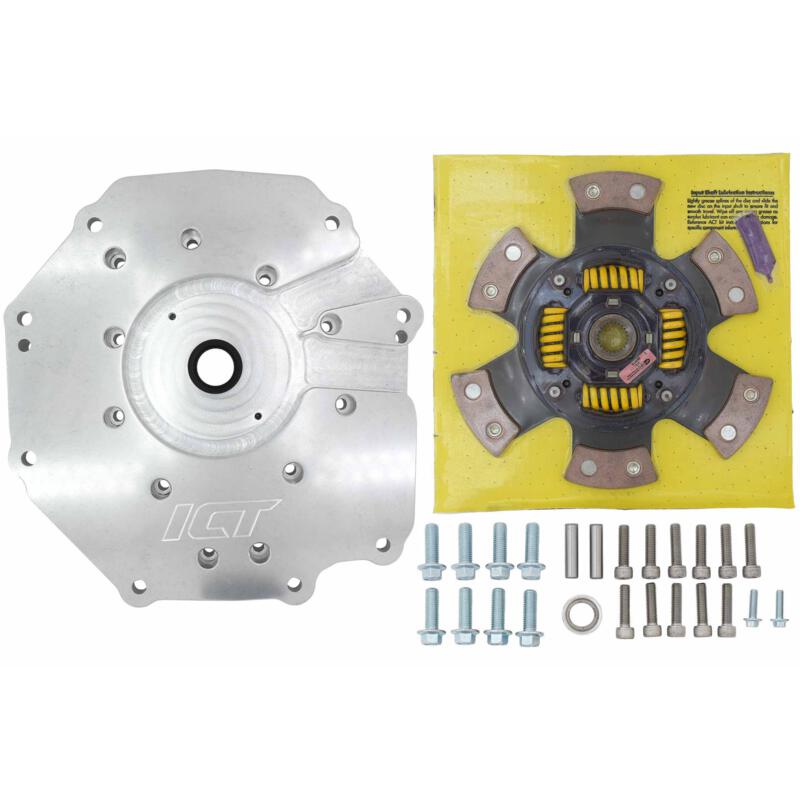

• Package includes: Bellhousing Adapter Plate, Pilot Bushing, Clutch Disk, Alignment Tool and Mounting Hardware
• Made from aerospace-grade billet aluminum
• Made in America
• NOT compatible with Generation 1 CD009 Transmissions from 2003-2006 350Z/G35 applications - See 551001-GEN1 Adapter Kit
• To verify Transmission Generation, Measure input shaft bearing OUTSIDE DIAMETER
  • Generation 1 = 3.937 or 100mm  &  Generation 2 = 3.543 or 90mm

• Modification to transmission entails cutting/removing OEM Bellhousing and OEM front bearing cover from transmission to allow adapter plate installation
• Adapter plate will take place of front bearing cover on transmission
• Standard T56 Bellhousing will bolt to adapter plate
• Installer must verify bellhousing/adapter plate alignment is within .005" during insatllation to prevent bearing side-loading  -  OFFSET DOWELS MAY BE NECESSARY TO ENSURE PROPER ALIGNMENT
