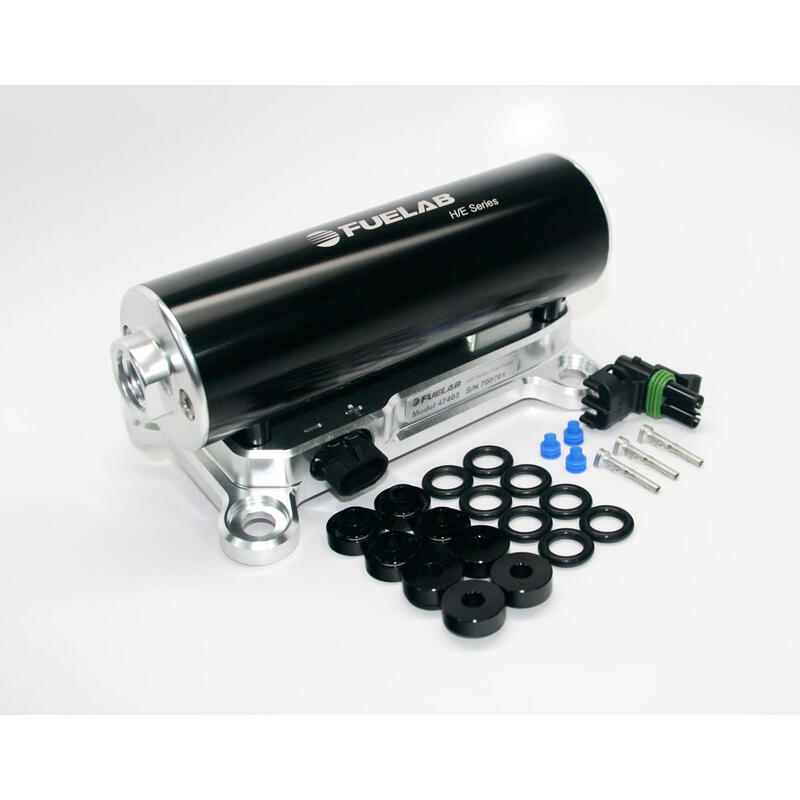

Fuelab Fuel Pump 47401; H/E Series Twin Screw 66 GPH @ 45 PSI Black Anodized Billet Aluminum Gasoline, E-85, Methanol, Diesel

View the full image

Price:	$698.13

Brand:

Fuelab

SKU:

FUE47401

UPC:

845096015107

Box Dimensions:

10.5 × 4.25 × 4.25 in

Box Weight:

4 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Series:

H/E Series Twin Screw

Bracket Finish:

Natural

Bracket Material:

Billet Aluminum

Compatible Fuels:

Gasoline, E-85, Methanol, Diesel

Volume (Standard Pressure):

66 GPH @ 45 PSI

Fuel Pump Material:

Billet Aluminum

Fuel Pump Finish:

Black Anodized

Inlet Port:

-08 ORB Female

Horsepower Rating:

625 HP

Bypass:

Includes Fuel Level Sending Unit:

Includes Seals:

Includes Strainer:

Includes Mounting Bracket:

Integrated

Notes:

Requires bypass regulator

Quantity:

Sold As Each

Compatible with gasoline, diesel, methanol, and ethanol
Twin Screw Rotor Pumping Mechanism
125PSI Max Operating Pressure
625HP power support at continuous speed, no speed control required
Higher efficiency means less current draw and less noise
Superior Priming Capabilities
Greater resistance to cavitation (vapor lock)
Backed by a 2-year limited warranty
Lightweight super-efficient DC brushless motor to minimize current draw
Powerful high flux density Neodymium rare earth magnets
No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
Wet motor design, no dynamic shaft seals that can wear out
8 to 16 volt vehicle electrical system compatibility
No expensive voltage regulators or pump controllers required
Continuous duty motor speed
Compact, lightweight design, less than 3lbs. Overall length 7.39”, diameter 3.27” including mounting base
Billet Aluminum Construction with anodize per MIL-A-8625, Type II
Integrated Controller with Sealed Electrical Connector
Integrated Dampened Mounting System for quick and compact installation
Long Life, multi-fuel compatible Fluorosilicone static seals
Accepts standard or port style -8AN fittings

Fuelab continues to lead the way in fuel pump innovation. Our H/E Series of brushless twin screw pumps represent a giant leap in efficiency and reliability. These pumps use a lightweight, DC brushless motor to reduce current draw to incredibly low levels while maintaining flow at pressures up to 125psi. Combined with a twin screw rotor pumping mechanism, they offer superior priming capabilities, improved resistance to cavitation, and fuel compatibility with gasoline, diesel, methanol and ethanol fuels.

Compatible with 12v and 16v electrical systems. The 474xx series is a billet aluminum external only pump with integrated controller. The new 484xx series is an in-tank or external version that can be run by existing vehicle outputs for brushless control or any of our 7200x models for external control. Choose from 250, 350, and 500 LPH flow options.
