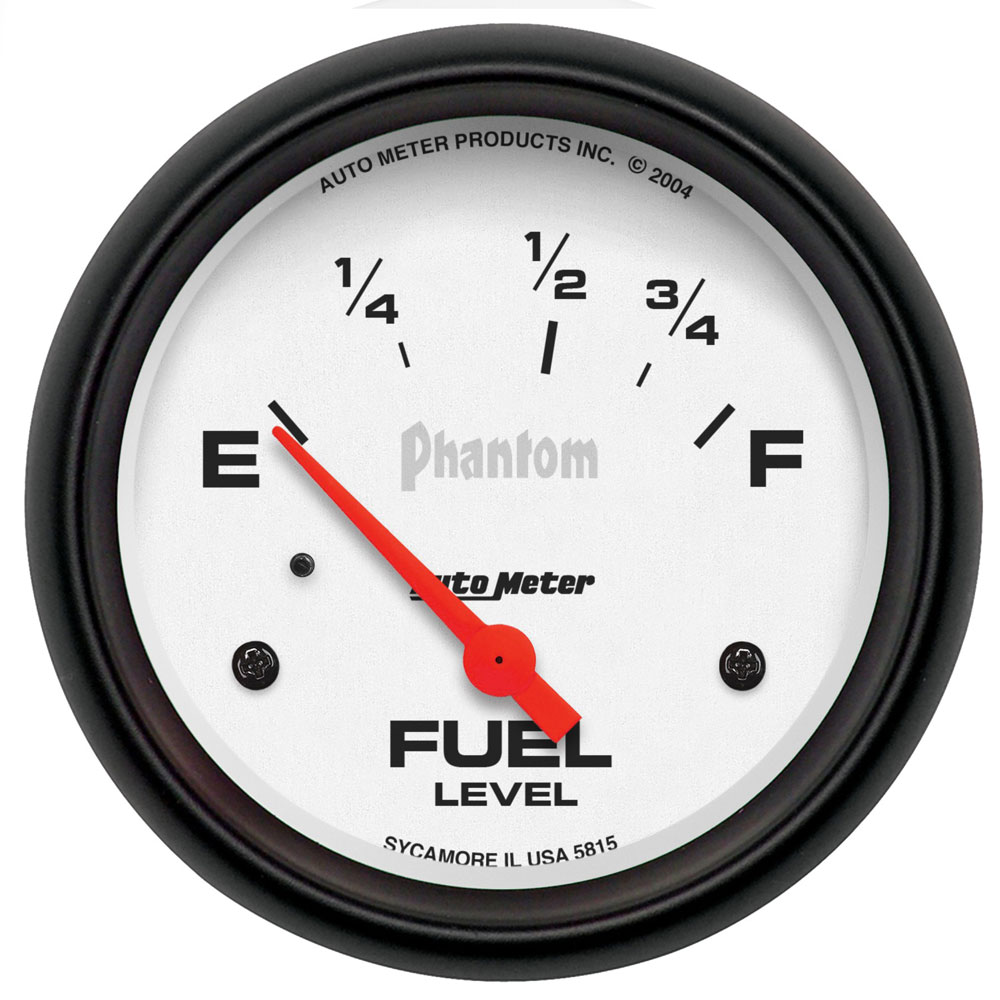

Photo for Auto Meter Fuel Level Gauge 5815; Phantom Fuel Level 73 (E) to 10 Ohms (F) 2-5/8 in. Full Electric

Auto Meter Fuel Level Gauge 5815; Phantom Fuel Level 73 (E) to 10 Ohms (F) 2-5/8 in. Full Electric

$89.49

Part #: 5815

Brand: Auto Meter

UPC: 046074058158

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings

Product Description

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.

Specifications

Fuel Level Gauge Series:
Phantom
Gauge Type:
Fuel Level
Gauge Range:
73 (E) to 10 Ohms (F)
Gauge Size:
2-5/8 in.
Sweep:
Full
Gauge Face Color:
White
Gauge Number Color:
Black
Pointer Color:
Fluorescent Red
Bezel Color:
Black
Liquid Filled:
No
Sending Unit Type:
Electric
Meter Movement Mechanism:
Air Core
Backlit:
Yes
Quantity:
Sold As Each

Videos

Tech Resources

  • AUM2650-1858.pdf
