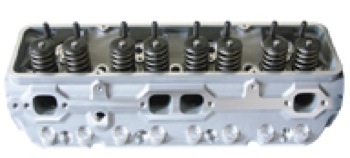

Flo-Tek Cylinder Head Assembly 102-505; 180.00 cc Aluminum 64 cc for Chevy 262 to 400
$479.00
This item has a $45.81 oversized shipping charge.
See our shipping policy for more details.
Product Description
This is where it all started! FLO-TEK's 180cc Cylinder Head for Small Block Chevrolet. The small block Chevy 180cc cylinder head was the foundation in 2007 for FLO-TEK Performance Heads. Out of the box ready to bolt on and to close the deal, and economically priced!What matters most? Three things, quality, performance and price! Making FLO-TEK 180 cc small block Chevy head the answer!The features for the FLO-TEK 180 fl at tappet include state of the art casting, 180cc intake ports that are specifi cally designed for outstanding versatility, and 64cc combustion chamber. These are the most affordable high quality aluminum cylinder heads on the market. The FLO-TEK Performance Cylinder Heads series are a line of heads designed by Tri-State Cylinder Head for maximum out-of-the-box horsepower. Standard features are aluminum alloy, phosphorous bronze valve guides, high nickel valve seats, ends milled and drilled for accessories, and a straight or angle spark plug.FLO-TEK inspects each shipment of aluminum heads assuring the customer that they are receiving the best product for the money. 100 percent assembled in the USA!
Specifications
- Make:
- Chevy
- Engine:
- 262 to 400
- Material:
- Aluminum
- Combustion Chambers:
- 64 cc
- Intake Valve Diameter:
- 2.020 in.
- Exhaust Valve Diameter:
- 1.600 in.
- Spark Plug Angle:
- Straight
- Intake Runners:
- 180.00 cc
- Exhaust Runners:
- 62 cc
- Port Style:
- Rectangular
- Cam Type Recommended:
- Mechanical Flat Tappet
- Max Valve Lift:
- 0.550 in.
- Closed Spring Pressure:
- 130 lbs. @ 1.750 in.
- Open Spring Pressure:
- 310 lbs. @ 1.250 in.
- Spring Rate:
- 360 lbs/in.
- Coil Bind:
- 1.160 in.
- Valve Spring Retainer Material:
- Chromoly
- Quantity:
- Sold As Each
