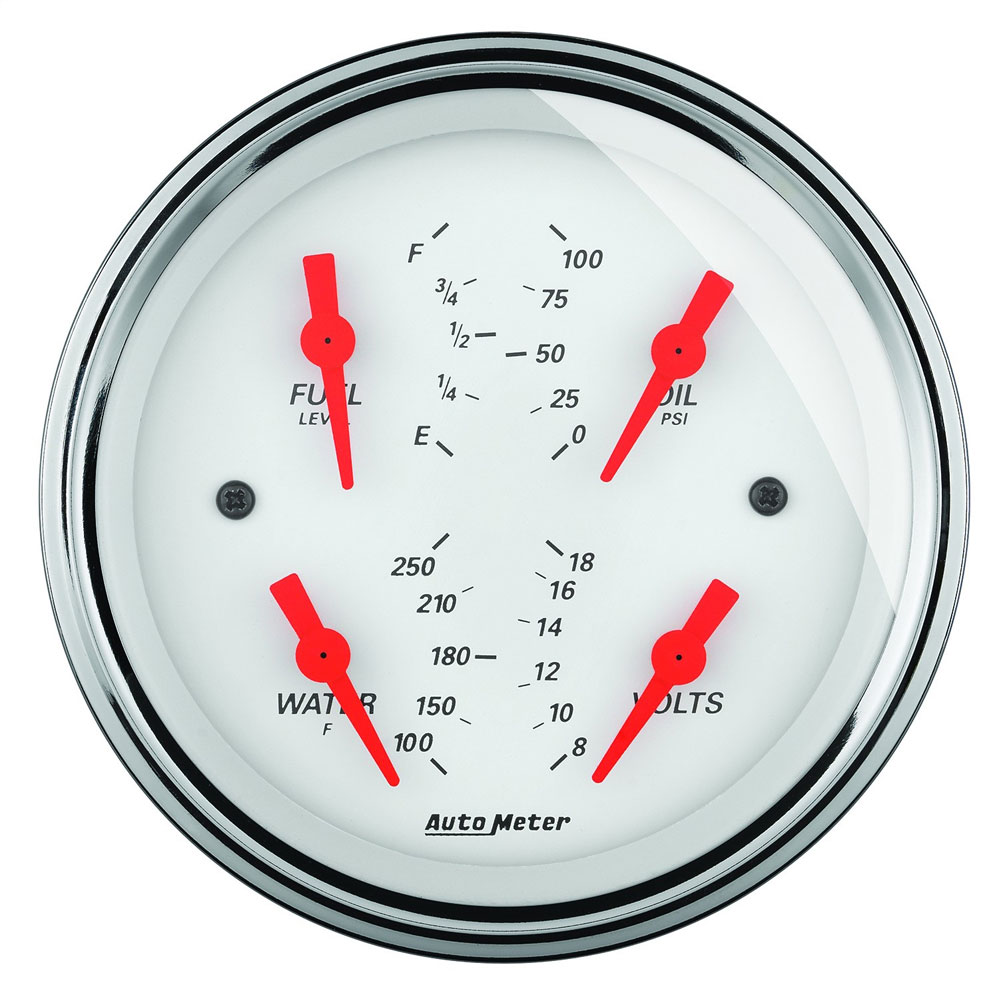

Photo for Auto Meter Electronic Multi Purpose Gauge 1319; Arctic White 5.000 in. Electric

Auto Meter Electronic Multi Purpose Gauge 1319; Arctic White 5.000 in. Electric

$261.16

Part #: 1319

Brand: Auto Meter

UPC: 046074013195

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle
  • Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Product Description

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 0 Ohms Empty To 90 Ohms Full (Compatible With Amid 60S Through Mid 90S Gm Fuel Level Senders).

Specifications

Electronic Multi Purpose Gauge Series:
Arctic White
Gauge Size:
5.000 in.
Gauge Face Color:
White
Pointer Color:
Fluorescent Red
Bezel Color:
Chrome
Sending Unit Type:
Electric
Meter Movement Mechanism:
Air Core
Backlit:
No
Quantity:
Sold As Each

Videos

Tech Resources

  • AUM2650-1178.pdf
