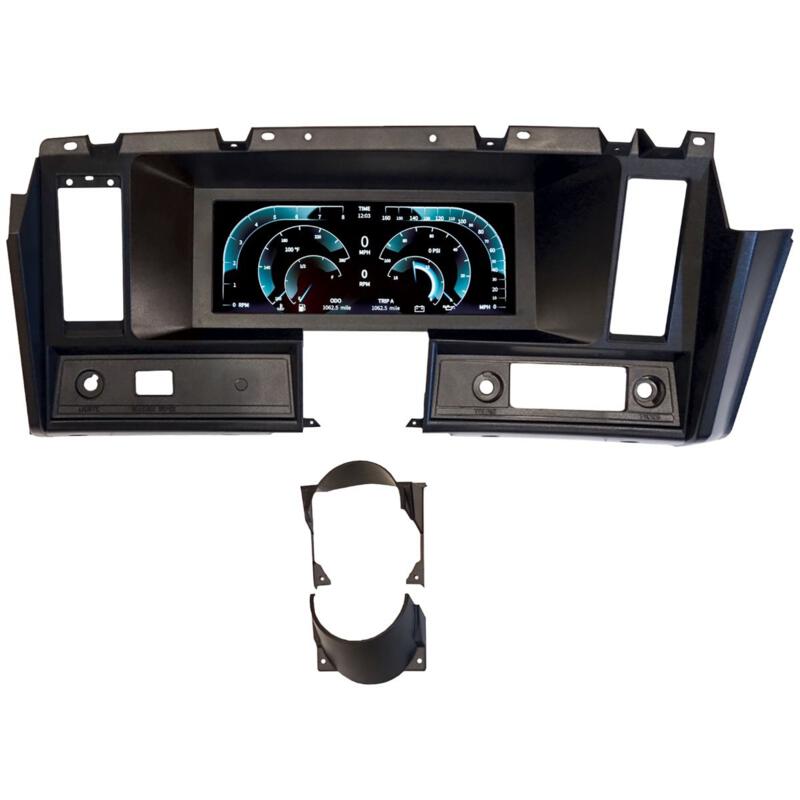

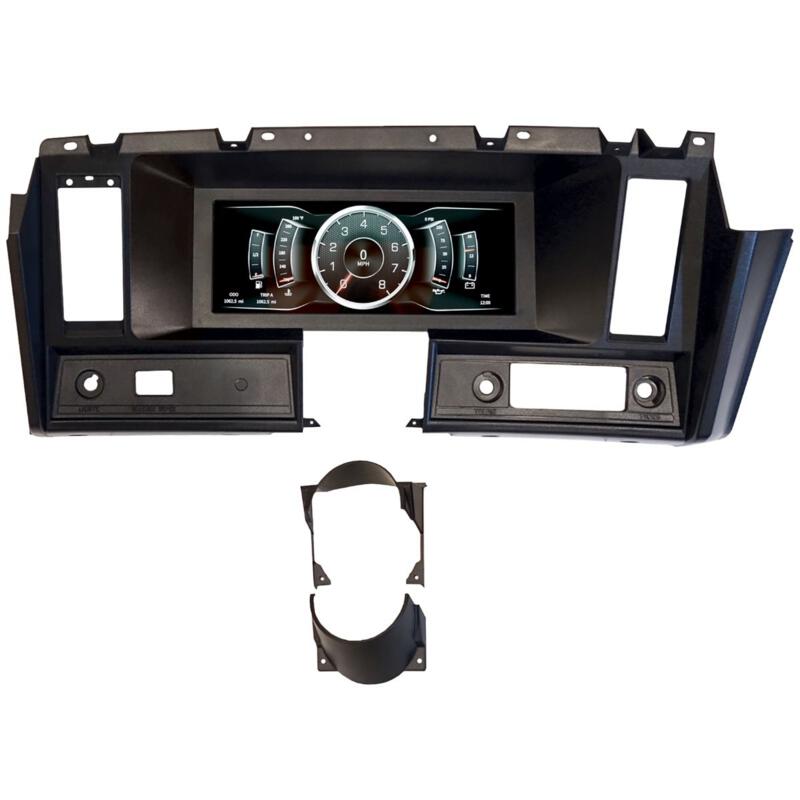

Auto Meter Digital Dash Display 7008; Invision LCD Dash Kit Programmable Digital LCD for 1969 Chevy Camaro

$1,218.33

Part #: 7008

Brand: Auto Meter

UPC: 046074070082

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Direct-fit instrumentation solution for 1969 Chevrolet Camaro that monitors speedometer, tachometer, water temperature, oil pressure, fuel level, and volts all in a high resolution and colorful display
  • 12.3? LCD display with four user selectable screens
  • Integrated notifications for high beams and turn signals as well as instrument warnings and a user selectable warning light
  • Includes steering column neck sleeves, universal wiring harness, and sending units for water temperature and oil pressure as well as a joystick for dash customization
  • Helps identify critical parameters with visual or audible alarms - low fuel level/oil pressure/voltage and high water temperature
  • Displays output programmable for imperial or metric measurements
  • Requires no cutting, drilling or modification to factory pieces
  • Speedometer easily calibrates to OEM or aftermarket vehicle speed sensors and the tachometer is capable of calibrating to many engine types (1-12 cylinders)
  • User-selectable fuel level resistance ranges designed for OEM and aftermarket sending units

Product Description

AutoMeter's enormously popular InVision line of products continues to grow with a new application available for the 1969 Chevy Camaro! This complete direct-fit dash system comes with everything needed to monitor the most vital parameters on your vehicle - speedometer, tachometer, oil pressure, water temperature, fuel level, and voltmeter. All instruments are displayed on a high-resolution and vivid 12.3" LCD screen. With everything you need from integrated turn signals and high beam indicators to a universal wire harness to sending units for temperature and pressure - this is the perfect instrumentation solution for your 69 Camaro!

Specifications

Digital Dash Display Series:
Invision LCD Dash Kit
Year:
1969
Make:
Chevy
Model:
Camaro
Display Type:
LCD
Illumination Type:
Digital
Illumination Color:
Multicolor
Programmable or Non-Programmable:
Programmable
Function(s):
Tach, Speedometer, Oil Pressure, Water Temp, Volts, Fuel Level, Clock, Warning Lights, Turn Signals, HigH-Beams
Housing Material:
Plastic
Housing Finish:
Black
Includes Wiring Harness:
Yes
Includes Sensors:
Oil Pressure, Water Temp
Includes Mounting Hardware:
No
EFI System Compatibility:
Yes
OEM System Compatibility:
Yes
Data Logging:
No
Includes Software:
No
Notes:
Speed Sensor NOT Included
Quantity:
Sold As Kit
