Aeromotive Electric Fuel Pump 11186; 1700 lbs/hr. @ 40 PSI 1,850 lbs/hr. @ 9 PSI Black Billet Aluminum Alcohol, E85, Gasoline, Race Gas
$1,416.50
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Supports up to 3400 FWHP – naturally aspirated EFI, up to 2600 FWHP – forced air induction EFI, Up to 3600 FWHP – naturally aspirated Carbureted, Up to 2700 FWHP – forced air induction Carbureted
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional external mount pumps.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
- Extended service life in methanol and ethanol.
- New integral spur-gear pumping mechanism.
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- ORB-12 inlet and ORB-10 outlet ports.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
Product Description

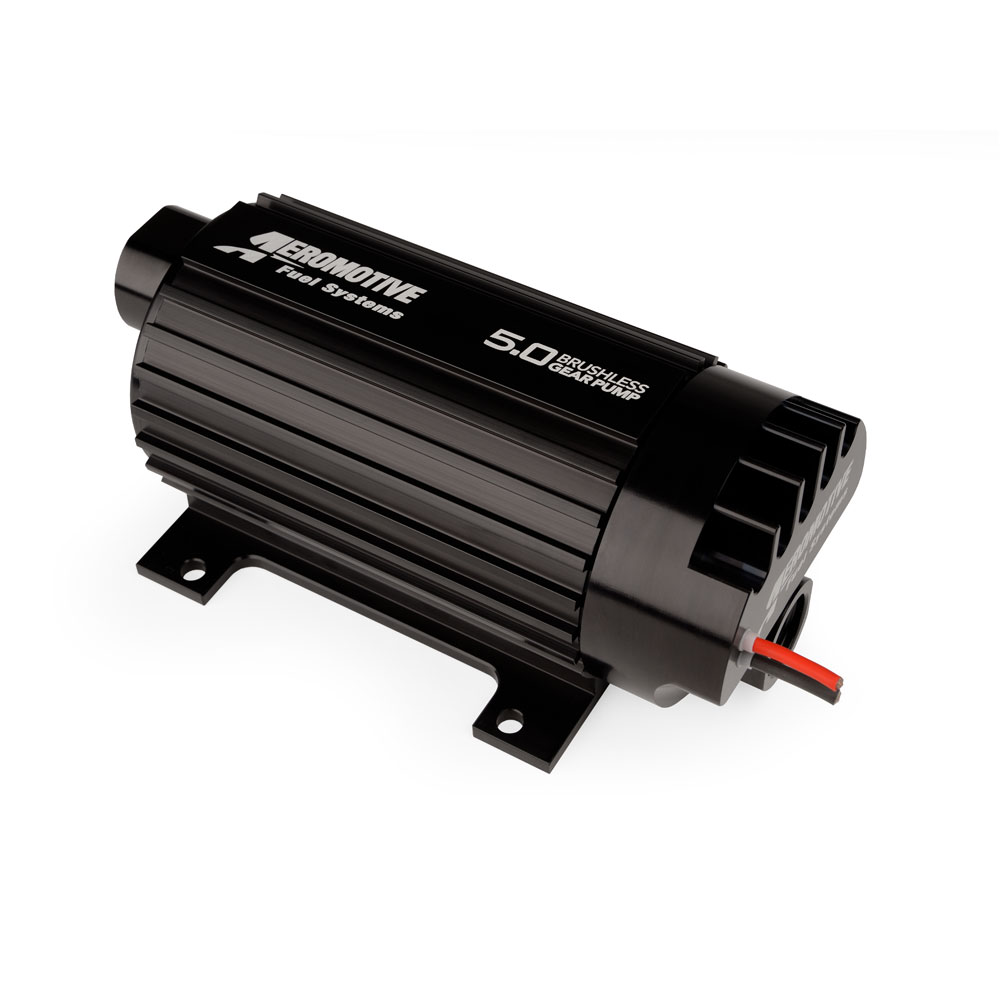

5.0 Brushless Spur Gear Pump - Signature with mounting feet. Ground Shaking Performance - Advanced Technology. Fuel injected engines: up to 3400 FWHP naturally aspirated and up to 2600 FWHP forced air induction. Carbureted engines: up to 3600 FWHP naturally aspirated and up to 2700 FWHP forced air induction. E85 Compatible, reduce max FWHP by 30%. Lighter than the traditional external mount pumps. Reduced current draw at higher, EFI pressures. Extended service life in methanol and ethanol. New integral spur-gear pumping mechanism. 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost. Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability. ORB-12 inlet and ORB-10 outlet ports. EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts. Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts. Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells. WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WARNING: This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specifications
- Compatible Fuels:
- Alcohol, E85, Gasoline, Race Gas
- Volume (Standard Pressure):
- 1700 lbs/hr. @ 40 PSI
- Fuel Pump Material:
- Billet Aluminum
- Fuel Pump Finish:
- Black
- Inlet Port:
- -12AN ORB Female
- Outlet Port:
- -10AN ORB Female
- Horsepower Rating:
- 3400 HP (EFI) 3600 HP (Carb)
- Bypass:
- No
- Includes Fuel Level Sending Unit:
- No
- Includes Seals:
- No
- Includes Strainer:
- No
- Includes Mounting Bracket:
- Yes
- Bracket Material:
- Aluminum
- Bracket Finish:
- Black
- Volume (Low Pressure)
- 1,850 lbs/hr. @ 9 PSI
- Quantity:
- Sold As Each
