Derale Transmission Oil Pan 14210; Cooling Pan Black Stamped Steel for Chrysler Torqueflight A518, Torqueflight A618, Torqueflight A727
$244.85
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Transmission Cooling Pan, Reduces Fluid Temps up to 50°F, Increase Capacity
Product Description

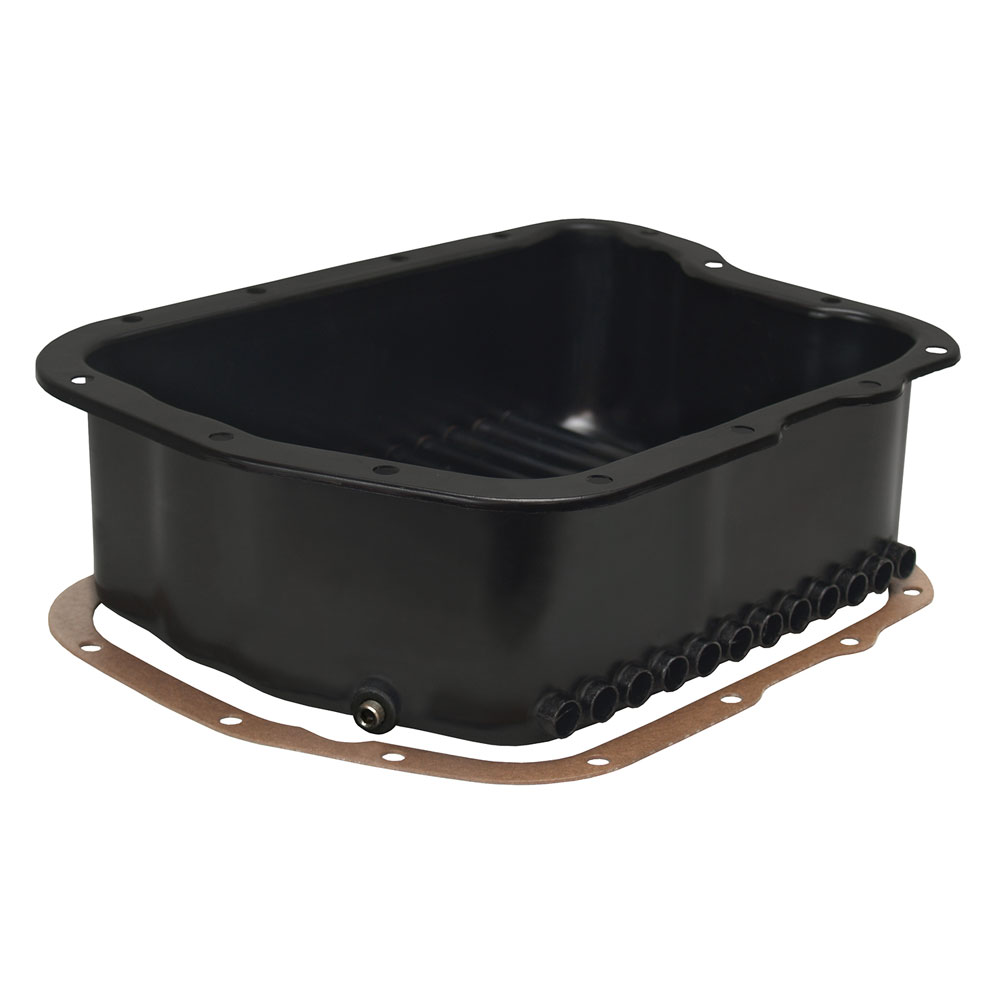

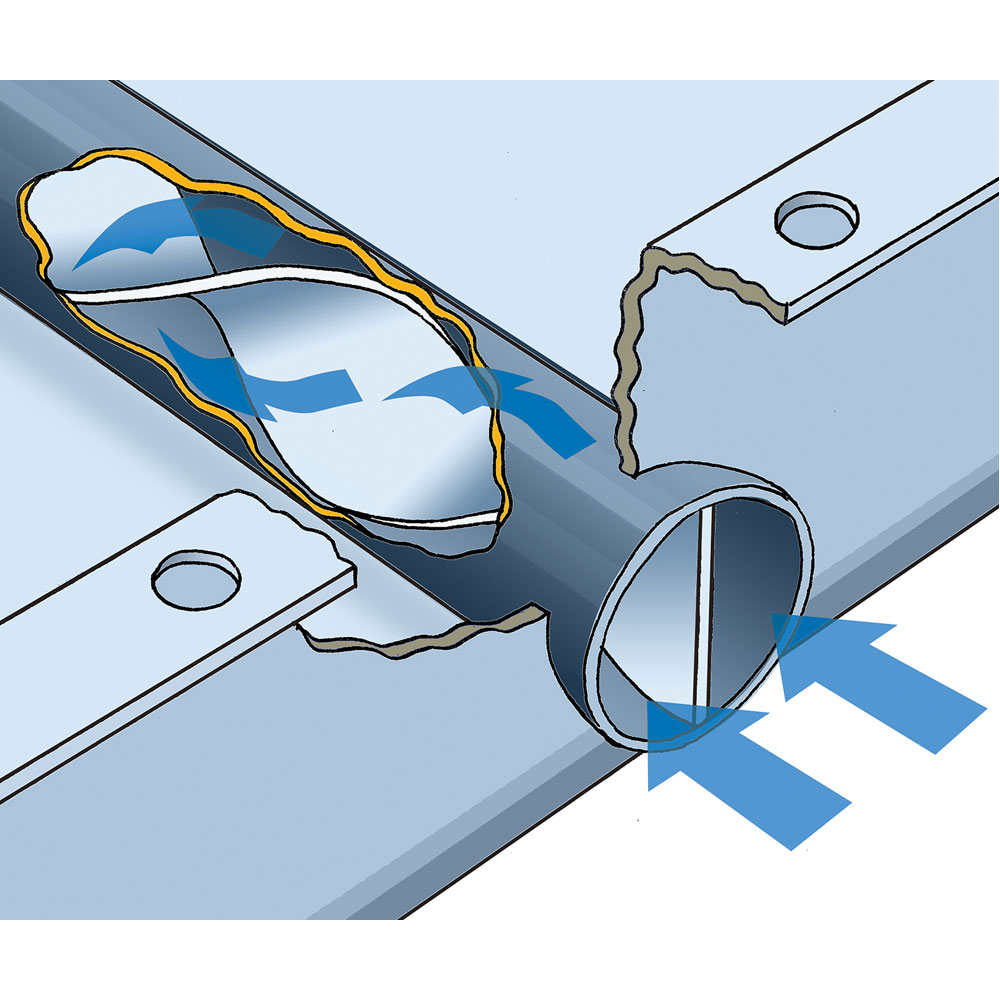

Derale's Transmission Cooling Pan #14210 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Chryslers popular Torqueflight automatic family including the A727, later A518 (46RH, 46RE) and A618 (47RH, 47RE, 48RE) models and several model derivatives, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.
Specifications
- Transmission Oil Pan Series:
- Cooling Pan
- Make:
- Chrysler
- Transmission:
- Torqueflight A518, Torqueflight A618, Torqueflight A727
- Capacity Increase:
- 5 Quarts 16 oz. (A727), 2 Quarts 3 oz. (A518)
- Material:
- Stamped Steel
- Finish:
- Black

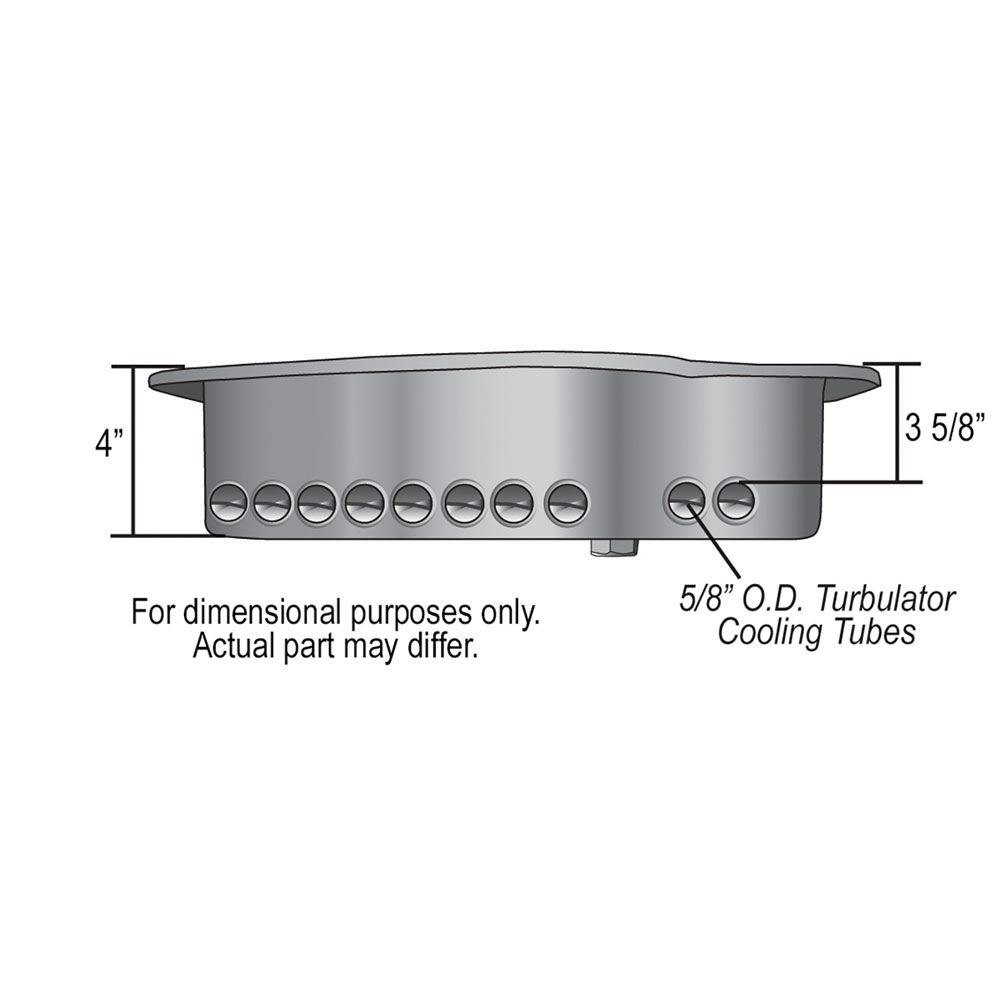

- Depth:
- 4.000 in.
- Includes Filter Extension:
- No
- Includes Gasket:
- Yes
- Includes Filter:
- No
- Includes Fasteners:
- No
- Includes Drain Plug:
- Yes
- Notes:
- Also includes 1/8 in. NPT Temp sensor bung
- Quantity:
- Sold As Each
