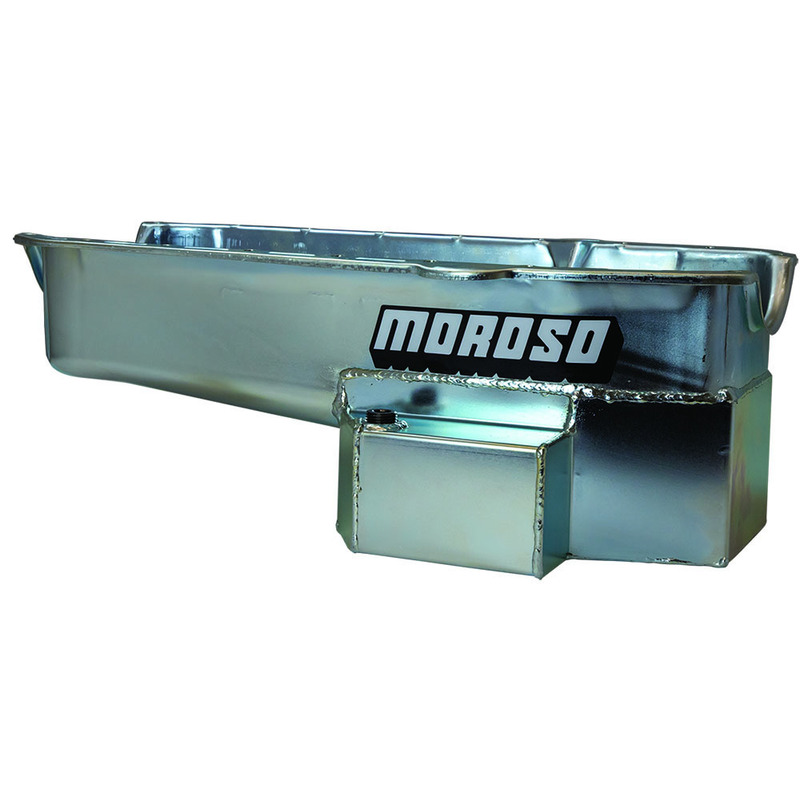

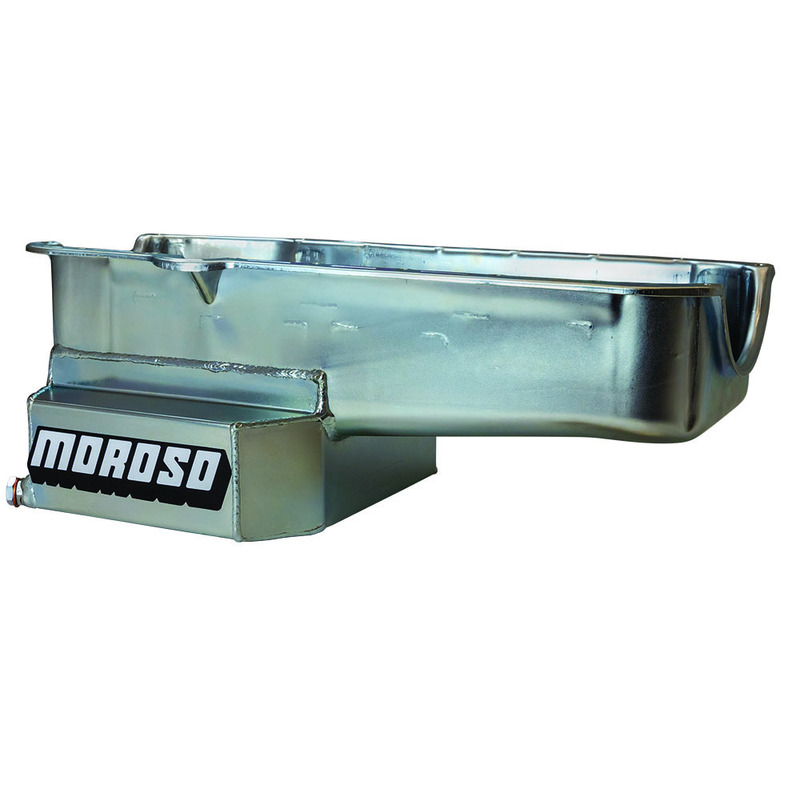

Moroso Oil Pan 21814; Wet Sump 7.00 Quarts Silver Plating for 1980-1985 Chevy Dart SHP

Price:	$451.99

Brand:

Moroso

SKU:

MOR21814

UPC:

084663218149

Box Dimensions:

22.37 × 15.26 × 8.37 in

Box Weight:

17 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Year:

1980-1985

Make:

Chevy

Engine:

Dart SHP

Material:

Steel

Capacity:

7.00 Quarts

Finish:

Silver Plating

Pan Style:

Wet Sump

Dip Stick Location:

Passenger's Side

Depth:

7.500 in.

Kick Out:

Yes

Sump Location:

Rear Sump

Baffled:

Yes

Quantity:

Sold As Each

Steel, Wet Sump, 7 Quart Capacity, 7.5" Deep, Road Race Baffled
Engine Application: SBC '80-'85 engine blocks with two piece seal/passenger side dipstick and Dart SHP Blocks
Fits: Most GM chassis (except 1962-67 Chevy II, 1967-69 F-Body, V-8 Vega and Monza)
Clears 4.125" stroke with most steel rods
Fits 4 bolt Dart, GM and Merlin main caps
3 trap door baffles, 2 runners for oil control in Road Racing, also makes an excellent Drag Race oil pan
Compatible with most starter/flywheel combinations
Has a built in crank scraper, removable screen windage tray and anti-slosh to free up horsepower
Engine Application: Pre-1980 engine blocks with two piece seal/driver side dipstick
Rear Sump is 7.5" Deep, 12" wide and 10.5" long
7.5" Deep, Road Race Baffled, Clears 4.125" Stroke, fits most GM chassis (except 1962-’67 Chevy II, V-8 Vega and Monza),
3 trap door baffles, 2 runners for oil control in Road Racing, also an excellent Drag Race oil pan
7 Quart Capacity
Steel with a clear zinc finish
PART # DESCRIPTION
21813 OIL PAN, STEEL, 7.5" DEEP, ROAD RACE BAFFLED FOR SBC PRE- 1980 ENGINE BLOCKS WITH TWO PIECE SEAL/DRIVER SIDE DIPSTICK
21814 OIL PAN, STEEL, 7.5" DEEP, ROAD RACE BAFFLED FOR SBC ’80-‘85 ENGINE BLOCKS WITH TWO PIECE SEAL/PASSENGER SIDE DIPSTICK & DART SHP Blocks
21815 OIL PAN, STEEL, 7.5" DEEP, ROAD RACE BAFFLED FOR SBC 1986 & NEWER ENGINE BLOCKS WITH ONE PIECE SEAL/PASSENGER SIDE DIPSTICK

Oil Pan, SBC, 80- 89, DART SHP Engine Blocks, 7.5" Deep, Baffled for Road Race, makes an excellent Drag Race Oil Pan, Fits Most GM chassis (except 1962-1967 Chevy II, V-8 Vega and Monza, Works up to a 4.125" Stroke with steel rods
