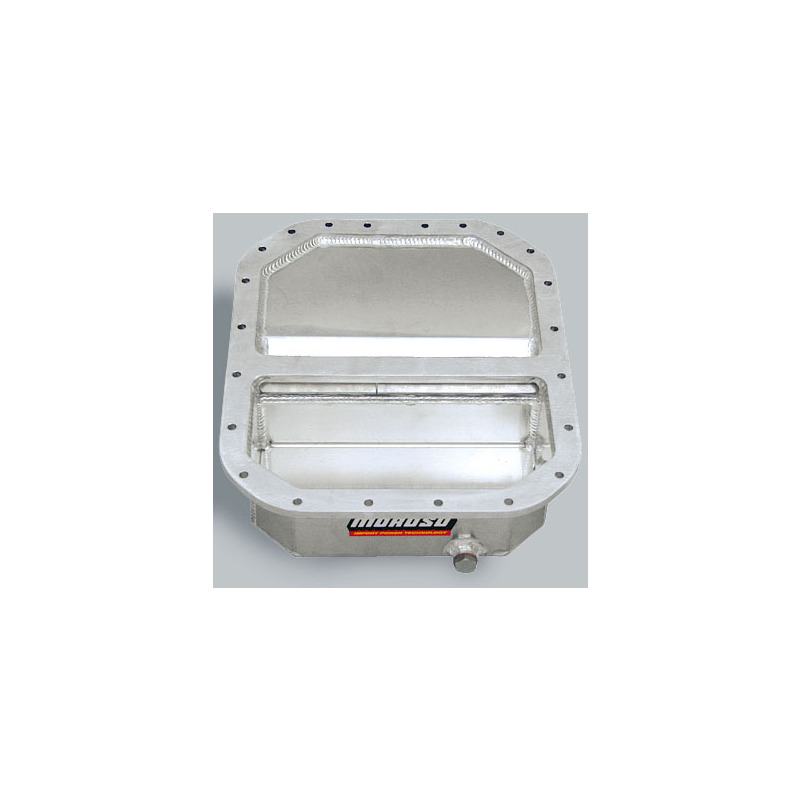

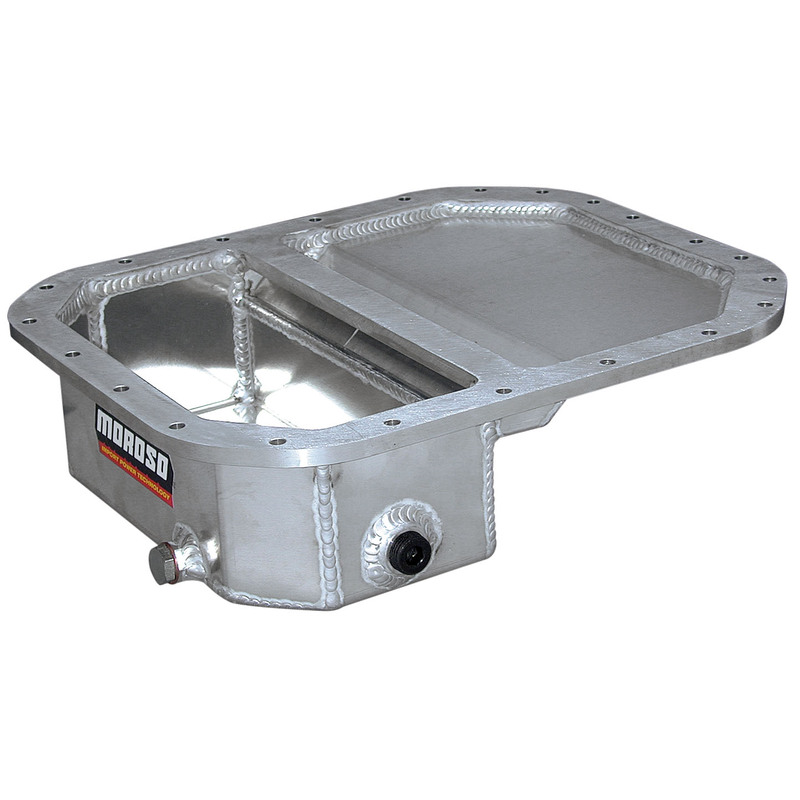

Moroso Oil Pan 20942; Drag Race Wet Sump 6.25 Quarts Clear Zinc for Mazda 1.3L 2 Rotor 13B

Price:	$534.99

Brand:

Moroso

SKU:

MOR20942

UPC:

084663209420

Box Dimensions:

24.3 × 15.5 × 8.69 in

Box Weight:

15 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Series:

Drag Race

Make:

Mazda

Engine:

1.3L 2 Rotor 13B

Material:

Fabricated Aluminum

Capacity:

6.25 Quarts

Finish:

Clear Zinc

Pan Style:

Wet Sump

Depth:

4.000 in.

Kick Out:

None

Baffled:

Yes

Includes Pickup:

Includes Windage Tray:

Includes Crank Scraper:

Includes Gasket:

Includes Hardware:

Yes

Notes:

Includes Magnetic Drain Plug; With Billet Rail and Mounting Kit

Quantity:

Sold As Each

Aluminum, Wet Sump, 6-1/4 Quart Capacity, 4" Deep
Engine Application: 13B Rotary (non FD or Renesis)
Fits: RX-3 & RX-4 models; several rotary engine conversions including 1981-'84 Toyota Starlet, 1964-'83 Toyota Corolla, 1971-'73 Datsun 1200 & others with little or no cross-member modifications; also tube chassis cars
Rugged 3/8" thick billet aluminum gasket rail with integral cross-brace serves as a girdle to greatly stengthen the entire engine assembly and reduce flexing under hard driving
Fully fabricated
Dual trap door baffles for Drag Race & Street
Enlarged sump increases capacity to 6-1/4 quarts (with stock oil cooler installed) while adding only a quarter-inch in depth to provide ample ground clearance
Includes oil temperature sensor provisions
Includes magnetic drain plug with extra copper washer and pan mounting kit with hex-drive steel studs to eliminate stripping the engine block and serrated-face flare nuts to withstand vibration
Accommodates stock pan gasket and dipstick (with modifications)

Wet Sump; 6.25 Qt.; Depth-4 in.; Dual Trap Door Baffles; Incl. Billet Rail/Magnetic Drain Plug/Mounting Kit; Mazda 13B Rotary; Alum.
